ZTR 422 - Dixon Zero-Turn Mower (1976) BLOWER/BAGGER FOR RAM 42" Parts Diagram

Zero-Turn Mower

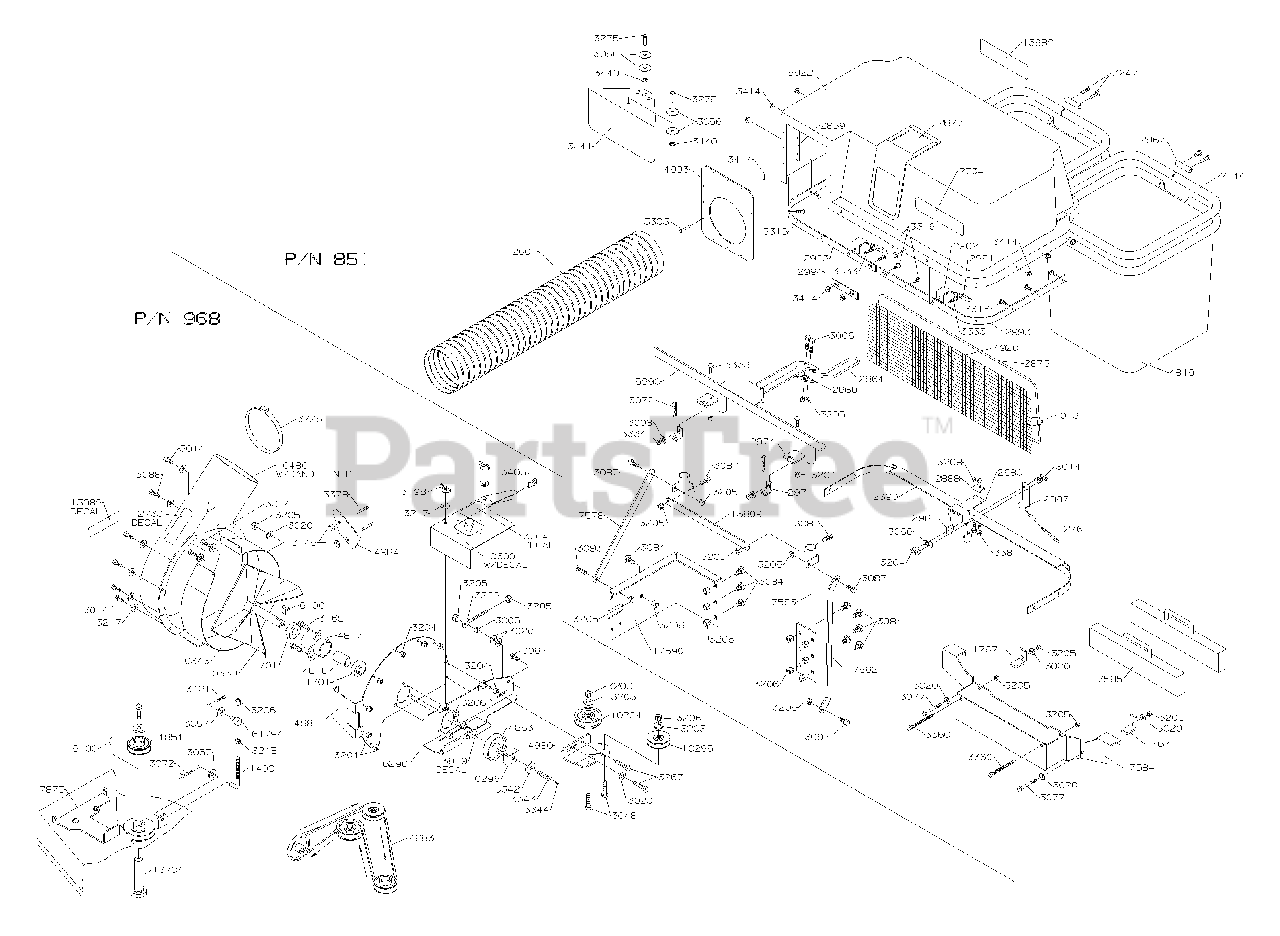

BLOWER/BAGGER FOR RAM 42" Parts Diagram

  • Title

10343

10343

SAND LINER

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

2390

2390

CATCH ANGLE

$

$

Not available

2661

2661

FLEX HOSE 60`

$

$

Not available

2733

2733

G.C.WARNING DECAL

$

$

Not available

2734

2734

G.C.STABILITY DECAL

$

$

Not available

2744

2744

BAG TUBE - SMALL

$

$

Not available

2761

2761

LATCH ROD GRIP

$

$

Not available

2860

2860

CLAMP

$

$

Not available

2864

2864

CENTER SUPPORT EXT.

$

$

Not available

2867

2867

TUBE PLUG

$

$

Not available

2869

2869

SEAL PLATE

$

$

Not available

2873

2873

VENT FRAME

$

$

Not available

2877

2877

WINDOW

$

$

Not available

2887

2887

G.C. CATCH HANDLE

$

$

Not available

2888

2888

VENT SCREEN RET CLIP

$

$

Not available

2971

2971

UPPER HINGE

$

$

Not available

2974

2974

LOWER HINGE

$

$

Not available

2980

2980

REAR CLIP ASSEMBLY

$

$

Not available

2981

2981

CLIP COVER 1-1/2

$

$

Not available

2982

2982

CLIP ASSEMBLY

$

$

Not available

2993

2993

REINFORCE STRAP

$

$

Not available

2994

2994

STRAP MOUNT

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3275

3275

R/B 3275 5/16 FLAT HD RIVET

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3333

3333

1/4-20X1 CARR BOLT

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3360

3360

5/16-18X4HHBG5 ALTHD

$

$

Not available

3378

3378

POP RIVET 5/32 STEEL

$

$

Not available

3381

3381

10-24 X 1 HHB GR2

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3414

3414

1/4-20 FLANGE NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3440

3440

PUSH NUT 5/16

$

$

Not available

3441

3441

GC DEFLECTOR

$

$

Not available

3704

3704

CAUTION DECAL-BLOWER

$

$

Not available

3725

Dixon 3725

HOSE CLAMP

$

$

Not available

13809

13809

SUPPORT ZEET G.C.

$

$

Not available

3819

3819

DECAL, ROUTING 42"

$

$

Not available

4013

4013

NYLON WIRE TIE

$

$

Not available

4817

4817

HUB WLDT-MACHINED

$

$

Not available

4818

4818

SPACER 1 X 2.083

$

$

Not available

4849

4849

GRASS BAG

$

$

Not available

4853

4853

PULLEY - 3.5

$

$

Not available

4854

4854

V PULLEY (BLOWER)

$

$

Not available

4920

4920

R/B 4920 VENT SCREEN

$

$

Not available

4980

4980

IDLER ADJUST PLATE

$

$

Not available

4981

4981

HOUSING PLATE

$

$

Not available

4983

4983

V BELT - BLOWER

$

$

Not available

4984

4984

DISCHARGE BAFFLE

$

$

Not available

4993

4993

BOOT

$

$

Not available

5990

5990

WLDT BAG SUPPORT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6296

6296

IDLER BASE WELDMENT

$

$

Not available

8922

8922

TOP ASSEMBLY

$

$

Not available

10294

10294

R/B 10294 IDLER FLAT 3`

$

$

Not available

10295

10295

PULLEY, IDLER 3 METAL

$

$

Not available

10296

10296

TARGET

$

$

Not available

10300

10300

42` GUARD ASM

$

$

Not available

10339

10339

FAN/SHAFT WLDT.

$

$

Not available

10480

10480

HOUSING W/LINER

$

$

Not available

13704

13704

R/B 13704 SHAFT 42 L

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

17578

17578

SUPPORT RAM GC

$

$

Not available

17582

17582

STRAP RAM GC

$

$

Not available

17583

17583

TUBE WLDT LH

$

$

Not available

17584

17584

WEIGHT BOX WLDT.

$

$

Not available

17585

17585

WEIGHT WLDT. RAM

$

$

Not available

17590

17590

REAR BRKT WLDT.

$

$

Not available

17671

17671

BRACKET

$

$

Not available

17875

17875

HINGE

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
