ZTR 422 - Dixon Zero-Turn Mower (1975) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

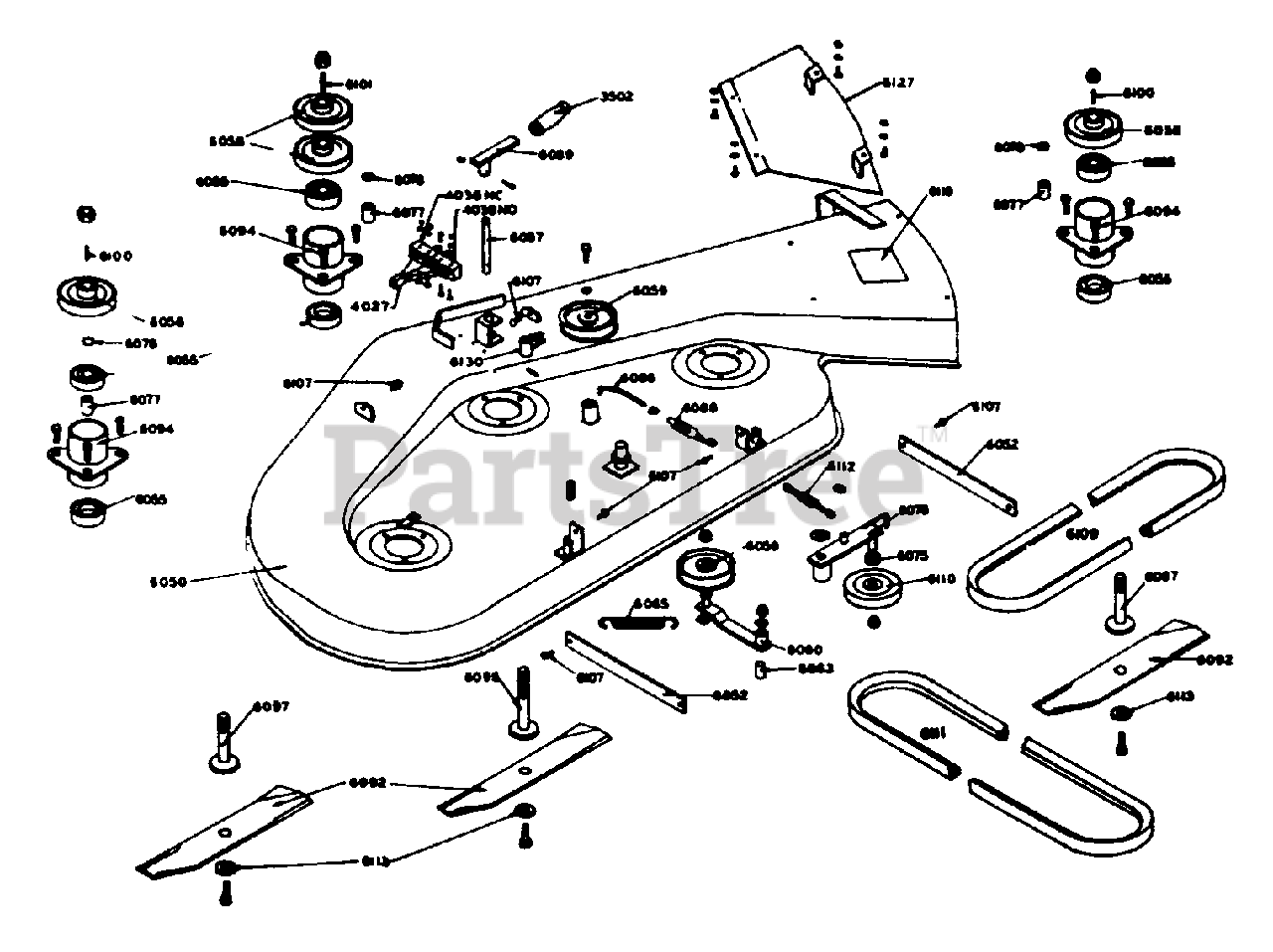

MOWER DECK ASSEMBLY Parts Diagram

  • Title

3502

HAND GRIP

$

$

Not available

4027

$

$

Not available

Dixon 4036

MICRO SWITCH

$

$

Not available

6025

$

$

Not available

6050

R/B 8206 MOWER DECK WLDMT

$

$

Not available

6052

STABILIZER ARM

$

$

Not available

6055

MOWER DECK BEARING

$

$

Not available

6058

V PULLEY

$

$

Not available

6059

FLAT IDLER PULLEY

$

$

Not available

6060

SERPENTINE IDLER WL

$

$

Not available

6063

5/8 OD X 3/8 ID BRBU

$

$

Not available

6065

SERPENTINE IDLER SPR

$

$

Not available

6070

ENG IDLER WLDT

$

$

Not available

6075

ENG IDLER SPACER

$

$

Not available

6077

R/B 6024 HUB BEARING SPACER

$

$

Not available

6078

PULLEY SPACER

$

$

Not available

6086

$

$

Not available

6087

$

$

Not available

6088

$

$

Not available

6089

ENG HANDLE WLDT

$

$

Not available

6092

$

$

Not available

6094

R/B 8889 DECK HUB MACHINED

$

$

Not available

6095

R/B 6046 CENTER SHAFT ASSY

$

$

Not available

6097

R/B 6047 OUTER SHAFT ASSY

$

$

Not available

6100

OUTER SHAFT KEY

$

$

Not available

6101

CENTER SHAFT KEY

$

$

Not available

6107

CLEVIS PIN 5/16

$

$

Not available

6109

V-BELT SERPENTINE

$

$

Not available

6110

V IDLER PULLEY

$

$

Not available

6111

V-BELT DECK DRIVE

$

$

Not available

6112

$

$

Not available

6113

BLADE WASHER

$

$

Not available

6119

R/B 3536 CAUTION DECAL

$

$

Not available

6127

R/B 6181 DEFLECTOR WLDT

$

$

Not available

6130

$

$

Not available
