ZTR 421 - Dixon Zero-Turn Mower (1976) GRASS CART Parts Diagram

Zero-Turn Mower

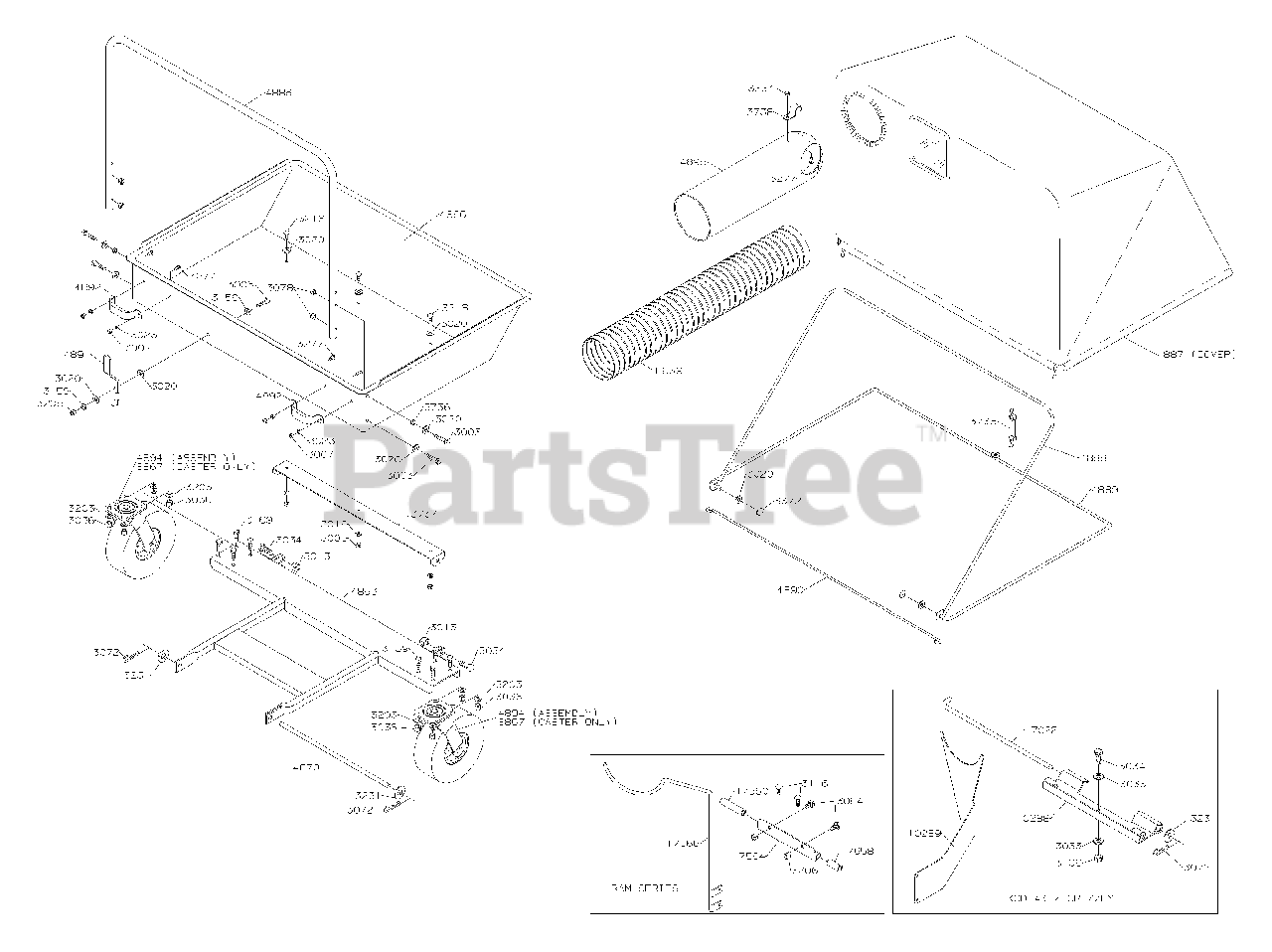

GRASS CART Parts Diagram

  • Title

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3034

3034

1/2-13UNC X11/4HHBLT

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3072

3072

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3109

3109

SPROCKET, W/KEY ENGINE

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3159

Dixon 3159

DISC SPRING .317 ID

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3216

3216

5/16-18X3/4PH PAN HD

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3277

3277

BOLT PPH 1/4-20X1/2

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3372

3372

$

$

Not available

3735

Dixon 3735

STRAP RUBBER

$

$

Not available

3736

Dixon 3736

SPACER PLASTIC 5/16

$

$

Not available

3737

3737

U-BRACKET

$

$

Not available

3738

3738

SLEEVE CLAMP

$

$

Not available

4870

4870

G.C. MOUNT ROD

$

$

Not available

4886

4886

TUBE SUPPORT

$

$

Not available

4887

4887

COVER

$

$

Not available

4888

4888

ROD SUPPORT

$

$

Not available

4889

4889

ROD FRAME

$

$

Not available

4890

4890

ROD STRAIGHT

$

$

Not available

4891

4891

HANDLE LATCH

$

$

Not available

4892

4892

HANDLE LIFT

$

$

Not available

4893

4893

FRAME

$

$

Not available

4894

4894

WHEEL SWIVEL 410/350

$

$

Not available

4895

4895

SLEEVE CONNECTING

$

$

Not available

8839

8839

FLEX TUBE R/B 539115938

$

$

Not available

8867

8867

SWIVEL (JRCO 4017)

$

$

Not available

8867

8867

SWIVEL (JRCO 4017)

$

$

Not available

10288

10288

CART SUPPORT WLDT.

$

$

Not available

10289

Dixon 10289

CART TUBE SUPPORT

$

$

Not available

17022

17022

HANGER ROD

$

$

Not available

17594

17594

CLAM ANGLE WLDT.

$

$

Not available

17658

17658

SPACER

$

$

Not available

17660

17660

SPACER

$

$

Not available

17666

17666

TUBE SUPPORT WLDT.

$

$
