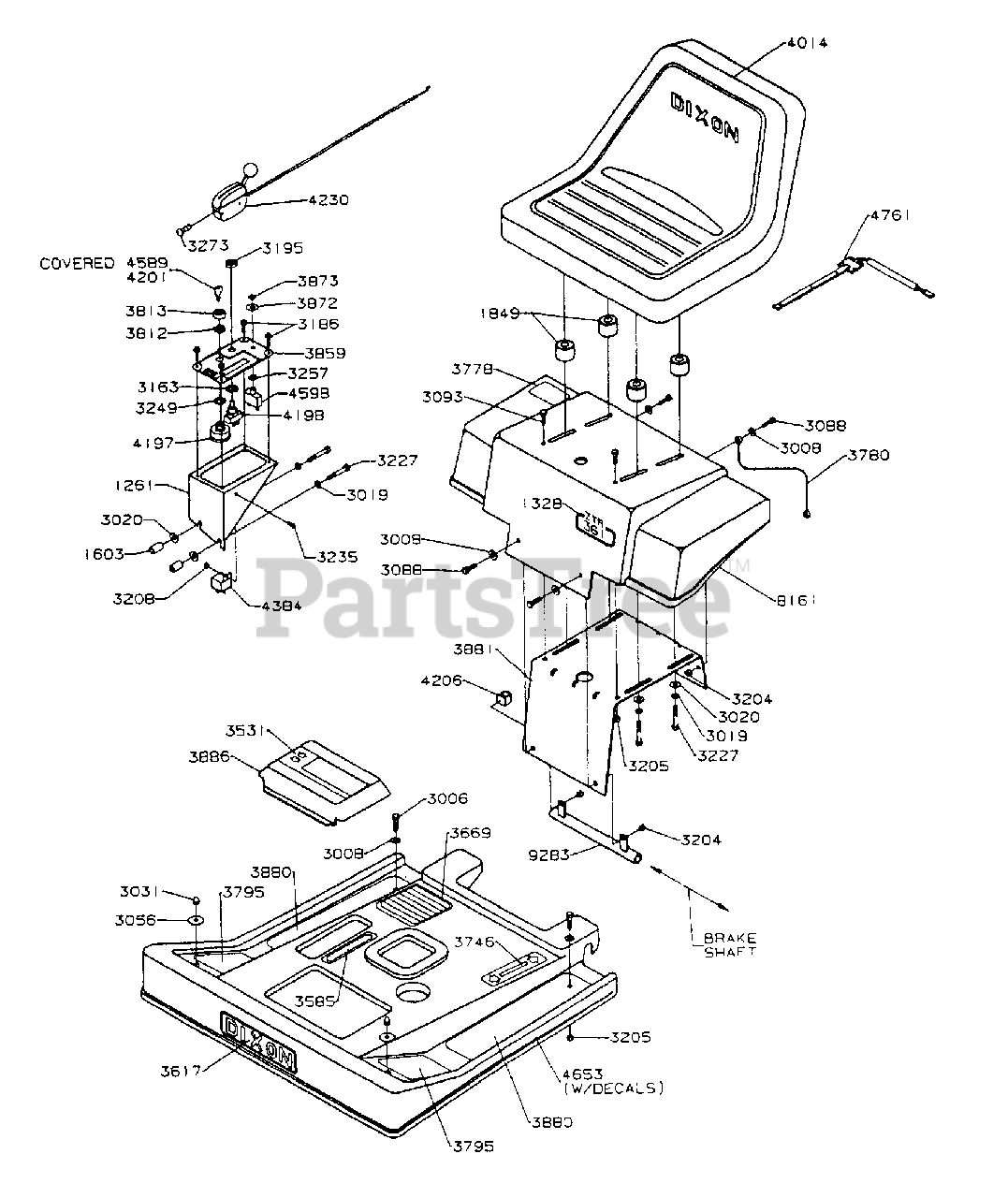

ZTR 361 - Dixon Zero-Turn Mower (1992) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

BODY ASSEMBLY Parts Diagram

  • Title

1261

1261

CONTROL BRACKET WLDT

$

$

Not available

1328

1328

MODEL DECAL 361

$

$

Not available

1603

1603

BUSHING

$

$

Not available

1849

1849

SEAT SPACER

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3780

Dixon 3780

CABLE

$

$

Not available

3795

3795

FLOOR PAD 4 X 8.00

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3859

3859

CONTROL PANEL 36`

$

$

Not available

3872

3872

$

$

Not available

3873

Dixon 3873

BRACKET, ANTI-ROTATION

$

$

Not available

3880

Dixon 3880

FLOOR PAD - REAR

$

$

Not available

3881

Dixon 3881

SEAT FRAME 30/36

$

$

Not available

3886

Dixon 3886

BATTERY COVER

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4384

4384

RELAY

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4653

4653

36` LOWER BODY ASM

$

$

Not available

4761

4761

SEAT SWITCH ASM

$

$

Not available

8161

8161

$

$

Not available

9283

Dixon 9283

SHAFT COLLAR WLDT

$

$

Not available
