ZTR 361 - Dixon Zero-Turn Mower (1991) WIRING ASSEMBLY Parts Diagram

Zero-Turn Mower

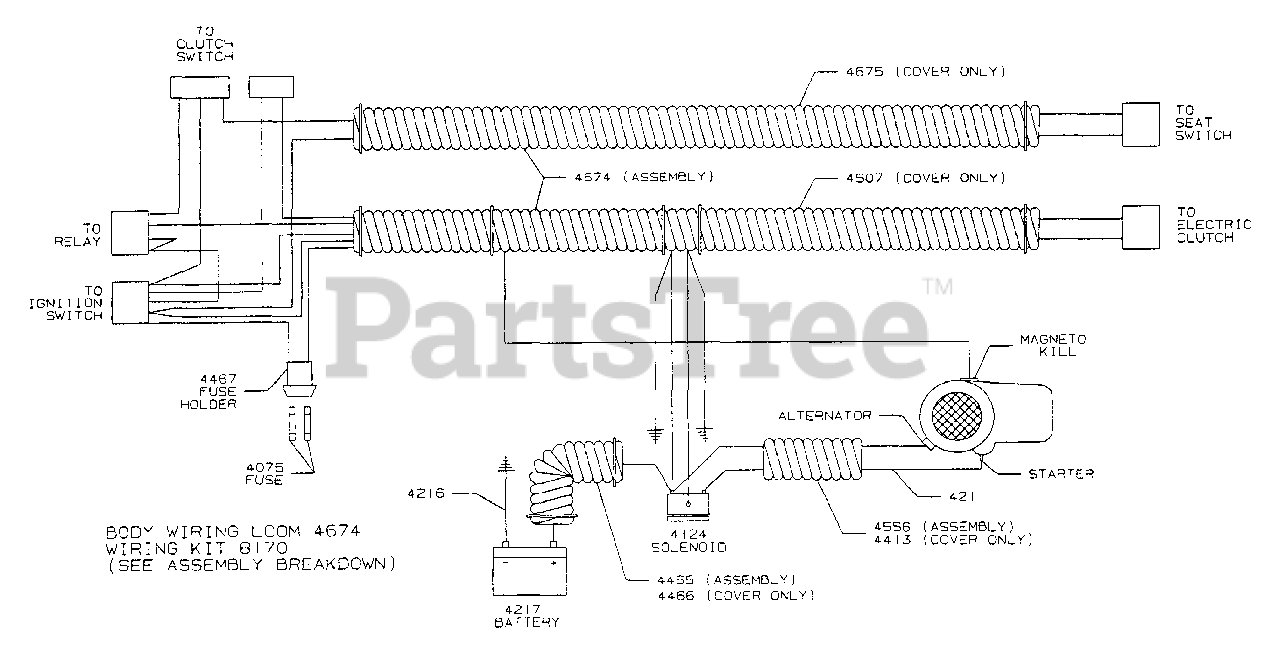

WIRING ASSEMBLY Parts Diagram

  • Title
4075

4075

15 AMP FUSE

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4211

4211

STARTER/BATTERY CABLE

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4413

4413

WIRING COVER 7`

$

$

Not available

4465

4465

BATTERY CABLE ASM

$

$

Not available

4466

4466

CONVOL. LOOM 46`

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4507

4507

CONVOLUTED LOOM 21`

$

$

Not available

4556

4556

R/B 4556 SHORT LOOM ASSEMBLY

$

$

Not available

4674

4674

BODY WIRE LOOM 36`

$

$

Not available

4675

4675

CONVOLUTED LOOM - 28

$

$

Not available

8170

8170

$

$

Not available
