ZTR 361 - Dixon Zero-Turn Mower (1990) MOWER DECK ASSEMBLY #2 Parts Diagram

Zero-Turn Mower

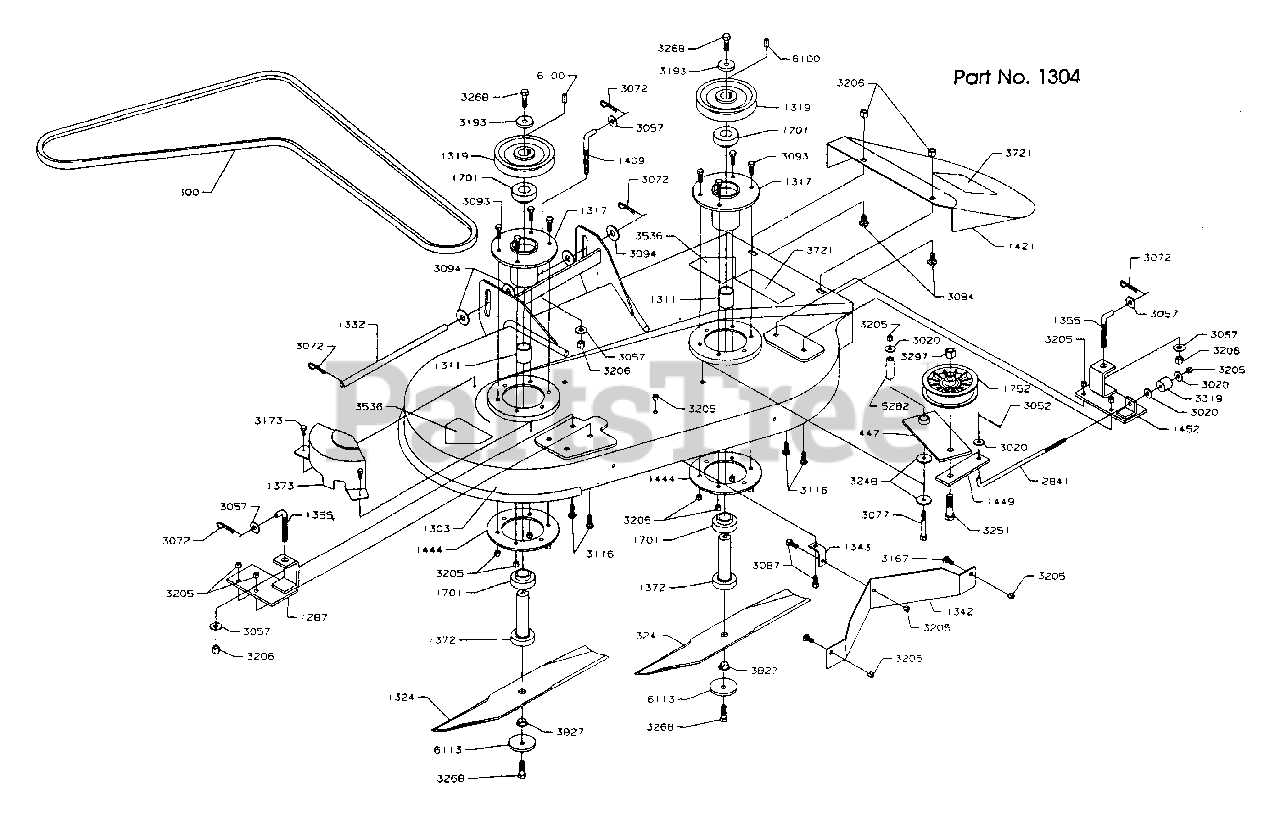

MOWER DECK ASSEMBLY #2 Parts Diagram

  • Title

1287

1287

$

$

Not available

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1303

1303

R/B 13114 MOWER DECK WLDT.

$

$

Not available

1304

1304

$

$

Not available

1311

1311

HUB SPACER

$

$

Not available

1317

1317

HUB WLDT. MACHINED

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1324

1324

BLD 36` LO LIFT(REF124121)

$

$

Not available

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1342

1342

BAFFLE

$

$

Not available

1343

1343

BRACKET

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1372

1372

R/B 6857 SHAFT ASM WLDT

$

$

Not available

1373

1373

PULLEY GUARD

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1421

1421

DEFLECTOR ASM 36`

$

$

Not available

1444

1444

FLANGE

$

$

Not available

1447

1447

IDLER WLDT - 36`

$

$

Not available

1449

1449

R/B 2349 PLATE - TENSIONER

$

$

Not available

1452

1452

RH DECK HANG WLDT

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

2841

2841

L-ROD 10.5`

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3827

3827

$

$

Not available

5282

5282

BUSHING 1.90

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available
