ZTR 3536 - Dixon Zero-Turn Mower (2003) MOWER DECK 36" Parts Diagram

Zero-Turn Mower

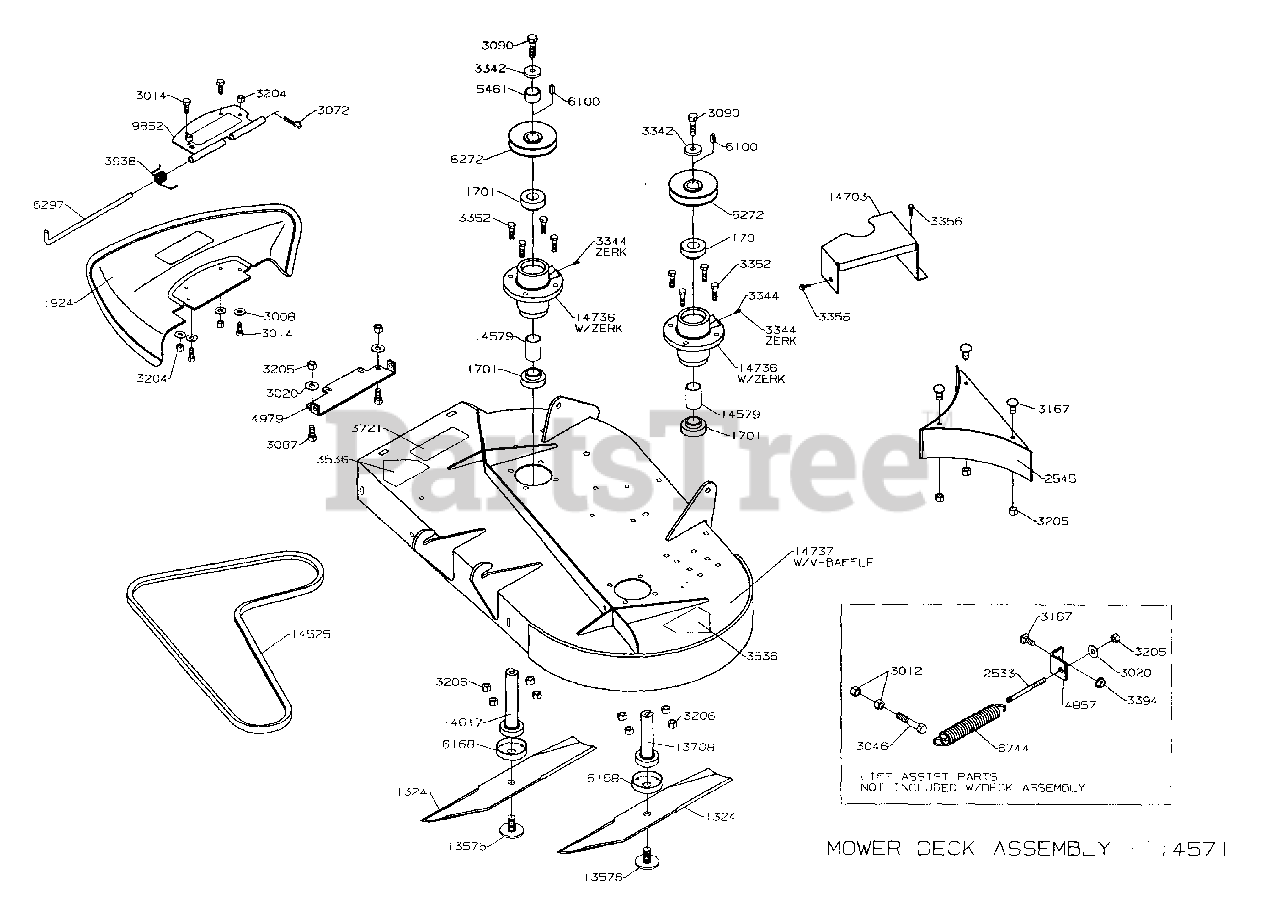

MOWER DECK 36" Parts Diagram

  • Title

1324

1324

BLD 36` LO LIFT(REF124121)

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1924

1924

PLASTIC DEFLECTOR 36

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2545

2545

BAFFLE WLDT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3026

3026

R/B 3107 1/4X1-1/2 SPIROL PIN

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4857

4857

BRACKET

$

$

Not available

4979

4979

HINGE

$

$

Not available

5461

5461

SPACER HUB

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6744

6744

SPRING

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13708

13708

SHAFT 50 S

$

$

Not available

14525

14525

V BELT

$

$

Not available

14571

14571

DECK ASM 36`

$

$

Not available

14579

14579

SPACER

$

$

Not available

14617

14617

SHAFT

$

$

Not available

14703

14703

PULLEY GUARD

$

$

Not available

14736

14736

36" HUB W/ZERK

$

$

Not available

14737

14737

DECK ASM 36`

$

$

Not available
