ZTR 3536 - Dixon Zero-Turn Mower (2003) BODY Parts Diagram

Zero-Turn Mower

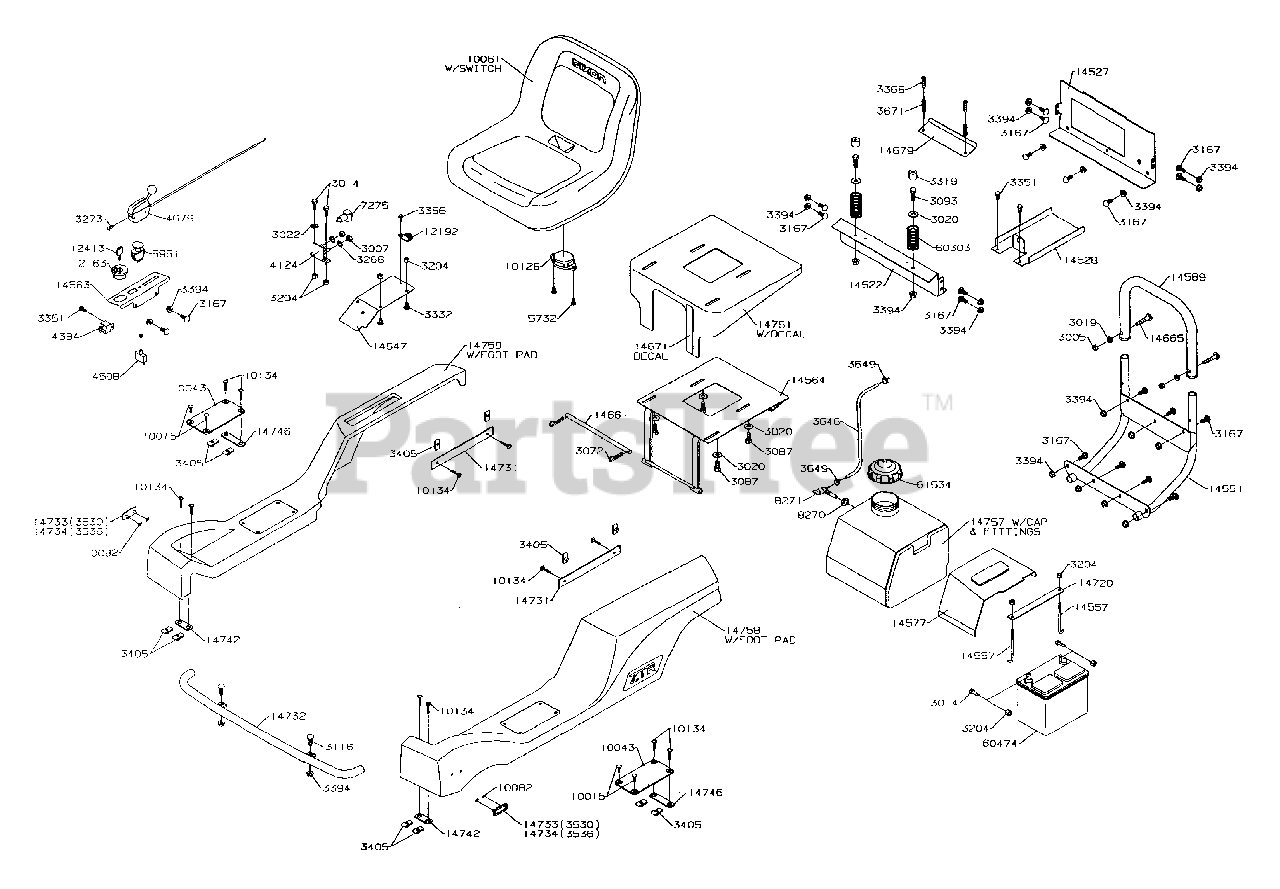

BODY Parts Diagram

  • Title

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3026

3026

R/B 3107 1/4X1-1/2 SPIROL PIN

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3332

3332

1/4-20X1/2 CARR BLT

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3530

3530

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4384

4384

RELAY

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4679

4679

THROTTLE CABLE

$

$

Not available

5732

5732

$

$

Not available

5961

5961

CLUTCH SWITCH

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8271

8271

TANK FUEL VALVE # 8271

$

$

Not available

10015

10015

1/4`NYLON TREE RIVET

$

$

Not available

10043

10043

FRONT FOOT PAD 3000

$

$

Not available

10061

10061

SEAT 30`

$

$

Not available

10082

10082

NUT, 3/16 PUSH

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10134

10134

5/16-18X1.5 FLANGED SCRE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12192

12192

INSULATED STRAP (LARGE)

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

14522

14522

SPRING PLATE

$

$

Not available

14527

14527

REAR SUPPORT PLATE

$

$

Not available

14528

14528

BATTERY BOX

$

$

Not available

14551

14551

REAR SKID WLDT.

$

$

Not available

14557

14557

J-ROD

$

$

Not available

14563

14563

CONTROL PANEL

$

$

Not available

14564

14564

SEAT SUPPORT WLDT.

$

$

Not available

14577

14577

BATTERY COVER

$

$

Not available

14589

14589

ENGINE GUARD

$

$

Not available

14647

14647

BENT PLATE

$

$

Not available

14661

14661

PIN

$

$

Not available

14665

14665

T-BOLT

$

$

Not available

14671

14671

DECAL, LIFT

$

$

Not available

14678

14678

QUADRANT WLDT.

$

$

Not available

14720

14720

STRAP

$

$

Not available

14731

14731

STRAP

$

$

Not available

14732

14732

BUMPER WLDT.

$

$

Not available

14733

14733

NAME PLATE 3530

$

$

Not available

14734

14734

NAME PLATE 3536

$

$

Not available

14742

14742

STRAP W/HOLES

$

$

Not available

14746

14746

STRAP W/HOLES

$

$

Not available

14757

14757

FUEL TANK ASM.

$

$

Not available

14758

14758

LH FENDER ASM

$

$

Not available

14759

14759

RH FENDER ASM

$

$

Not available

14761

14761

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available
