ZTR 3530 - Dixon Zero-Turn Mower (2003) CHASSIS Parts Diagram

Zero-Turn Mower

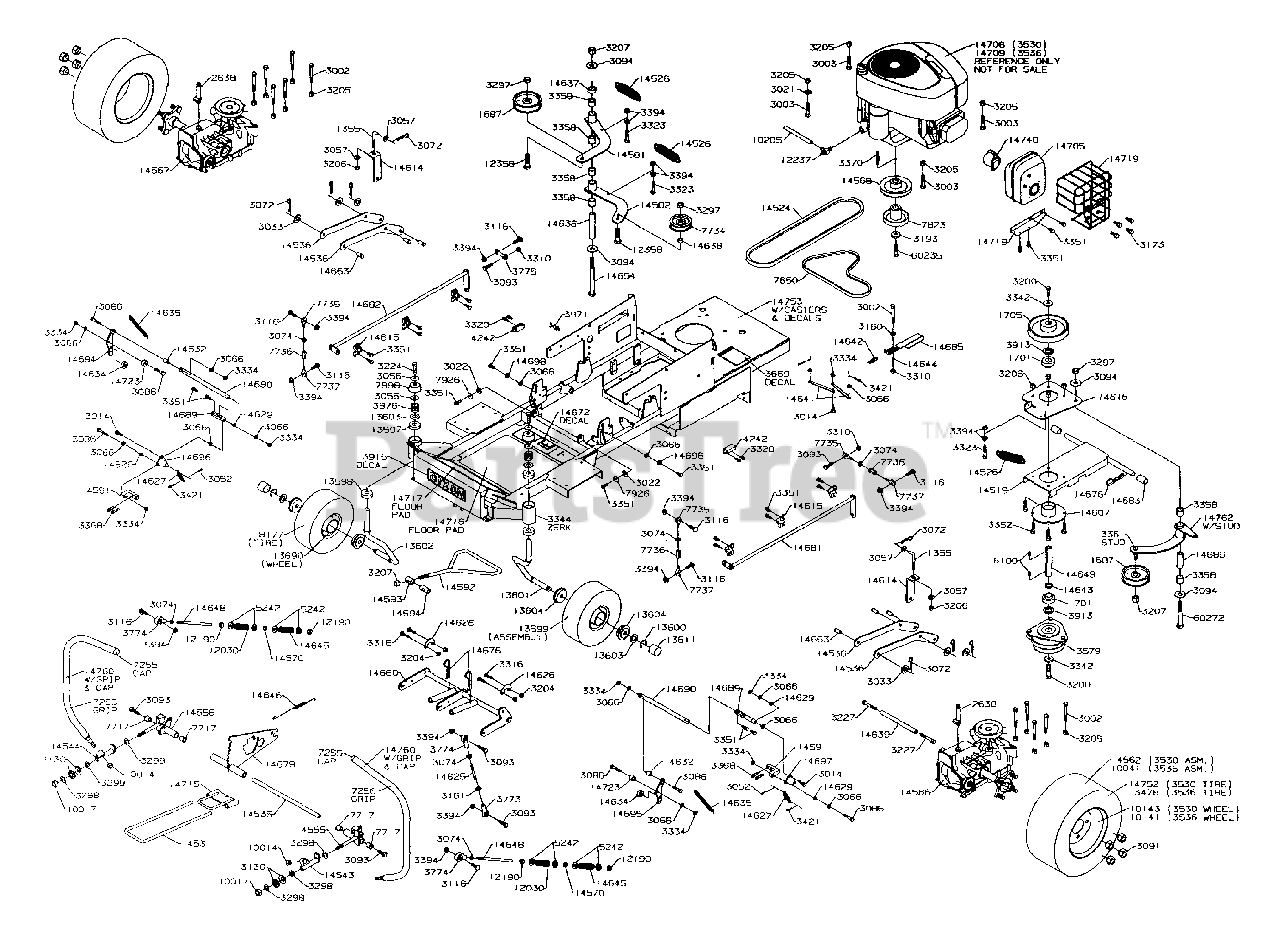

CHASSIS Parts Diagram

  • Title

1355

1355

L ROD 3-1/8"

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1705

1705

V-PULLEY 6.5 DIA

$

$

Not available

2638

2638

BREATHER CAP ASM

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3160

3160

5/16STD FL WASH TYPA

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3200

3200

R/B 3200 1/2 20UNFX1 1/4HHBC5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3320

3320

10-24X1/2HWH TAP SCR

$

$

Not available

3323

Dixon 3323

5/16-18X1-1/2HHB GR8

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3358

3358

FLANGED NYLON BUSH.

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3478

3478

REAR TIRE

$

$

Not available

3551

3551

426 MODEL DECAL

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3775

Dixon 3775

DOUBLE BALL JOINT

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

7255

7255

CAP

$

$

Not available

7256

7256

SLEEVE

$

$

Not available

7650

7650

T/A DRIVE BELT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7734

7734

IDLER 3` FLAT

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7823

7823

ENGINE PULLEY

$

$

Not available

7926

7926

LEVER STOP

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

10014

Dixon 10014

1/2-13HEX NUT W/NYL

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10041

10041

REAR WHEEL & TIRE

$

$

Not available

10141

10141

REAR WHEEL-BLACK

$

$

Not available

10143

10143

REAR WHEEL

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

12030

12030

SPRING

$

$

Not available

12190

12190

SPRING LOCKING COLLAR

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12358

12358

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

13597

13597

CASTER BUSHING

$

$

Not available

13598

13598

BEARING

$

$

Not available

13599

13599

CASTER WHEEL/TIRE/BEARIN

$

$

Not available

13600

13600

RETAINING RING-7/8

$

$

Not available

13601

13601

LH CASTER AXLE 7/8

$

$

Not available

13602

13602

RH CASTER AXLE 7/8

$

$

Not available

13603

13603

WASHER

$

$

Not available

13604

13604

CASTER BEARING

$

$

Not available

13611

13611

HUB COVER

$

$

Not available

13690

13690

CASTER WHEEL/NO BEARINGS

$

$

Not available

14262

14262

GRASS BAG

$

$

Not available

14519

14519

JACK PLATE WLDT.

$

$

Not available

14524

14524

V BELT B58

$

$

Not available

14526

14526

SPRING

$

$

Not available

14531

14531

LIFT HANDLE PLATED

$

$

Not available

14535

14535

CONTROL LEVER SHAFT

$

$

Not available

14536

14536

STRAP

$

$

Not available

14543

14543

WLDT.CONT. LEVER LH

$

$

Not available

14544

14544

WLDT.CONT. LEVER RH

$

$

Not available

14555

14555

CONTROL TUBE WLDT. LH

$

$

Not available

14556

14556

CONTROL TUBE WLDT. RH

$

$

Not available

14562

14562

REAR WHEEL & TIRE

$

$

Not available

14566

14566

IZT LH (339-2400R)

$

$

Not available

14567

14567

IZT R (339-2400L)

$

$

Not available

14568

14568

PULLEY 5"

$

$

Not available

14570

14570

FLANGED BUSHING

$

$

Not available

14581

14581

IDLER WLDT.

$

$

Not available

14582

14582

IDLER WLDT.

$

$

Not available

14591

14591

BELLCRANK BRG. BLOCK

$

$

Not available

14592

14592

STABILIZING ROD

$

$

Not available

14593

14593

TUBE

$

$

Not available

14594

14594

TUBE

$

$

Not available

14607

14607

HUB WLDT. MACHINED

$

$

Not available

14614

14614

DECK HANGER BRKT.

$

$

Not available

14615

14615

NYLON CONTROL ARM SADDLE

$

$

Not available

14616

14616

IDLER PLATE

$

$

Not available

14625

14625

THREADED ROD LH & RH

$

$

Not available

14626

14626

CAP PLATE

$

$

Not available

14627

14627

SPRING

$

$

Not available

14629

14629

BUSHING

$

$

Not available

14632

14632

BUSHING

$

$

Not available

14634

14634

BEARING 1-1/8OD 3/8ID

$

$

Not available

14635

14635

SPRING EXT.

$

$

Not available

14636

14636

SPACER

$

$

Not available

14637

14637

SPACER

$

$

Not available

14638

14638

SPACER

$

$

Not available

14639

14639

TRANS TIE BAR

$

$

Not available

14641

14641

LINK

$

$

Not available

14642

14642

SPRING EXT

$

$

Not available

14643

14643

SPACER

$

$

Not available

14644

14644

BUSHING

$

$

Not available

14645

14645

SPRING

$

$

Not available

14646

14646

SPRING EXT.

$

$

Not available

14648

14648

THREADED ROD

$

$

Not available

14649

14649

SHAFT 1` OD

$

$

Not available

14654

14654

1/2-13 X 6.0 HHB

$

$

Not available

14663

14663

CLEVIS PIN

$

$

Not available

14672

14672

DECAL CONTROLS

$

$

Not available

14676

14676

5/32 X 3.0 HAIR PIN COTT

$

$

Not available

14678

14678

QUADRANT WLDT.

$

$

Not available

14681

14681

PLATED CONT.SHAFT WLDT.

$

$

Not available

14682

14682

PLATED CONT.SHAFT WLDT.

$

$

Not available

14683

14683

BUSHING PLATED

$

$

Not available

14685

14685

HYDRO RELEASE HANDLE

$

$

Not available

14686

14686

SPACER

$

$

Not available

14689

14689

LINK REAR

$

$

Not available

14690

14690

LINK FRONT

$

$

Not available

14694

14694

BELLCRANK-PIN ASM

$

$

Not available

14695

14695

BELLCRANK-PIN ASM

$

$

Not available

14696

14696

BELLCRANK-PIN ASM

$

$

Not available

14697

14697

BELLCRANK-PIN ASM

$

$

Not available

14698

14698

BEARING 11/16OD X 1/4ID

$

$

Not available

14705

14705

MUFFLER

$

$

Not available

14708

14708

$

$

Not available

14709

14709

$

$

Not available

14715

14715

LATCH RELEASE

$

$

Not available

14716

14716

FLOOR PAD

$

$

Not available

14717

14717

FOOT PAD

$

$

Not available

14718

14718

ANGLE BRKT.(PLATED)

$

$

Not available

14719

14719

MUFFLER GUARD

$

$

Not available

14723

14723

BUSHING 3/4O/D 1/4ID

$

$

Not available

14740

14740

MUFFLER PIPE (PAINTED)

$

$

Not available

14752

14752

REAR TIRE

$

$

Not available

14753

14753

$

$

Not available

14760

14760

LEVER W/GRIP & CAP

$

$

Not available

14762

14762

IDLER ARM W/STUD

$

$

Not available

60235

60235

HCS 7/16-20 X 1-1/2 GR 5 ZD

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available
