ZTR 3304 - Dixon Zero-Turn Mower (2002) WIRING Parts Diagram

Zero-Turn Mower

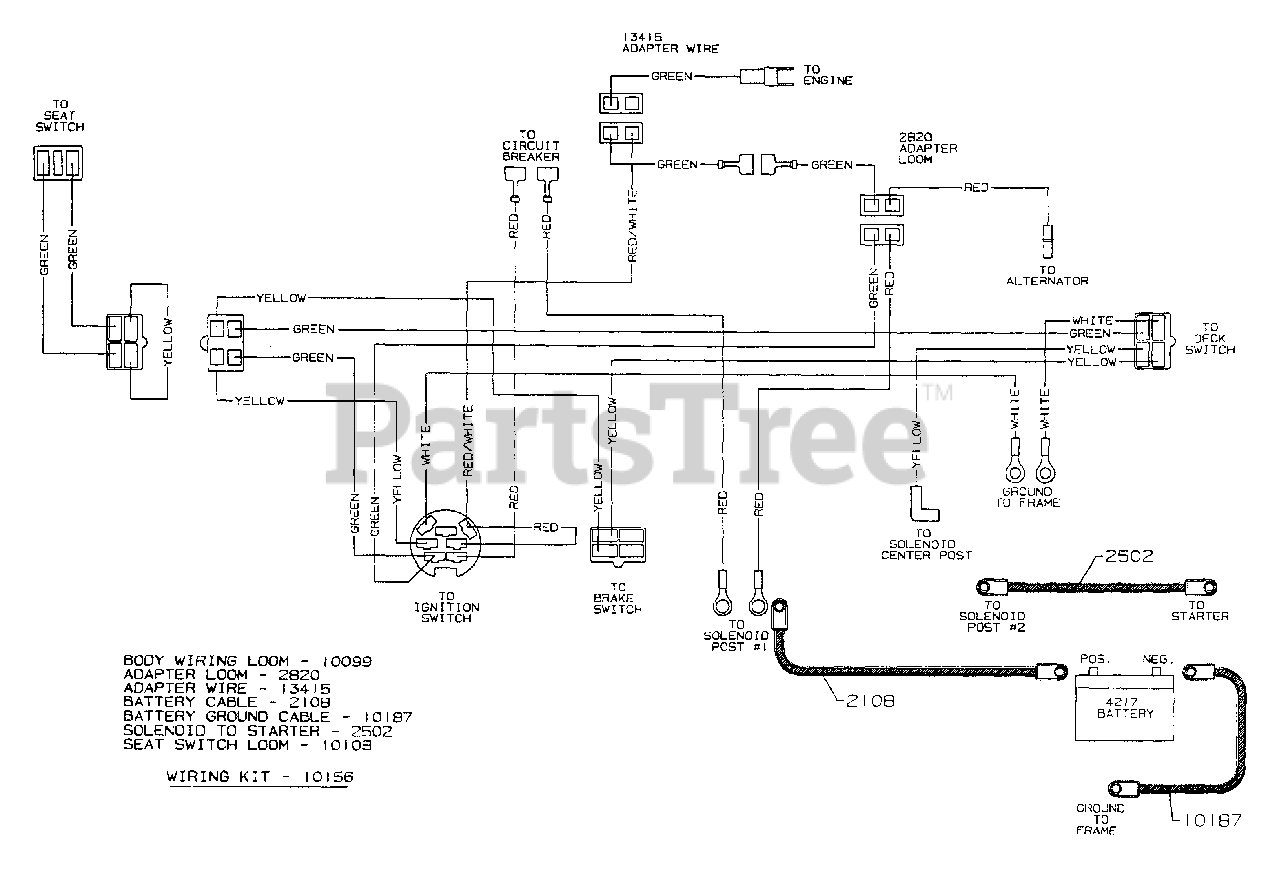

WIRING Parts Diagram

  • Title
2108

2108

BATTERY CABLE

$

$

Not available

2502

2502

SOL. TO STARTER CABLE

$

$

Not available

2820

2820

LOOM ADAPTER

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

10099

10099

WIRE LOOM 3304

$

$

Not available

10108

10108

SEAT SWITCH LOOM

$

$

Not available

10156

10156

$

$

Not available

10187

10187

GROUND CABLE

$

$

Not available

13415

13415

ADAPTOR LOOM

$

$

Not available
