ZTR 3304 - Dixon Zero-Turn Mower (1995) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

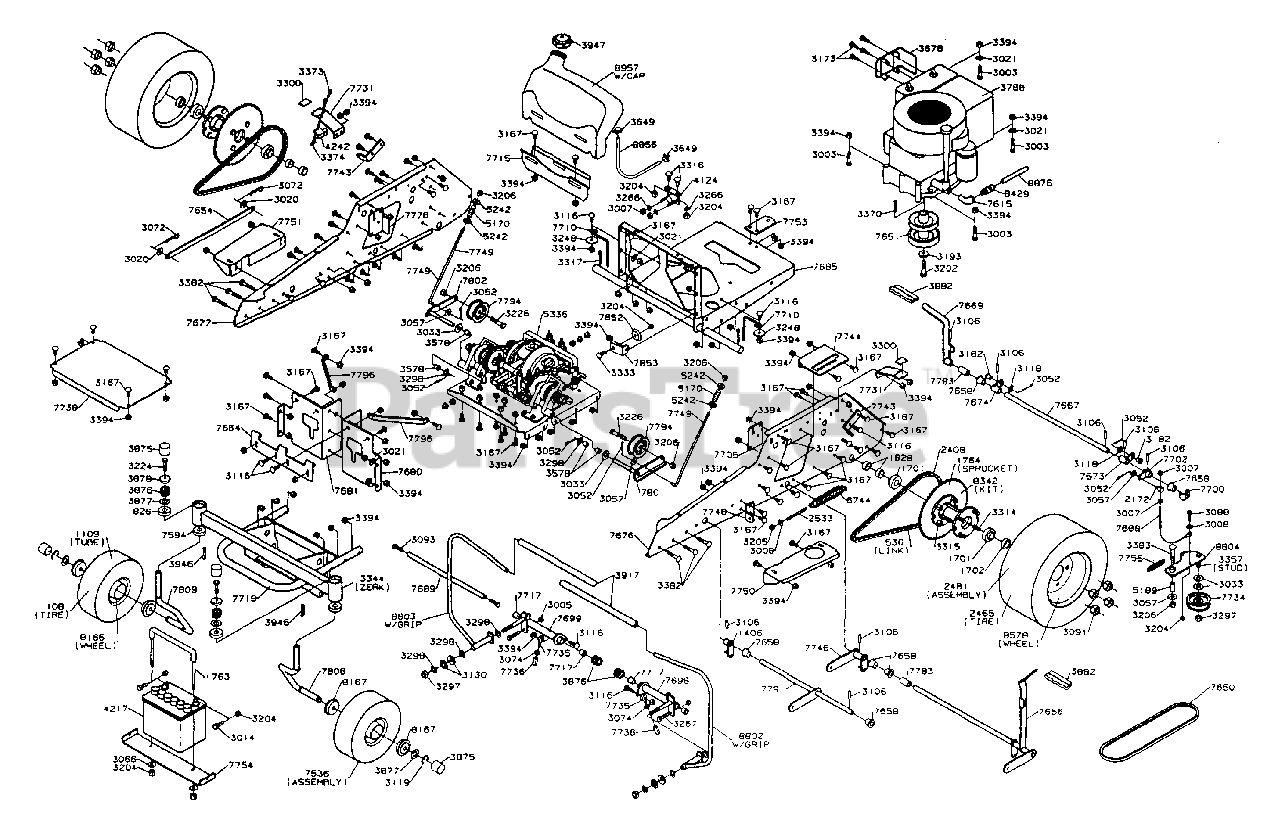

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1406

1406

LIFT ARM DRILLED

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1828

1828

AXLE SPACER

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2465

2465

REAR TIRE

$

$

Not available

2481

2481

R/B 13344 REAR WHEEL & TIRE

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3202

3202

7/16-20 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3333

3333

1/4-20X1 CARR BOLT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3382

3382

5/16-18X1-3/4 CAR BLT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3678

3678

MUFFLER GUARD

$

$

Not available

3788

3788

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

3946

3946

CLIP - 2.06

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5336

5336

$

$

Not available

6744

6744

SPRING

$

$

Not available

7536

7536

R/B 10040 WHEEL & TIRE ASM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7615

7615

3/8` STREET EL

$

$

Not available

7650

7650

T/A DRIVE BELT

$

$

Not available

7651

7651

PULLEY ENGINE - 30`

$

$

Not available

7654

7654

TIE BAR

$

$

Not available

7656

7656

REAR DECK SHAFT WLDT

$

$

Not available

7658

7658

BUSHING

$

$

Not available

7664

7664

SEAT PLATE HINGE

$

$

Not available

7667

7667

BRAKE SHAFT

$

$

Not available

7669

7669

BRAKE HANDLE DRILLD

$

$

Not available

7673

7673

BRAKE ARM DRILLED LH

$

$

Not available

7674

7674

BRAKE ARM DRILLED RH

$

$

Not available

7676

7676

SIDE FRAME L.H.

$

$

Not available

7677

7677

SIDE FRAME R.H.

$

$

Not available

7680

7680

SEAT SUPPORT FRT.LH

$

$

Not available

7681

7681

SEAT SUPPORT FRT.RH

$

$

Not available

7685

7685

ENGINE PLATE WLDT

$

$

Not available

7688

7688

BRAKE CABLE

$

$

Not available

7689

7689

CONTROL LEVER SHAFT

$

$

Not available

7698

7698

CONTROL TUBE WLDT-LH

$

$

Not available

7699

7699

CONTROL TUBE WLDT RH

$

$

Not available

7700

7700

BRAKE SHAFT RET

$

$

Not available

7702

7702

BRAKE ARM DRILLED

$

$

Not available

7705

7705

STOP BRACKET

$

$

Not available

7710

7710

BELT GUIDE

$

$

Not available

7715

7715

TANK SUPPORT BRKT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7719

7719

$

$

Not available

7731

7731

FENDER SUPPORT

$

$

Not available

7734

7734

IDLER 3` FLAT

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7738

7738

BODY SUPPORT CENTER

$

$

Not available

7743

7743

IDLER ADJ. BRKT

$

$

Not available

7744

7744

R/B 7099 DECK LIFT QUADRANT

$

$

Not available

7746

7746

LIFT ARM DRILLED RH

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7749

7749

ROD, Z

$

$

Not available

7750

7750

BODY SUPPORT L.H.

$

$

Not available

7751

7751

BODY SUPPORT R.H.

$

$

Not available

7753

7753

HITCH

$

$

Not available

7754

7754

BATTERY SUPPORT

$

$

Not available

7756

7756

SPRING 3/4 X 3.5

$

$

Not available

7776

7776

STOP BRACKET - RH

$

$

Not available

7783

7783

SPACER - 1.50

$

$

Not available

7791

7791

FRONT DECK SHAFT WLT

$

$

Not available

7794

7794

IDLER PULLEY

$

$

Not available

7796

7796

BRACE

$

$

Not available

7801

7801

IDLER ARM LH DRILLED

$

$

Not available

7802

7802

IDLER ARM WLDT

$

$

Not available

7808

7808

CASTER AXLE LH

$

$

Not available

7809

7809

CASTER AXLE RH

$

$

Not available

7852

7852

CABLE KEEPER

$

$

Not available

7853

7853

BRACKET CABLE KEEPER

$

$

Not available

8166

8166

R/B 10140 CASTER RIM

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8342

8342

R/B 8342 WHEEL HUB ASM 30 36

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8578

8578

16` WHEEL

$

$

Not available

8802

8802

R/B 9441 LH CONT.LEVER W/GRIP

$

$

Not available

8803

8803

R/B 9441 RH CONT.LEVER W/GRIP

$

$

Not available

8804

8804

TRANS IDLER W/STUD

$

$

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

8957

8957

FUEL TANK PLASTIC

$

$

Not available
