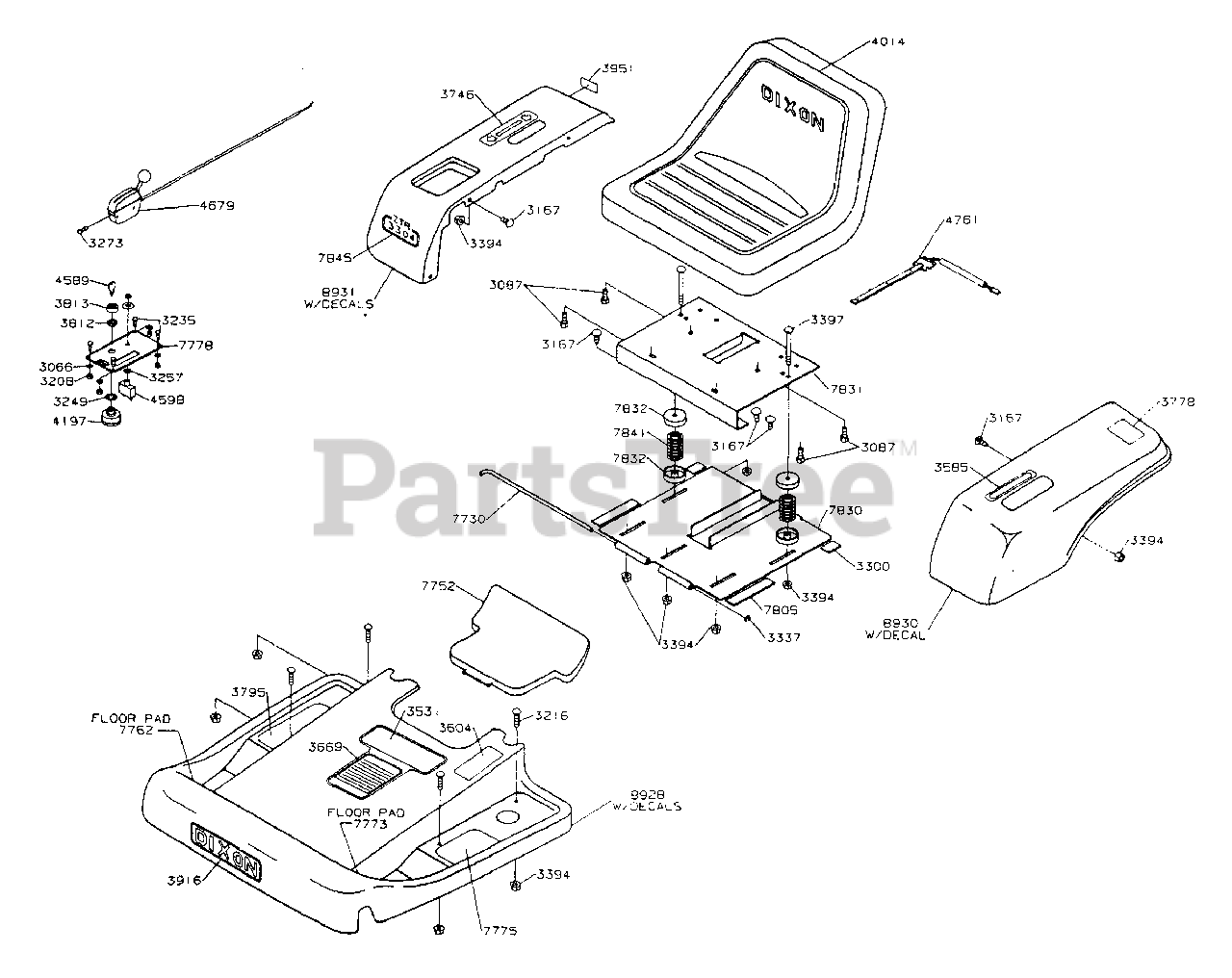

ZTR 3304 - Dixon Zero-Turn Mower (1995) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

BODY ASSEMBLY Parts Diagram

  • Title

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3216

3216

5/16-18X3/4PH PAN HD

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3337

3337

RETAINING RING

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3397

3397

5/16-18X3 CAR BOLT

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3795

3795

FLOOR PAD 4 X 8.00

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3951

3951

DECAL, USA

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4679

4679

THROTTLE CABLE

$

$

Not available

4761

4761

SEAT SWITCH ASM

$

$

Not available

7730

7730

SEAT HINGE PIN

$

$

Not available

7752

7752

BATTERY COVER

$

$

Not available

7762

7762

FRONT FLOOR PAD-RH

$

$

Not available

7773

7773

FRONT FLOOR PAD-LH

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

7778

7778

CONTROL PANEL

$

$

Not available

7805

7805

FOAM PAD

$

$

Not available

7830

7830

SEAT PLATE

$

$

Not available

7831

7831

SPRING SEAT PLATE

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

7845

7845

MODEL DECAL - 3304

$

$

Not available

8928

8928

LO BODY ASM 30`

$

$

Not available

8930

8930

LH FENDER W/DECALS

$

$

Not available

8931

8931

RH FENDER W/DECALS

$

$

Not available
