ZTR 3303 - Dixon Zero-Turn Mower (2002) WIRING Parts Diagram

Zero-Turn Mower

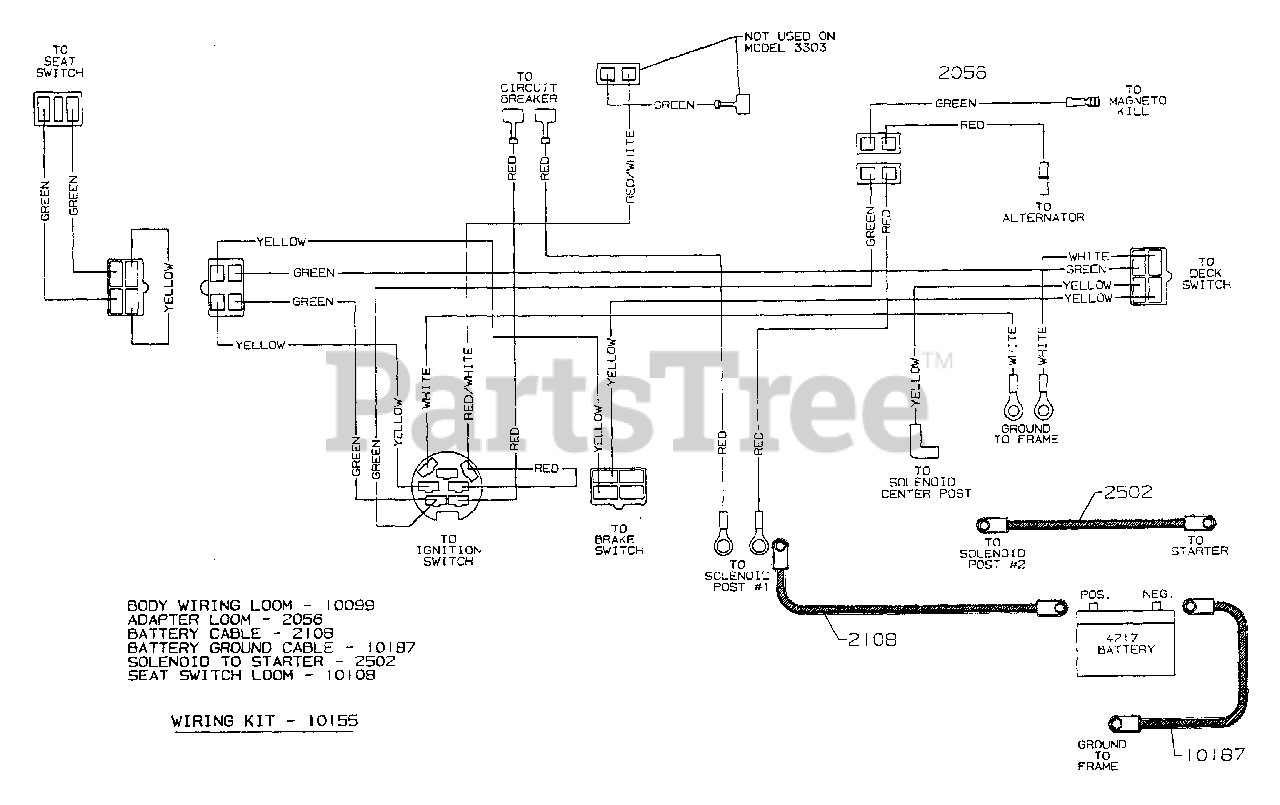

WIRING Parts Diagram

  • Title
2056

2056

BRIGGS ADAPTER LOOM

$

$

Not available

2108

2108

BATTERY CABLE

$

$

Not available

2502

2502

SOL. TO STARTER CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

10099

10099

WIRE LOOM 3304

$

$

Not available

10108

10108

SEAT SWITCH LOOM

$

$

Not available

10155

10155

DNB 3303 WIRING KIT

$

$

Not available

10187

10187

GROUND CABLE

$

$

Not available
