ZTR 3303 - Dixon Zero-Turn Mower (2000) BODY Parts Diagram

Zero-Turn Mower

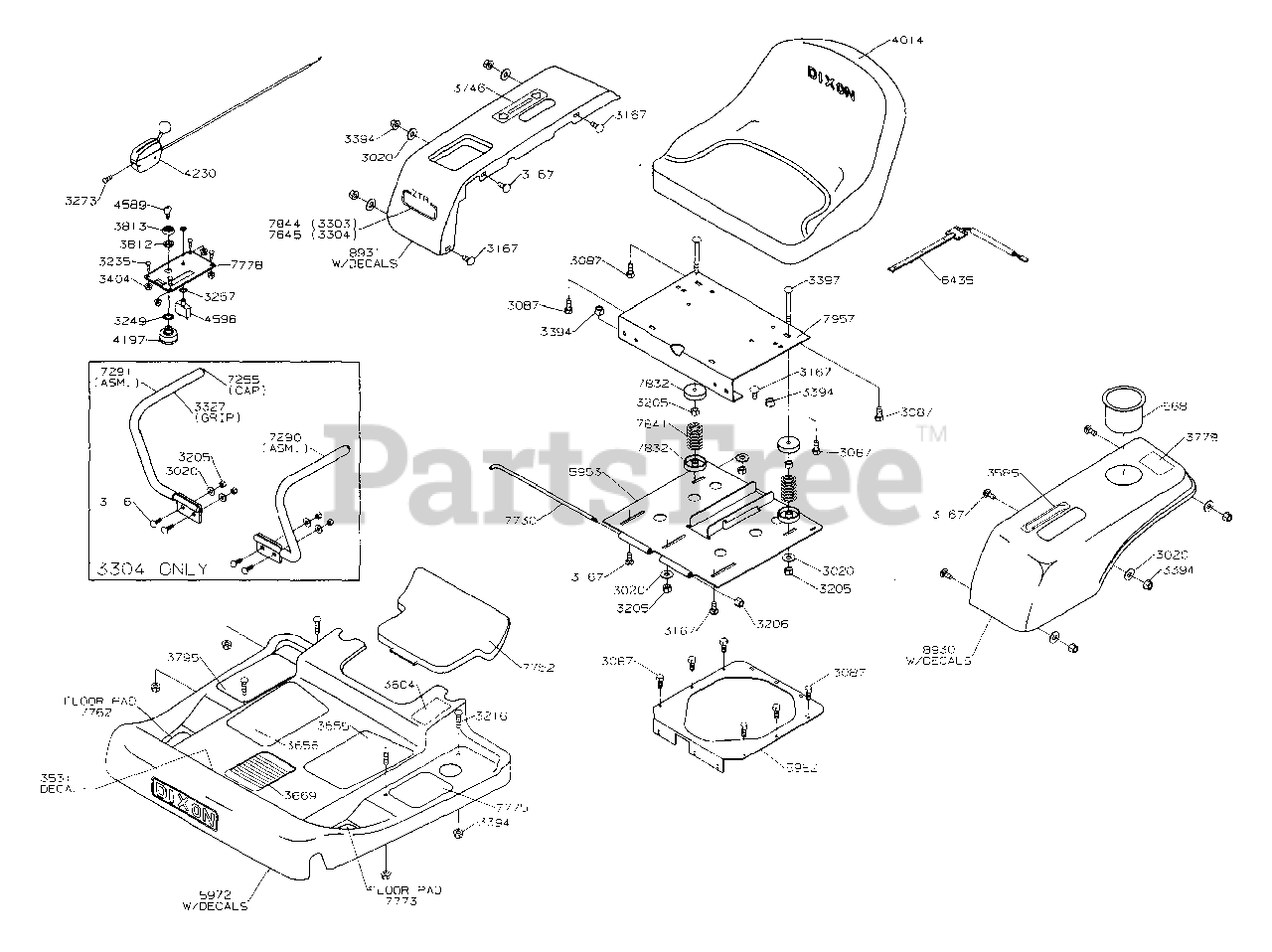

BODY Parts Diagram

  • Title

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3216

3216

5/16-18X3/4PH PAN HD

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3304

3304

$

$

Not available

3327

3327

SLEEVE 22.5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3397

3397

5/16-18X3 CAR BOLT

$

$

Not available

3404

Dixon 3404

10-24 HEX FLANGE NUT

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3795

3795

FLOOR PAD 4 X 8.00

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

5681

5681

CUP HOLDER

$

$

Not available

5952

5952

FRAME STIFFENER

$

$

Not available

5953

5953

SEAT PLATE

$

$

Not available

5972

5972

LOWER BODY ASM 3300`S

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

7255

7255

CAP

$

$

Not available

7290

7290

LH ARM REST WLDT

$

$

Not available

7291

7291

RH ARM REST WLDT

$

$

Not available

7730

7730

SEAT HINGE PIN

$

$

Not available

7752

7752

BATTERY COVER

$

$

Not available

7762

7762

FRONT FLOOR PAD-RH

$

$

Not available

7773

7773

FRONT FLOOR PAD-LH

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

7778

7778

CONTROL PANEL

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

7844

7844

MODEL DECAL - 3303

$

$

Not available

7845

7845

MODEL DECAL - 3304

$

$

Not available

7957

7957

SPRING SEAT PLATE

$

$

Not available

8930

8930

LH FENDER W/DECALS

$

$

Not available

8931

8931

RH FENDER W/DECALS

$

$

Not available
