ZTR 3301 - Dixon Zero-Turn Mower (1994) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

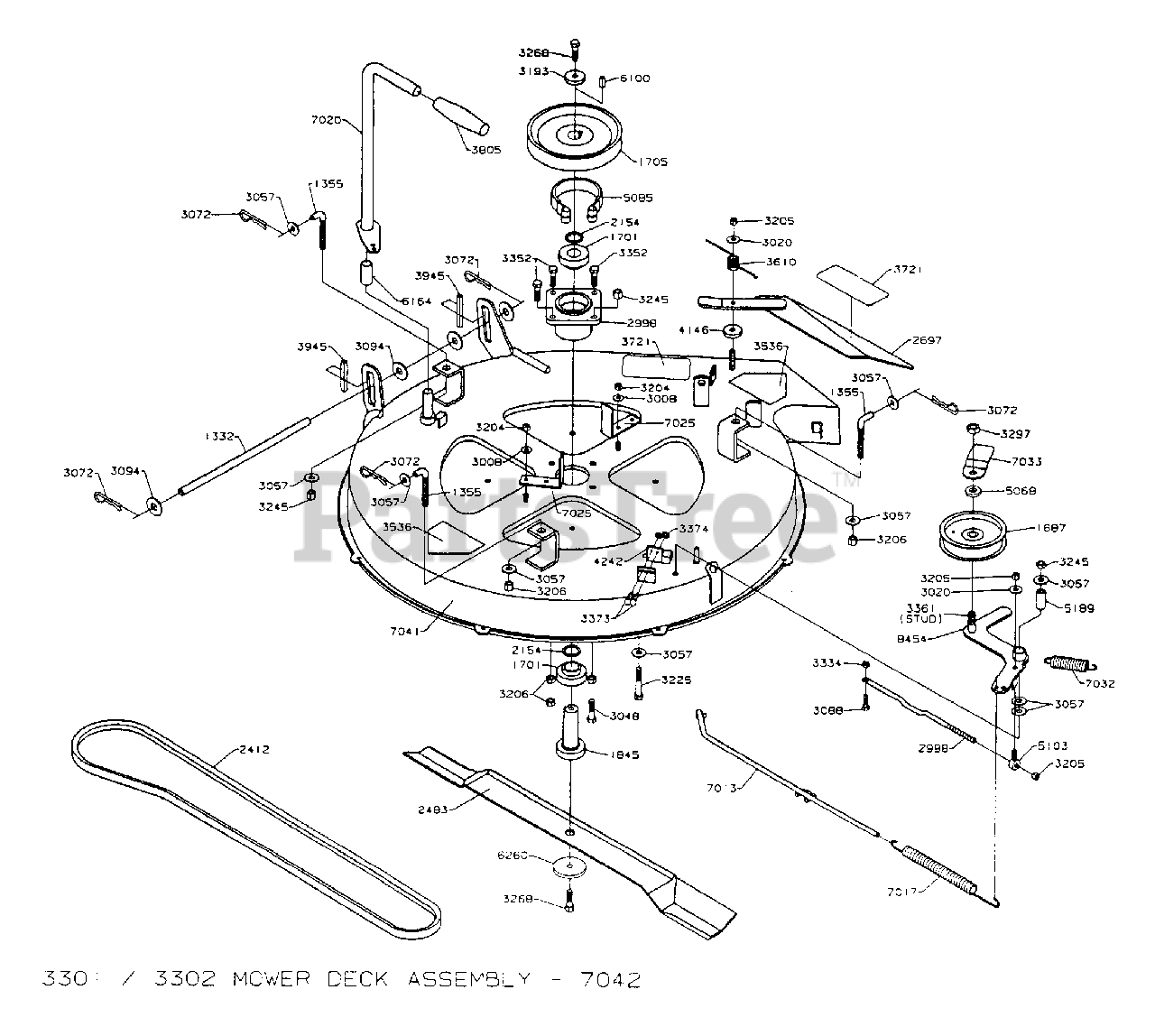

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1705

1705

V-PULLEY 6.5 DIA

$

$

Not available

1845

1845

SHAFT ASM 30

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2412

2412

DECK DRIVE BELT

$

$

Not available

2483

2483

30` STD BLADE

$

$

Not available

2697

2697

DEFLECTOR

$

$

Not available

2988

2988

BRAKE ROD

$

$

Not available

2998

2998

DECK HUB MACHINED

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3610

3610

DEFLECTOR SPRING

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3945

3945

CLIP - 2.69

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6164

6164

BUSH BRZ 5/8X3/4X1.6

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

7013

7013

ENGAGING ROD

$

$

Not available

7017

7017

SPRING - .75 X 10.43

$

$

Not available

7020

7020

HANDLE WLDT

$

$

Not available

7025

7025

BELT RETAINER

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

7041

7041

$

$

Not available

7042

7042

R/B 7042 MOWER DECK ASM 30`

$

$

Not available

8454

8454

IDLER ARM WELDMENT

$

$

Not available
