ZTR 312 - Dixon Zero-Turn Mower (1991) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

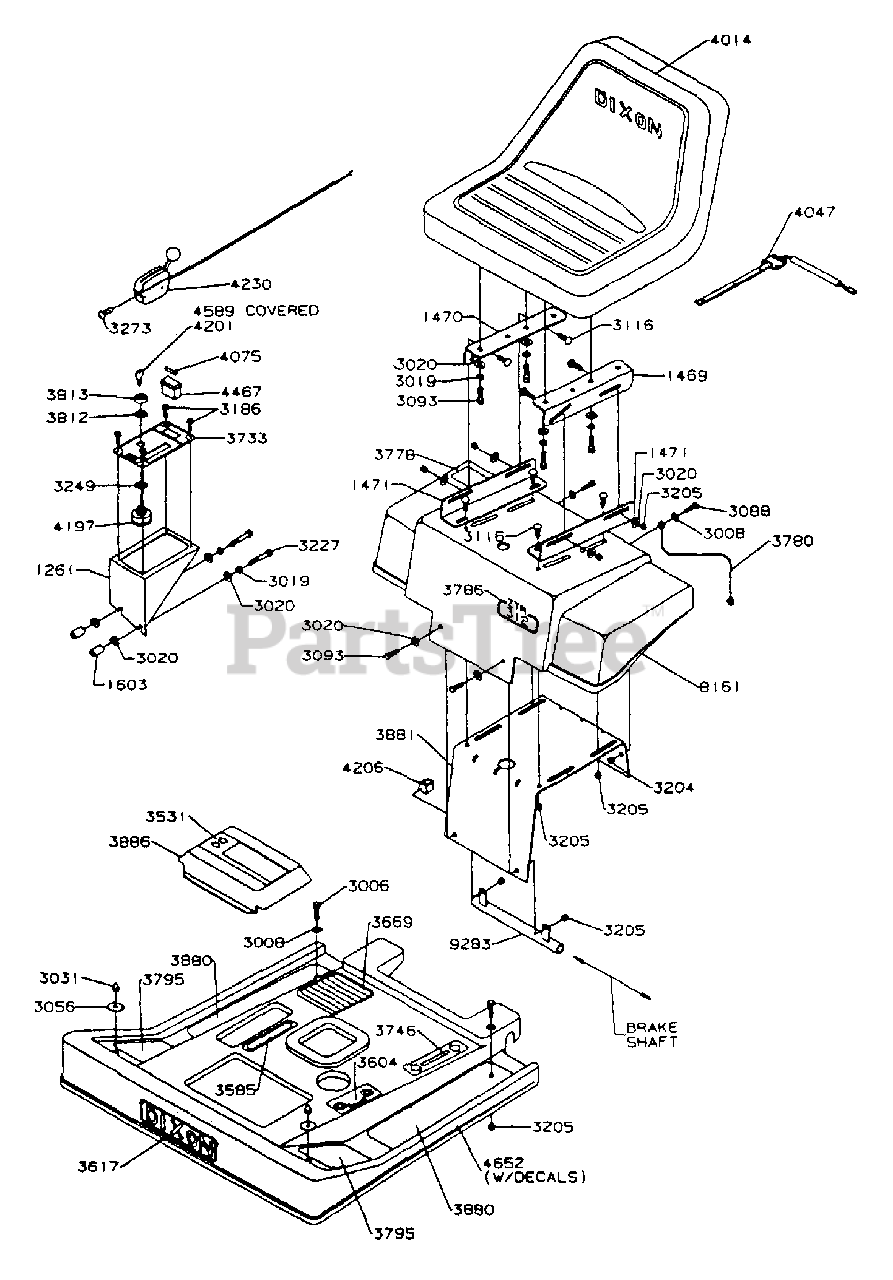

BODY ASSEMBLY Parts Diagram

  • Title

1261

1261

CONTROL BRACKET WLDT

$

$

Not available

1469

1469

LH SLIDE ANGLE

$

$

Not available

1470

1470

RH SLIDE ANGLE

$

$

Not available

1471

1471

SEAT SLIDE

$

$

Not available

1603

1603

BUSHING

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3733

Dixon 3733

Washer, Plain, .758 x 1.25 x .035

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3780

Dixon 3780

CABLE

$

$

Not available

3786

Dixon 3786

MODEL DECAL - 312

$

$

Not available

3795

3795

FLOOR PAD 4 X 8.00

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3880

Dixon 3880

FLOOR PAD - REAR

$

$

Not available

3881

Dixon 3881

SEAT FRAME 30/36

$

$

Not available

3886

Dixon 3886

BATTERY COVER

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4652

4652

30` LOWER BODY ASM

$

$

Not available

8161

8161

$

$

Not available

9283

Dixon 9283

SHAFT COLLAR WLDT

$

$

Not available
