ZTR 312 - Dixon Zero-Turn Mower (1990) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

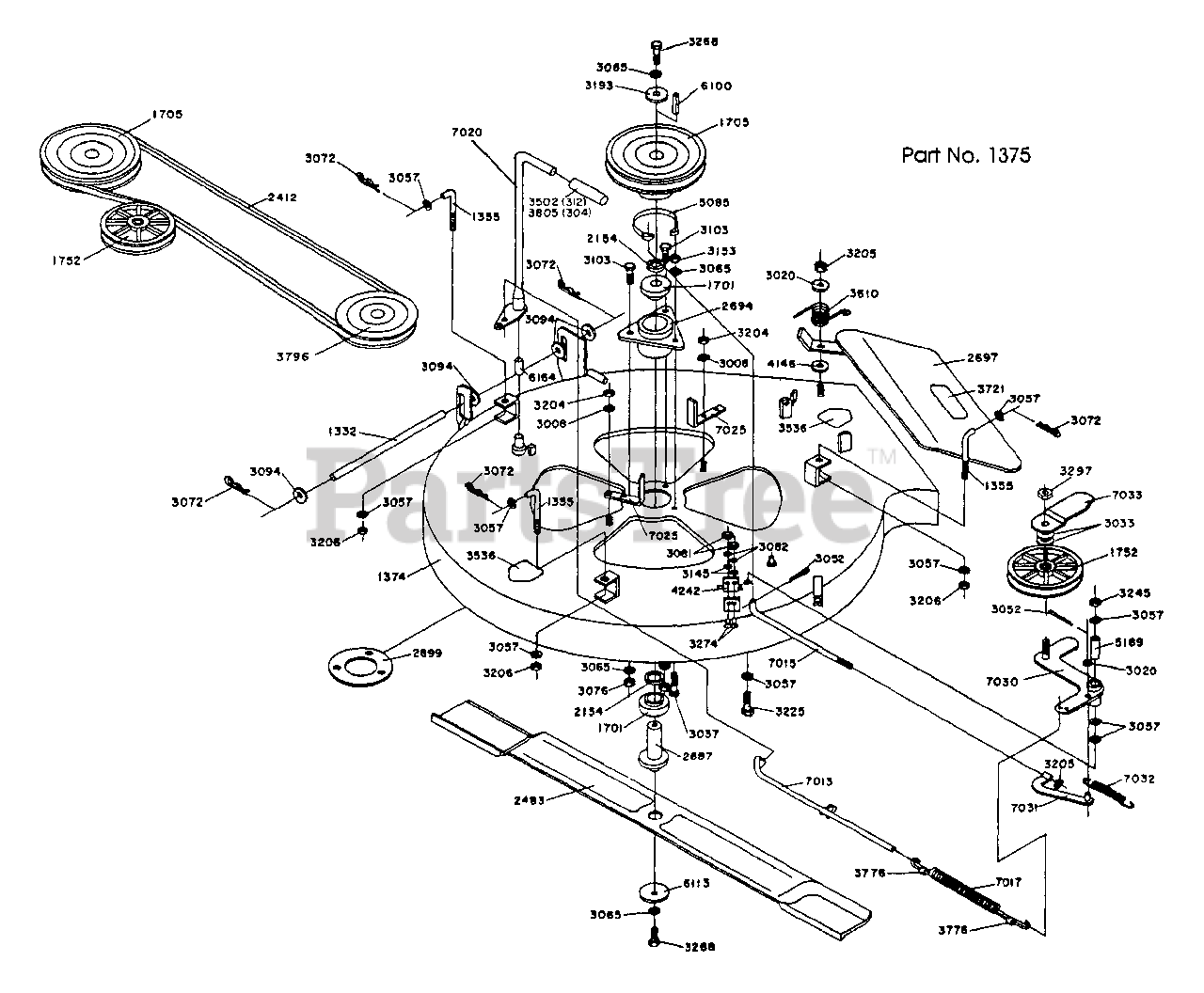

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1374

Dixon 1374

DECK SUB ASM (1374)

$

$

Not available

1375

Dixon 1375

R/B 7042 MOWER DECK ASM 30`

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1705

1705

V-PULLEY 6.5 DIA

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2412

2412

DECK DRIVE BELT

$

$

Not available

2483

2483

30` STD BLADE

$

$

Not available

2687

2687

R/B 1845 SHAFT WELDMENT

$

$

Not available

2694

2694

HUB WLDT MACH.

$

$

Not available

2697

2697

DEFLECTOR

$

$

Not available

2899

2899

STIFFENER PLATE

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3081

3081

HEX NUT 6-32

$

$

Not available

3082

3082

LOCKWASHER #6

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3103

3103

3/8-24 X 1 HHB GR5

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3153

Dixon 3153

NUT, JAM 3/8-24 HEX

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3274

3274

6-32X1/2 TRUSS HD PH

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3610

3610

DEFLECTOR SPRING

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3776

3776

POLY TUBE 1/4 DIA

$

$

Not available

3796

3796

PULLEY, ENGINE - DBL

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6164

6164

BUSH BRZ 5/8X3/4X1.6

$

$

Not available

7013

7013

ENGAGING ROD

$

$

Not available

7015

7015

L` ROD - 7 3/4`

$

$

Not available

7017

7017

SPRING - .75 X 10.43

$

$

Not available

7020

7020

HANDLE WLDT

$

$

Not available

7025

7025

BELT RETAINER

$

$

Not available

7030

7030

IDLER ARM WELDMENT

$

$

Not available

7031

7031

CAM WELDMENT

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available
