ZTR 312 - Dixon Zero-Turn Mower (1990) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

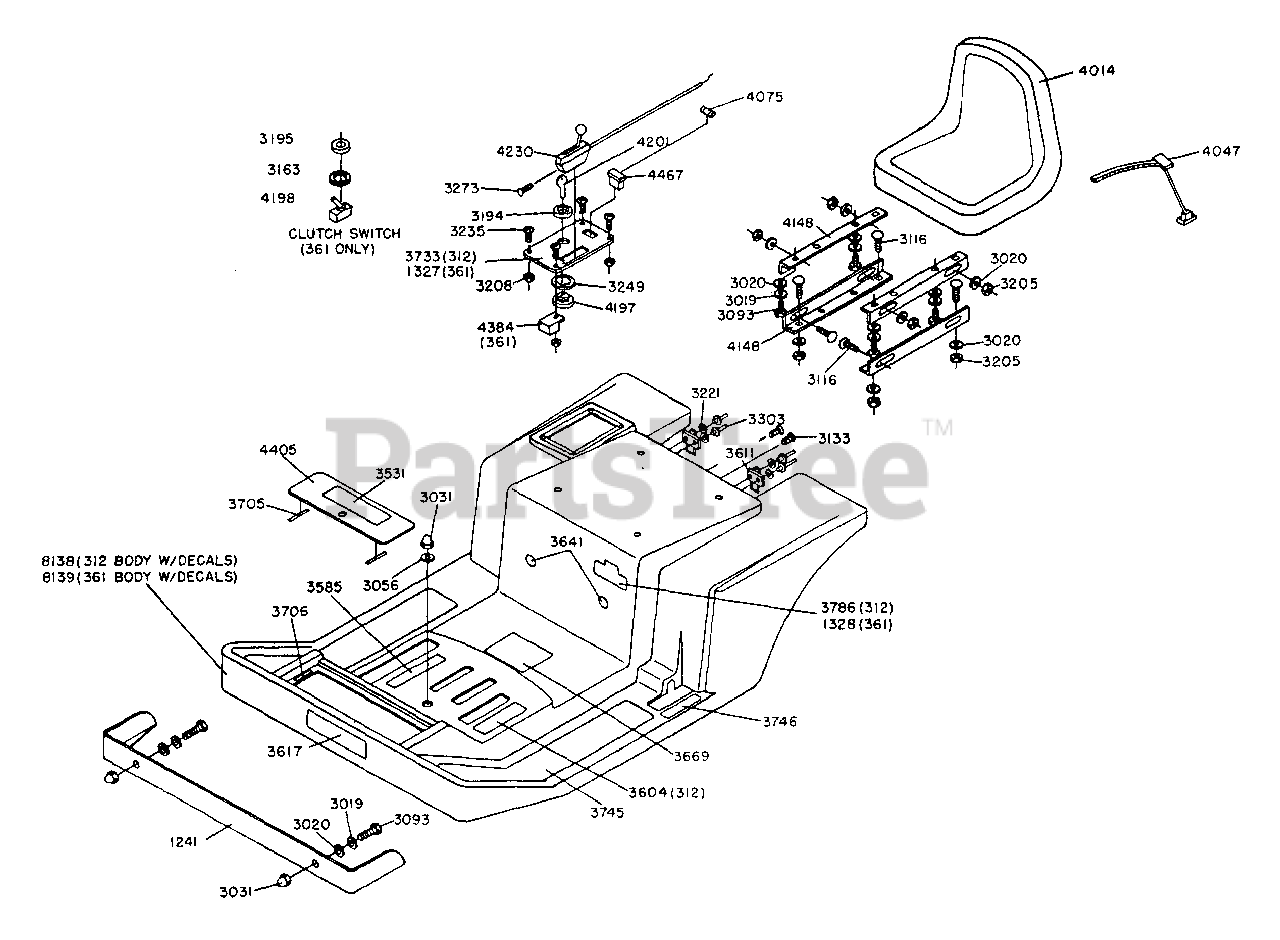

BODY ASSEMBLY Parts Diagram

  • Title

1241

1241

BUMPER - WELDED

$

$

Not available

1327

1327

CONTROL PANEL 36`

$

$

Not available

1328

1328

MODEL DECAL 361

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3194

Dixon 3194

R/B 8889 FACE NUT 5/8-32

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3604

3604

DECAL, BLADE DRIVE (3604)

$

$

Not available

3611

3611

LATCH

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3641

3641

BODY PLUG

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3733

Dixon 3733

Washer, Plain, .758 x 1.25 x .035

$

$

Not available

3745

3745

R/B 8889 FLOOR PAD 4 X 22

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3786

Dixon 3786

MODEL DECAL - 312

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4148

Dixon 4148

R/B 4148 SEAT BRACKET

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4384

4384

RELAY

$

$

Not available

4405

4405

BATTERY COVER ASSY

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

8138

8138

$

$

Not available

8139

8139

$

$

Not available
