ZTR 311 - Dixon Zero-Turn Mower (1987) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

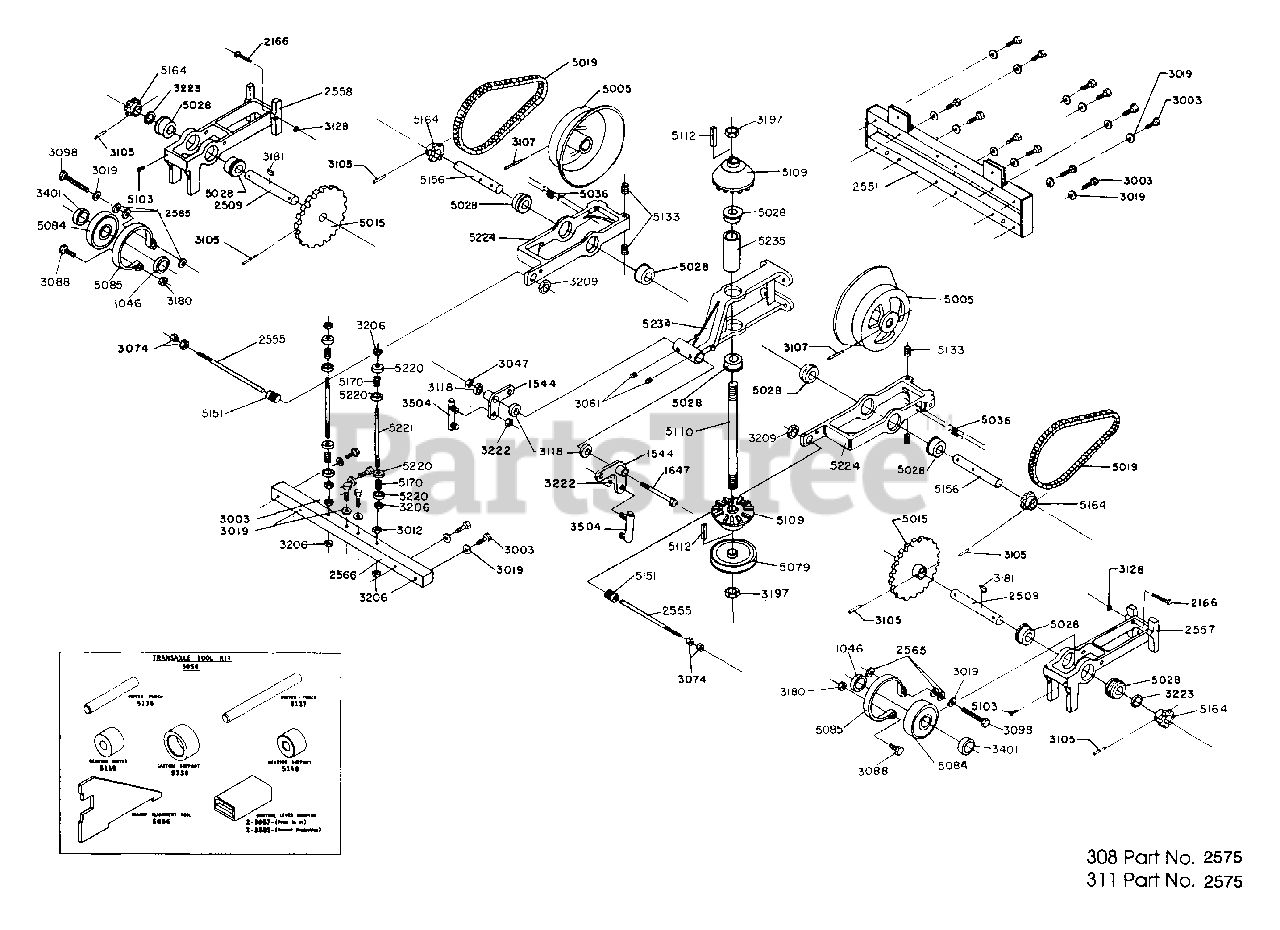

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1046

1046

LIFT TUBE SHORT

$

$

Not available

1544

1544

R/B 1636 BELLCRANK ASSY

$

$

Not available

1647

1647

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

2166

2166

PIVOT BOLT

$

$

Not available

2509

2509

SUPPORT SHAFT

$

$

Not available

2551

2551

$

$

Not available

2555

2555

TORQUE ROD

$

$

Not available

2557

2557

R/B 8672 SUPPORT LH MACHINED

$

$

Not available

2558

2558

R/B 8672 SUPPORT RH MACHINED

$

$

Not available

2565

2565

R/B 2565 SPACER 5/16 X .203

$

$

Not available

2566

2566

FRONT TUBE

$

$

Not available

2575

2575

TRANSAXLE ASM

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3180

Dixon 3180

1/4-20 HEX LOCKNUT

$

$

Not available

3181

3181

WOODRUFF KEY #605

$

$

Not available

3197

3197

R/B 3388 5/8-11 JAM LOCKNUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3222

3222

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3223

3223

WASHER 5/8IDX.063 TK

$

$

Not available

3401

3401

TUBE 7/8 X 5/8 X 3/4

$

$

Not available

3504

3504

R/B 8277 DOUBLE BALL JOINT

$

$

Not available

5005

5005

DISCUP-MACHINED

$

$

Not available

5015

5015

SPROCKET 24T-40RC

$

$

Not available

5019

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5054

5054

$

$

Not available

5056

5056

ALIGNMENT TOOL

$

$

Not available

5057

5057

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5084

5084

BRAKE DRUM

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5109

5109

CONE (1)

$

$

Not available

5110

5110

SHAFT - CONE FRAME

$

$

Not available

5112

Dixon 5112

NO LONGER AVAILABLE

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5136

5136

$

$

Not available

5137

5137

$

$

Not available

5138

5138

$

$

Not available

5139

5139

#3 TOOL(1.0X1.875OD)

$

$

Not available

5140

5140

BELT KEEPER KIT

$

$

Not available

5151

5151

R/B 5185 ADJUSTER TORQUE ROD

$

$

Not available

5156

5156

CRADLE SHAFT

$

$

Not available

5164

5164

R/B 5164 SPROCKET

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5220

5220

PLUG W/HOLE - FLAT

$

$

Not available

5221

Dixon 5221

POS. NEUTRAL ROD

$

$

Not available

5224

5224

R/B 8345 CRADLE MACHINED

$

$

Not available

5234

5234

R/B 8675 CONE FRAME MACHINED

$

$

Not available

5235

5235

SLEEVE 7/8 X 3.200

$

$

Not available

8505

8505

$

$

Not available
