ZTR 311 - Dixon Zero-Turn Mower (1987) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

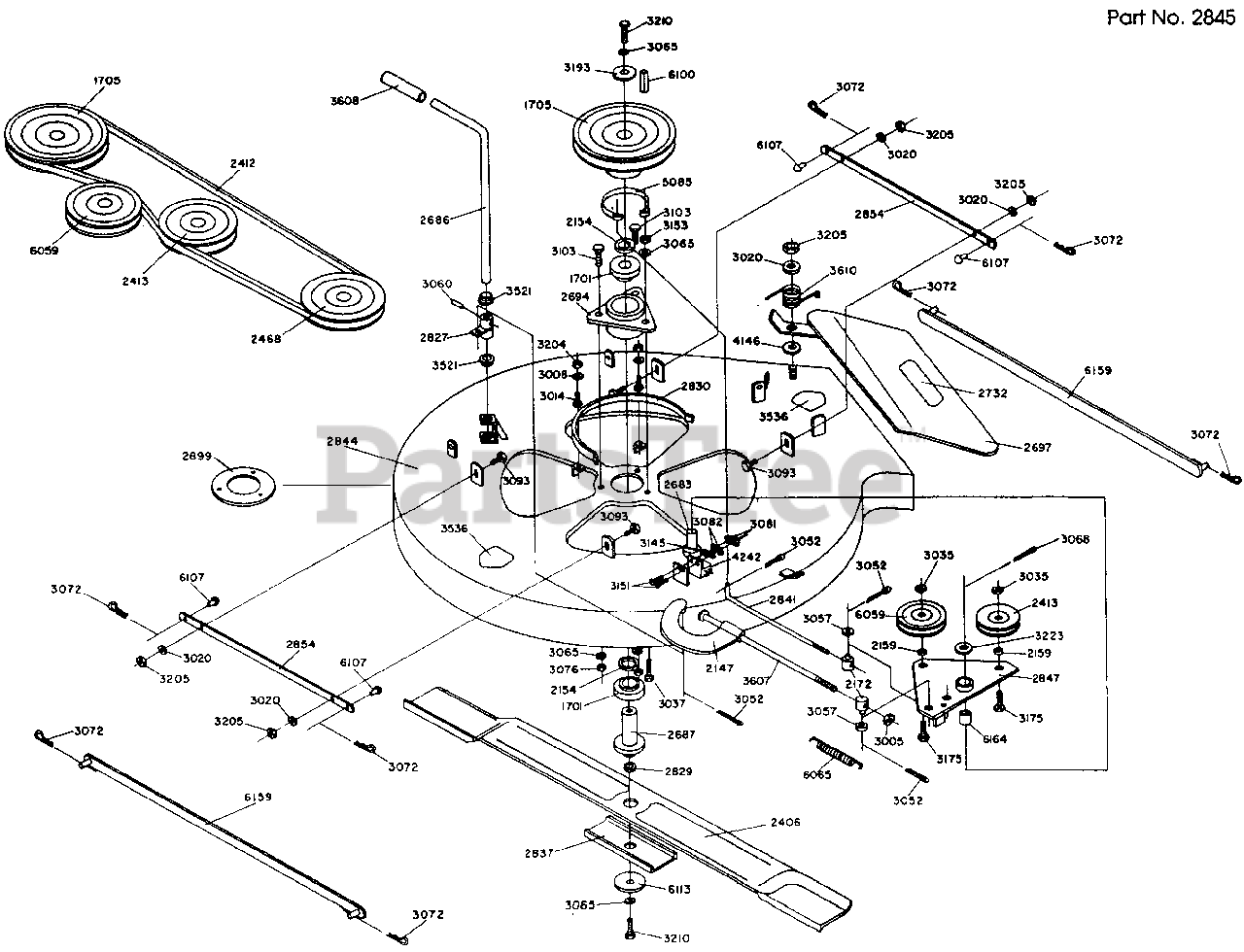

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1701

1701

BEARING-ECC LOCK

$

$

Not available

1705

1705

V-PULLEY 6.5 DIA

$

$

Not available

2147

2147

CONNECTING ARM MACH

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2406

2406

BLADE, STD 30

$

$

Not available

2412

2412

DECK DRIVE BELT

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

2468

2468

R/B 2482 DBL ENG PULLEY 30`

$

$

Not available

2683

2683

IDLER STUD

$

$

Not available

2686

2686

ENGAGING ROD

$

$

Not available

2687

2687

R/B 1845 SHAFT WELDMENT

$

$

Not available

2694

2694

HUB WLDT MACH.

$

$

Not available

2697

2697

DEFLECTOR

$

$

Not available

2732

2732

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

2827

2827

$

$

Not available

2829

2829

SPACER 13/16 X 11/16

$

$

Not available

2830

2830

BELT KEEPER WLDT

$

$

Not available

2837

2837

$

$

Not available

2841

2841

L-ROD 10.5`

$

$

Not available

2844

2844

MOWER DECK WELDMENT

$

$

Not available

2845

2845

$

$

Not available

2847

2847

$

$

Not available

2854

2854

LIFT ATTACH

$

$

Not available

2899

2899

STIFFENER PLATE

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3035

Dixon 3035

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3060

3060

ROLLPIN 3/16 DIA X 3/4

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3081

3081

HEX NUT 6-32

$

$

Not available

3082

3082

LOCKWASHER #6

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3103

3103

3/8-24 X 1 HHB GR5

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3151

3151

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3153

Dixon 3153

NUT, JAM 3/8-24 HEX

$

$

Not available

3175

3175

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3210

3210

3/8-24 X 1-1/2 HHB G8 W/N

$

$

Not available

3223

3223

WASHER 5/8IDX.063 TK

$

$

Not available

3521

3521

ENG CAM MT BUSHING

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3607

3607

ENGAGING LINKAGE

$

$

Not available

3608

3608

HANDLE GRIP

$

$

Not available

3610

3610

DEFLECTOR SPRING

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6159

6159

STABILIZER ARM

$

$

Not available

6164

6164

BUSH BRZ 5/8X3/4X1.6

$

$

Not available
