ZTR 308 - Dixon Zero-Turn Mower (1986) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

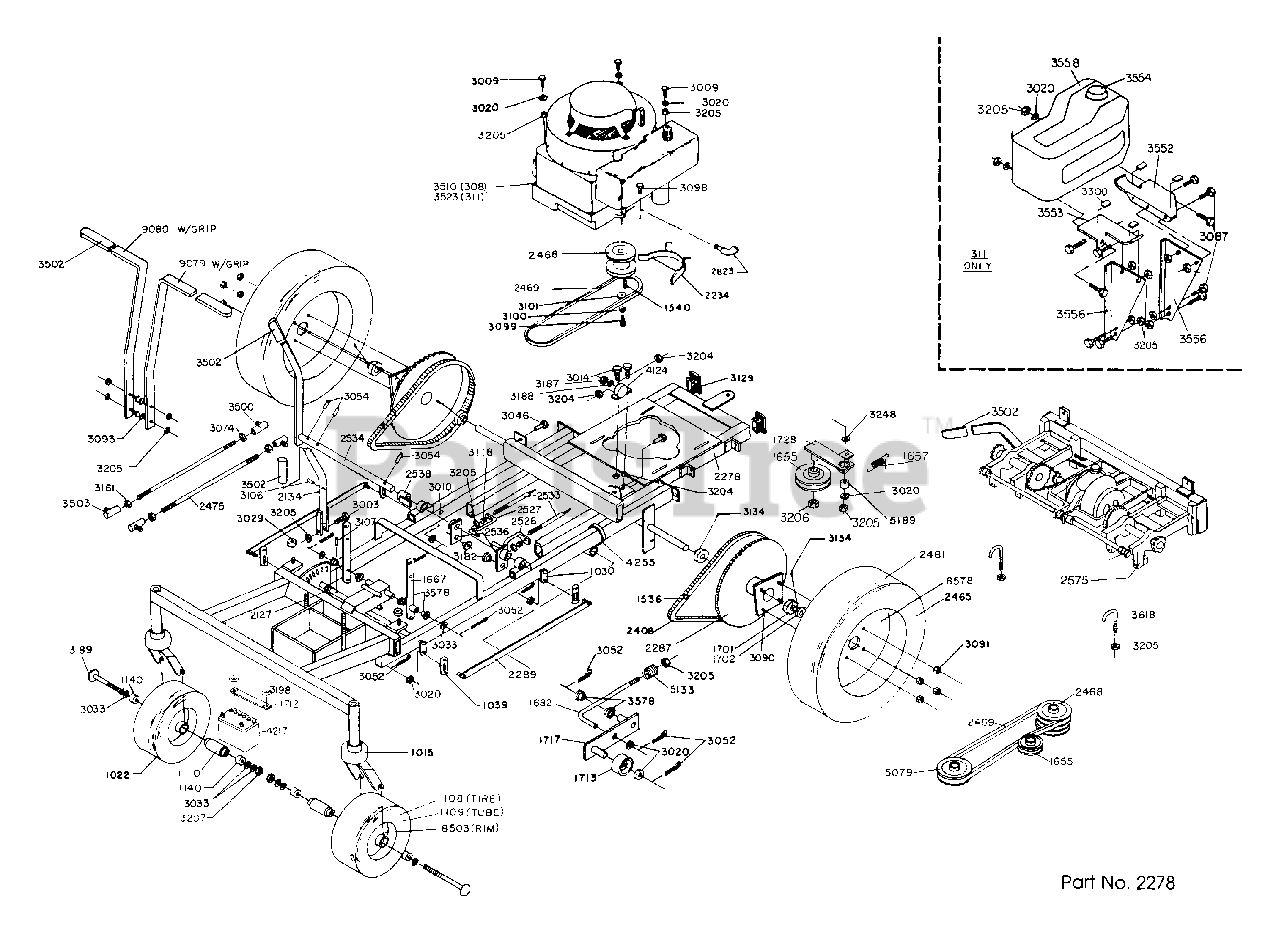

CHASSIS ASSEMBLY Parts Diagram

  • Title

1015

1015

CASTER WLDT

$

$

Not available

1022

1022

CASTER WHEEL & TIRE

$

$

Not available

1030

1030

UPPER LIFT LINK REAR

$

$

Not available

1039

1039

LWR LIFT LINK

$

$

Not available

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1110

1110

CASTER AXLE BUSHING

$

$

Not available

1140

1140

CASTER WHEEL BEARING

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1540

1540

ENGINE SHAFT KEY

$

$

Not available

1655

1655

R/B 10294 IDLER FLAT 3`

$

$

Not available

1657

1657

SPRING

$

$

Not available

1667

1667

LWR.CONTROL LEVER WL

$

$

Not available

1682

1682

L` ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1712

1712

BATTERY STRAPW/COVER

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1717

1717

ARM WELDMENT DRILLED

$

$

Not available

1728

1728

$

$

Not available

2127

2127

COMP SPRING 1.09 X 2

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2234

2234

R/B 8160 BELT KEEPER WLDT

$

$

Not available

2278

2278

30" FRAME ASSEMBLY

$

$

Not available

2287

2287

R/B 8342 WHEEL HUB ASSEMBLY

$

$

Not available

2289

2289

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2465

2465

REAR TIRE

$

$

Not available

2468

2468

R/B 2482 DBL ENG PULLEY 30`

$

$

Not available

2469

2469

V-BELT 30`

$

$

Not available

2475

2475

CONTROL ROD

$

$

Not available

2481

2481

R/B 13344 REAR WHEEL & TIRE

$

$

Not available

2526

2526

BRAKE LINK LH

$

$

Not available

2527

2527

BRAKE LINK RH

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2534

2534

$

$

Not available

2536

2536

$

$

Not available

2538

2538

STOP MACH

$

$

Not available

2575

2575

TRANSAXLE ASM

$

$

Not available

2823

2823

R/B 12237 OIL DRAIN ASSY

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3010

3010

1/2DIAX2 1/4RD HD RV

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3099

3099

7/16 20UNFX3/4HHB C5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3129

3129

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3189

Dixon 3189

1/2-13X5-1/2 CAR BLT

$

$

Not available

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3500

3500

R/B 8284 5/16 24BALLJNT RH TH

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3503

3503

R/B 8285 5/16 24BALLJNT LH TH

$

$

Not available

3510

3510

$

$

Not available

3523

3523

$

$

Not available

3552

3552

R/B 1385 TANK MOUNT BRKT LONG

$

$

Not available

3553

3553

R/B 1384 TANK MOUNT BRKTSHORT

$

$

Not available

3554

3554

FUEL GAUGE

$

$

Not available

3556

3556

TANK SUPPORT-LH

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3618

3618

J-BOLT5/16-18X3.5 30

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4255

4255

WIRE TIE

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

8503

8503

CASTER RIM

$

$

Not available

8578

8578

16` WHEEL

$

$

Not available

9079

9079

UP CONT LEVER ASSY L

$

$

Not available

9080

9080

UP CONT LEVER ASSY R

$

$

Not available
