ZTR 308 - Dixon Zero-Turn Mower (1981) MOWER DECK ASSEMBLY 30" Parts Diagram

Zero-Turn Mower

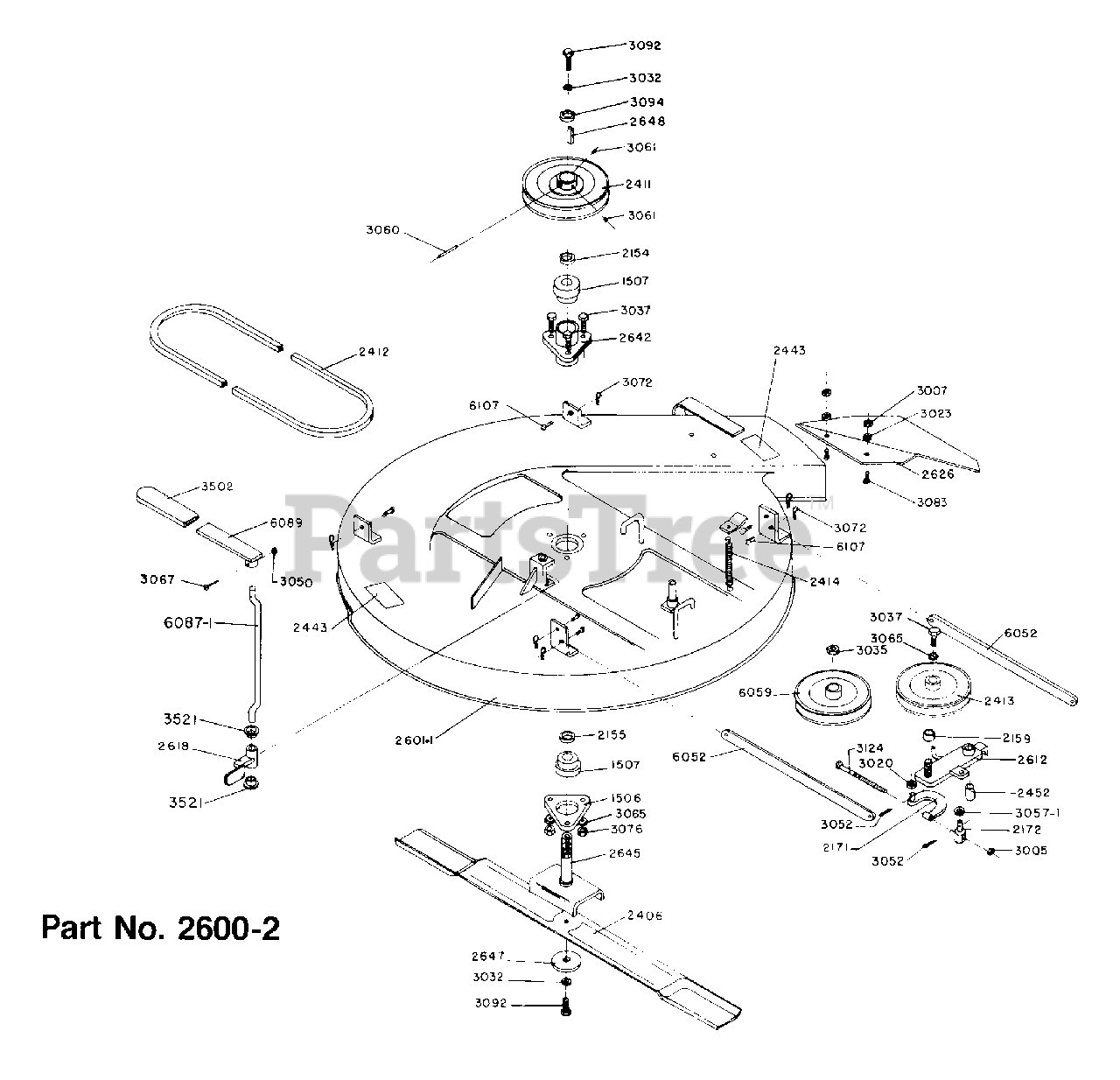

MOWER DECK ASSEMBLY 30" Parts Diagram

  • Title

1506

1506

HUB FLANGE

$

$

Not available

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2155

2155

HUB BEARING SPACER

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2171

2171

R/B 2147 CONNECTING ARM

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2406

2406

BLADE, STD 30

$

$

Not available

2411

2411

MOWER DECK V-PULLEY

$

$

Not available

2412

2412

DECK DRIVE BELT

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

2414

2414

IDLER TENSION SPR

$

$

Not available

2443

2443

R/B 3536 DECK CAUTION DECAL

$

$

Not available

2452

2452

ENG IDLER STUD BUSH.

$

$

Not available

2600-2

2600-2

$

$

Not available

2601-1

2601-1

$

$

Not available

2612

2612

ENG IDLER WLDT

$

$

Not available

2618

Dixon 2618

ENG CAM WLDT

$

$

Not available

2626

2626

DEFLECTOR SHEET

$

$

Not available

2642

2642

MOWER DECK HUB MACH

$

$

Not available

2645

2645

BLADE SHAFT WLDT

$

$

Not available

2647

2647

BLADE WASHER

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3035

Dixon 3035

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057-1

3057-1

$

$

Not available

3060

3060

ROLLPIN 3/16 DIA X 3/4

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3067

3067

R/B 3381 10-24UNC X1RDHDSCREW

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3083

3083

1/4-20UNCX1/2RDHDSCR

$

$

Not available

3092

3092

R/B 3200 1/2 20UNFX1 1/4HHBC5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3124

3124

5/16-18 X 6 HHB GR5

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3521

3521

ENG CAM MT BUSHING

$

$

Not available

6052

6052

STABILIZER ARM

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6087-1

6087-1

$

$

Not available

6089

6089

ENG HANDLE WLDT

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available
