ZTR 304 - Dixon Zero-Turn Mower (1992) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

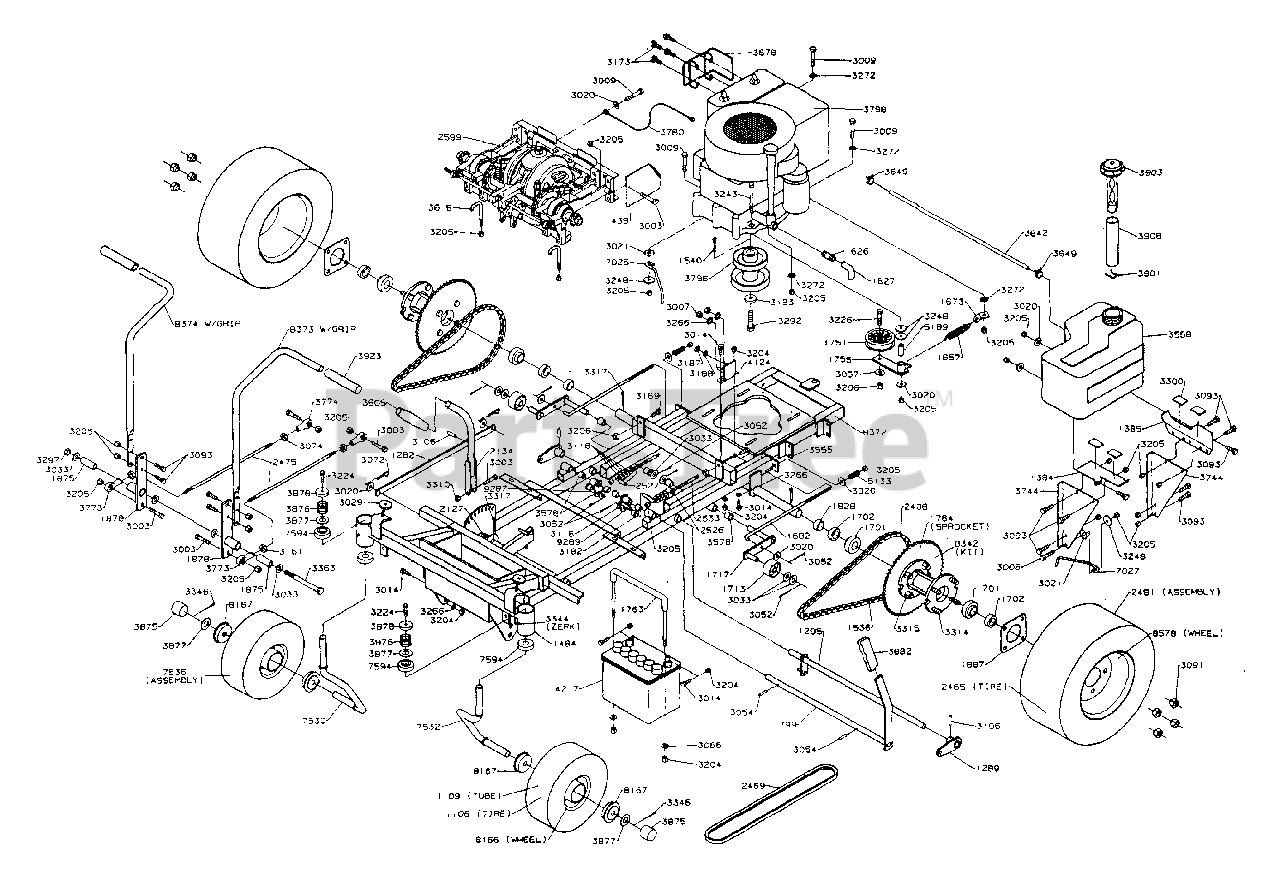

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1282

1282

TIE BAR

$

$

Not available

1289

1289

LIFT ARM DRILLED

$

$

Not available

1295

1295

SHAFT-REAR DECK WLDT

$

$

Not available

1384

1384

TANK MT BRKT (SHORT)

$

$

Not available

1385

1385

TANK MT BRKT (LONG)

$

$

Not available

1438

1438

$

$

Not available

1484

1484

CASTER TUBE

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1540

1540

ENGINE SHAFT KEY

$

$

Not available

1626

Dixon 1626

3/8X2 GALV PIPE NIPP

$

$

Not available

1627

1627

R/B 12237 3/8 GALV PIPE ELL

$

$

Not available

1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1682

1682

L` ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1717

1717

ARM WELDMENT DRILLED

$

$

Not available

1751

1751

PLASTIC IDLER 3`FLAT(R/B 10294

$

$

Not available

1755

1755

IDLER WELDMENT

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1799

1799

$

$

Not available

1828

1828

AXLE SPACER

$

$

Not available

1875

1875

BUSHING

$

$

Not available

1878

1878

LOWER CONTROL-MACH

$

$

Not available

1887

1887

WHEEL HUB SPACER

$

$

Not available

2127

2127

COMP SPRING 1.09 X 2

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2465

2465

REAR TIRE

$

$

Not available

2469

2469

V-BELT 30`

$

$

Not available

2475

2475

CONTROL ROD

$

$

Not available

2481

2481

R/B 13344 REAR WHEEL & TIRE

$

$

Not available

2526

2526

BRAKE LINK LH

$

$

Not available

2527

2527

BRAKE LINK RH

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2599

2599

R/B 926 TRANSAXLE ASSEMBLY

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3272

3272

5/16 INT TOOTH LW

$

$

Not available

3292

3292

7/16-20NFX1 3/4 HHB

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3346

Dixon 3346

R/B 3391 1/8DIAX1-1/4 COT PIN

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3555

3555

TANK MOUNT

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3618

3618

J-BOLT5/16-18X3.5 30

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3678

3678

MUFFLER GUARD

$

$

Not available

3744

3744

TANK SUPPORT BRACKET

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3780

Dixon 3780

CABLE

$

$

Not available

3796

3796

PULLEY, ENGINE - DBL

$

$

Not available

3798

3798

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3842

Dixon 3842

R/B 3424 HOSE 1/4 X 34.5

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3901

Dixon 3901

Spacer, .635 x.875 x .755

$

$

Not available

3903

Dixon 3903

R/B 3554 FUEL CAP ASSEMBLY

$

$

Not available

3908

3908

$

$

Not available

3923

3923

HAND GRIP

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

7026

7026

BELT KEEPER RH

$

$

Not available

7027

7027

BELT KEEPER LH

$

$

Not available

7530

7530

RH CASTER AXLE KIT

$

$

Not available

7532

7532

LH CASTER AXLE KIT

$

$

Not available

7536

7536

R/B 10040 WHEEL & TIRE ASM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

8166

8166

R/B 10140 CASTER RIM

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8342

8342

R/B 8342 WHEEL HUB ASM 30 36

$

$

Not available

8372

8372

$

$

Not available

8373

8373

LH CONTROL LEVER ASM

$

$

Not available

8374

8374

RH CONTROL LEVER ASM

$

$

Not available

8578

8578

16` WHEEL

$

$

Not available

9287

9287

$

$

Not available

9289

9289

BRAKE ARM/STOP MACH

$

$

Not available
