ZTR 304 - Dixon Zero-Turn Mower (1991) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

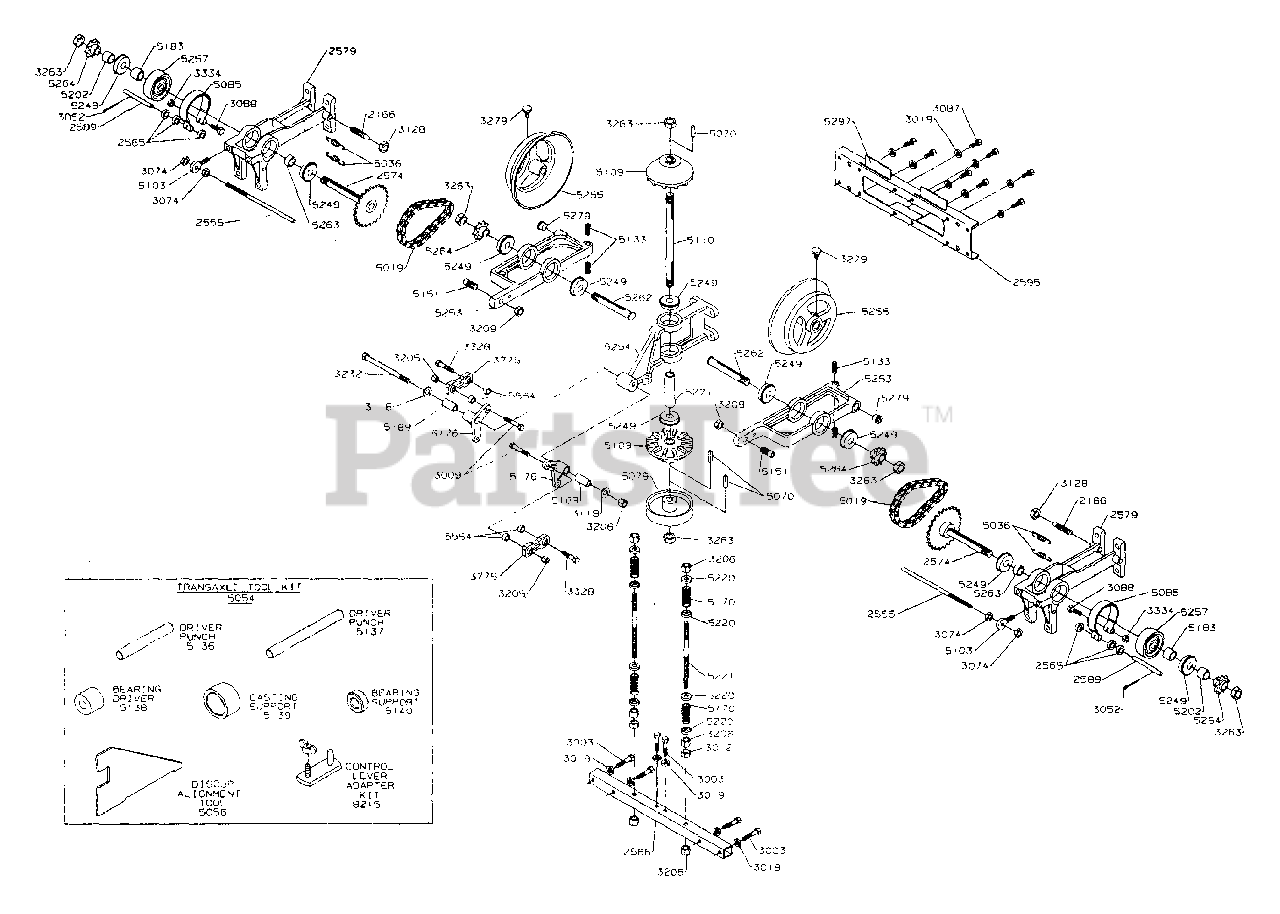

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

2166

2166

PIVOT BOLT

$

$

Not available

2555

2555

TORQUE ROD

$

$

Not available

2565

2565

R/B 2565 SPACER 5/16 X .203

$

$

Not available

2566

2566

FRONT TUBE

$

$

Not available

2574

2574

24T SPROCKET WLDT

$

$

Not available

2579

2579

R/B 2588 MACHINED SUPPORT LH

$

$

Not available

2589

2589

ROD - PLATED

$

$

Not available

2595

Dixon 2595

BACK PLT WLDT 30/36

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3232

Dixon 3232

PINION

$

$

Not available

3263

3263

5/8-11 THIN PROF NY

$

$

Not available

3279

3279

SET SCREW W/HEX HEAD

$

$

Not available

3328

3328

5/16-24X1-1/2HHB GR5

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3775

Dixon 3775

DOUBLE BALL JOINT

$

$

Not available

5019

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5054

5054

$

$

Not available

5056

5056

ALIGNMENT TOOL

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5109

5109

CONE (1)

$

$

Not available

5110

5110

SHAFT - CONE FRAME

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5136

5136

$

$

Not available

5137

5137

$

$

Not available

5138

5138

$

$

Not available

5139

5139

#3 TOOL(1.0X1.875OD)

$

$

Not available

5140

5140

BELT KEEPER KIT

$

$

Not available

5151

5151

R/B 5185 ADJUSTER TORQUE ROD

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5176

5176

BELCRANK

$

$

Not available

5183

Dixon 5183

SPACER

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5202

Dixon 5202

SPACER 5/8 X 1/4

$

$

Not available

5220

5220

PLUG W/HOLE - FLAT

$

$

Not available

5221

Dixon 5221

POS. NEUTRAL ROD

$

$

Not available

5249

5249

5/8 BEARING W/SNAP

$

$

Not available

5253

5253

CRADLE - MACHINED

$

$

Not available

5254

5254

CONE FRAME-MACHINED

$

$

Not available

5255

5255

R/B 13408 DISCUP

$

$

Not available

5257

5257

BRAKE DRUM

$

$

Not available

5262

5262

CRADLE SHAFT

$

$

Not available

5263

5263

SPACER - .458

$

$

Not available

5264

5264

R/B 8413 SPROCKET - 9T

$

$

Not available

5271

5271

SPACER 3.115

$

$

Not available

5279

Dixon 5279

BUSHING, PIVOT

$2.49

$

Usually ships in 3-10 days

0

5297

Dixon 5297

NO LONGER AVAILABLE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

8215

8215

LEVER ADAPTER KIT

$

$

Not available
