ZTR 3014 - Dixon Zero-Turn Mower (2002) CHASSIS Parts Diagram

Zero-Turn Mower

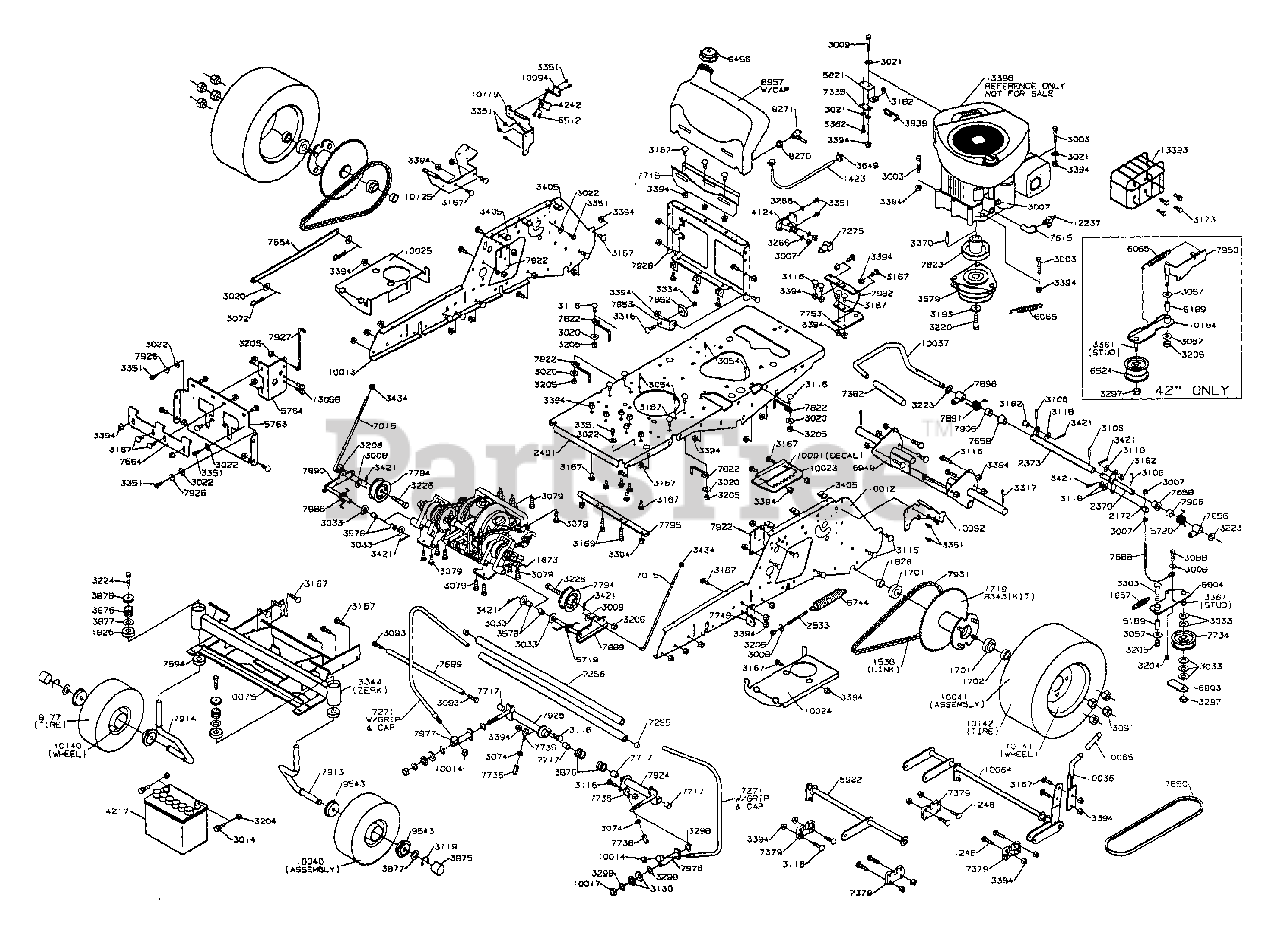

CHASSIS Parts Diagram

  • Title

1246

1246

5/16-18 X 1-1/4 CAR BLT

$

$

Not available

1423

Dixon 1423

Washer, Plain, .632 x 1.00 x .026

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1719

1719

WHEEL HUB MACHINED

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1828

1828

AXLE SPACER

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2370

2370

BRAKE SHAFT PLATED

$

$

Not available

2373

2373

WLDT. TUBE DRILLED

$

$

Not available

2491

2491

CHANNEL - FRAME

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3108

3108

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3223

3223

WASHER 5/8IDX.063 TK

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3434

3434

5/16-18 LC ACRN NUT

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5719

5719

IDLER SPRING LH

$

$

Not available

5720

5720

IDLER SPRING UPPER LH

$

$

Not available

5763

5763

SEAT SUPPORT FRONT

$

$

Not available

5764

5764

CONTROL TUBE SUPPORT

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5922

5922

WLDT . FRONT DECK SHAFT

$

$

Not available

5949

5949

AXLE WLDT 36`

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6455

6455

FUEL CAP (TIPS)

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

6524

6524

IDLER PULLEY

$

$

Not available

6744

6744

SPRING

$

$

Not available

6803

6803

BELT GUARD

$

$

Not available

7015

7015

L` ROD - 7 3/4`

$

$

Not available

7255

7255

CAP

$

$

Not available

7256

7256

SLEEVE

$

$

Not available

7271

7271

CONTROL LEVER ASM.

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7335

7335

GROUND PLATE

$

$

Not available

7379

7379

R/B 7379 SHAFT PLATE

$

$

Not available

7382

7382

BAR SLEEVE

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7615

7615

3/8` STREET EL

$

$

Not available

7650

7650

T/A DRIVE BELT

$

$

Not available

7654

7654

TIE BAR

$

$

Not available

7658

7658

BUSHING

$

$

Not available

7664

7664

SEAT PLATE HINGE

$

$

Not available

7688

7688

BRAKE CABLE

$

$

Not available

7689

7689

CONTROL LEVER SHAFT

$

$

Not available

7715

7715

TANK SUPPORT BRKT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7734

7734

IDLER 3` FLAT

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7753

7753

HITCH

$

$

Not available

7794

7794

IDLER PULLEY

$

$

Not available

7795

7795

BRACE

$

$

Not available

7822

7822

BELT GUIDE

$

$

Not available

7823

7823

ENGINE PULLEY

$

$

Not available

7852

7852

CABLE KEEPER

$

$

Not available

7853

7853

BRACKET CABLE KEEPER

$

$

Not available

7886

7886

IDLER SPRING

$

$

Not available

7889

7889

IDLER ARM LH PLATED

$

$

Not available

7890

7890

IDLER ARM RH PLATED

$

$

Not available

7891

7891

IDLER SPRING UPPER RH

$

$

Not available

7896

7896

LOCKING TAB PLATED

$

$

Not available

7906

7906

TUBE PLATED 5/8 X 7/8

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

7922

7922

BRACKET CONT. TUBE

$

$

Not available

7924

7924

CONTROL TUBE WLDT.-LH

$

$

Not available

7926

7926

LEVER STOP

$

$

Not available

7927

7927

ROD

$

$

Not available

7928

7928

PLATE SUPPORT

$

$

Not available

7931

7931

R/B 13746 DR. CHAIN ASSY

$

$

Not available

7950

7950

WLDT. IDLER BRACKET

$

$

Not available

7976

7976

WLDT CONT. LEVER LH

$

$

Not available

7977

7977

WLDT CONT. LEVER RH

$

$

Not available

7982

7982

BRACKET-HITCH

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8271

8271

TANK FUEL VALVE # 8271

$

$

Not available

8804

8804

TRANS IDLER W/STUD

$

$

Not available

8957

8957

FUEL TANK PLASTIC

$

$

Not available

9543

9543

CASTER WHEEL BEARING

$

$

Not available

10012

10012

SIDE FRAME LH

$

$

Not available

10013

10013

SIDE FRAME RH

$

$

Not available

10014

Dixon 10014

1/2-13HEX NUT W/NYL

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10023

10023

DECK LIFT QUADRANT

$

$

Not available

10024

10024

SUPPORT LOWER BODY LH

$

$

Not available

10025

10025

SUPPORT LOWER BODY RH

$

$

Not available

10036

10036

HANDLE DECK LIFT

$

$

Not available

10037

10037

BRAKE HANDLE

$

$

Not available

10040

10040

CASTER WHEEL & TIRE

$

$

Not available

10041

10041

REAR WHEEL & TIRE

$

$

Not available

10064

10064

LIFT SHAFT WLDT. `Z`

$

$

Not available

10065

10065

GRIP

$

$

Not available

10075

10075

FRONT FRAME WLDT.

$

$

Not available

10091

10091

DECAL, CUT HEIGHT

$

$

Not available

10092

10092

FENDER SUPPORT LH

$

$

Not available

10094

10094

SWITCH MOUNT

$

$

Not available

10119

10119

FENDER SUPPORT WLDT. RH

$

$

Not available

10125

10125

CONTROL PANEL MT.BRKT.

$

$

Not available

10140

10140

CASTER WHEEL

$

$

Not available

10141

10141

REAR WHEEL-BLACK

$

$

Not available

10142

10142

REAR TIRE

$

$

Not available

10184

10184

IDLER WLDT W/STUD

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

13058

13058

5/16-18X5/8HHCS

$

$

Not available

13393

13393

MUFFLER GUARD

$

$

Not available

13396

13396

$

$
