ZTR 3 - Dixon Zero-Turn Mower (1974) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

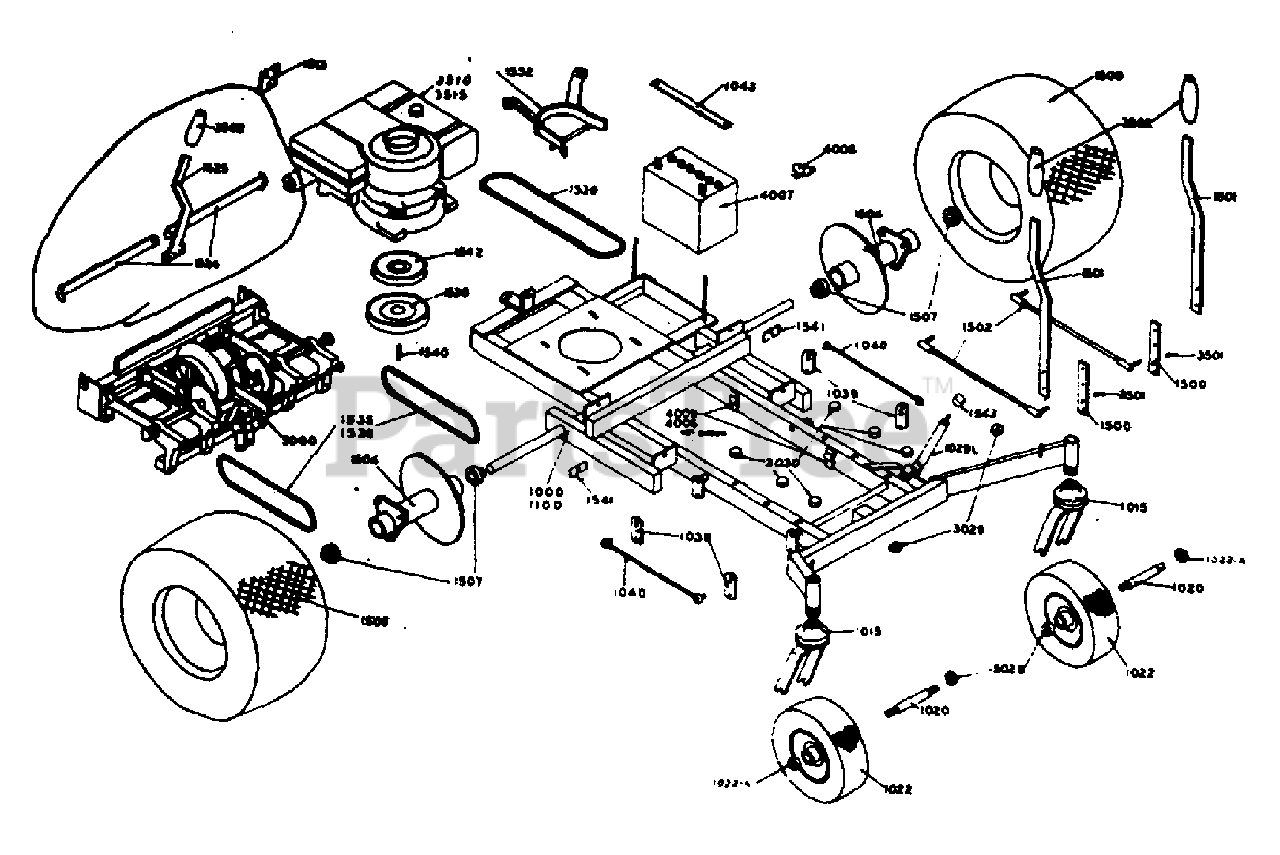

CHASSIS ASSEMBLY Parts Diagram

  • Title

1000

FRAME WLDT 42 IN

$

$

Not available

1015

CASTER WLDT

$

$

Not available

1020

R/B 8502 CASTER AXLE

$

$

Not available

1022

CASTER WHEEL & TIRE

$

$

Not available

1029

$

$

Not available

1039

LWR LIFT LINK

$

$

Not available

1039

LWR LIFT LINK

$

$

Not available

1040

R/B 1094 LIFT TIE ROD WLDT

$

$

Not available

1043

BATTERY STRAP

$

$

Not available

Dixon 1100

PLATE SLOT

$

$

Not available

1500

$

$

Not available

1502

CONTROL ROD ASSY

$

$

Not available

1504

WHEEL HUB

$

$

Not available

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1509

REPLACE KIT-WHEEL

$

$

Not available

1513

$

$

Not available

1524

$

$

Not available

1525

$

$

Not available

1535

#40 86-PI DR CHAIN

$

$

Not available

1536

#40 RC CONN LINK

$

$

Not available

1538

R/B 1635 V PULLEY

$

$

Not available

1539

TRANSAXLE DRIVE BELT

$

$

Not available

1540

ENGINE SHAFT KEY

$

$

Not available

1541

R/B 2222 TRANSAXLE SHIM

$

$

Not available

Dixon 1542

Bearing, Flange

$

$

Not available

Dixon 1543

LIFT KNOB

$

$

Not available

1552

BELT KEEPER WLDT

$

$

Not available

3029

FRONT GROMMET

$

$

Not available

3030

$

$

Not available

3501

NYLON BUSHING

$

$

Not available

3502

HAND GRIP

$

$

Not available

3510

$

$

Not available

3515

$

$

Not available

3516

$

$

Not available

4007

R/B 4217 BATTERY

$

$

Not available

4008

SOLENOID

$

$

Not available

4009

WIRE CLIP

$

$

Not available

5000

R/B 929 TRANSAXLE ASSY

$

$

Not available

5028

TRANSAXLE BEARING

$

$

Not available

1022A

$

$

Not available

1501L

$

$

Not available

1501R

$

$

Not available

4006-1

$

$

Not available

4006-2

$

$

Not available

4006-3

$

$

Not available

4006-4

$

$

Not available

4006-5

$

$

Not available

4006-6

$

$

Not available

4006-7

$

$

Not available
