ZTR 2301 - Dixon Zero-Turn Mower (1996) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

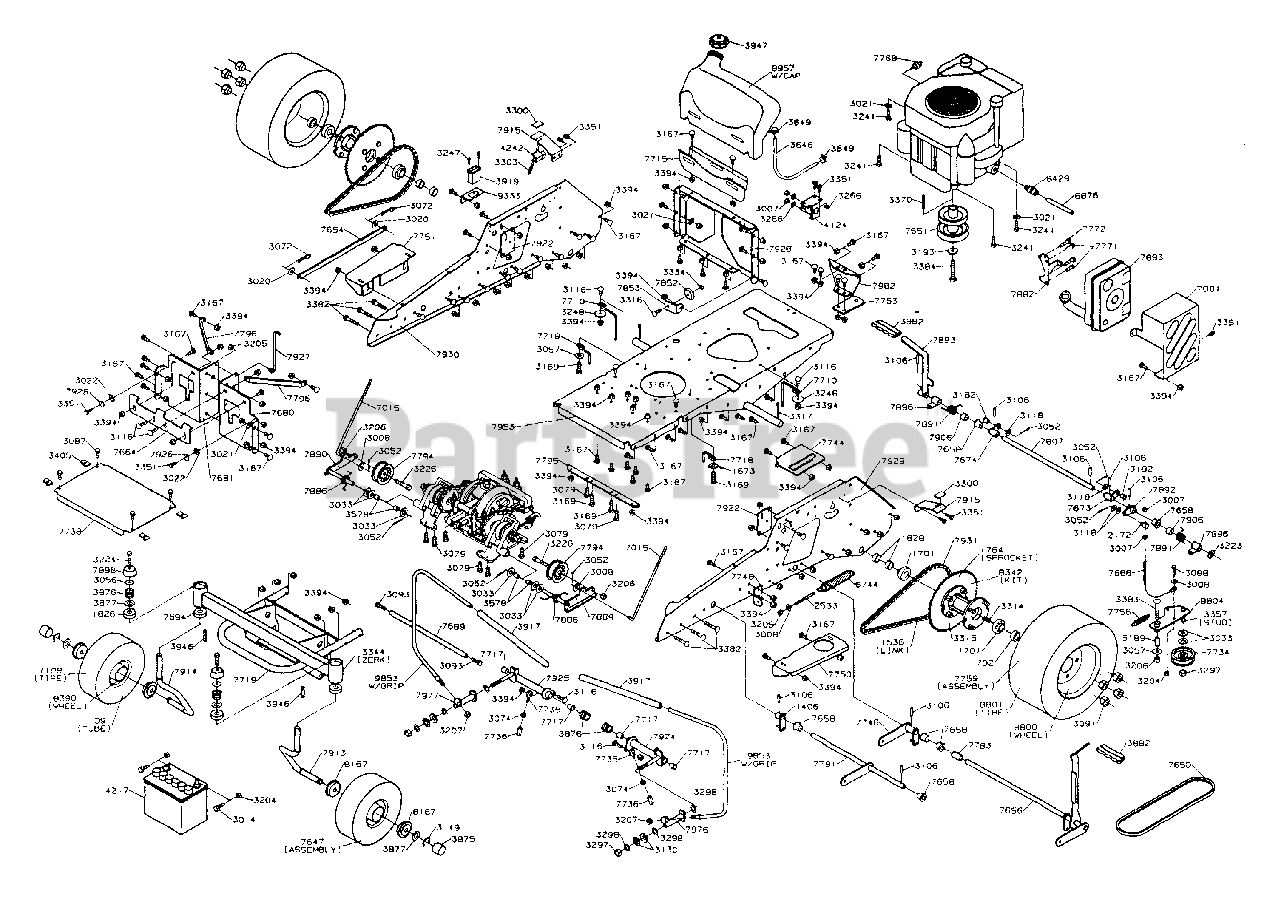

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1406

1406

LIFT ARM DRILLED

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1828

1828

AXLE SPACER

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3223

3223

WASHER 5/8IDX.063 TK

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3382

3382

5/16-18X1-3/4 CAR BLT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3384

Dixon 3384

M10X1.5X60 HHB GR8.8

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

3946

3946

CLIP - 2.06

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6744

6744

SPRING

$

$

Not available

7015

7015

L` ROD - 7 3/4`

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7647

7647

WHEEL & TIRE ASM

$

$

Not available

7650

7650

T/A DRIVE BELT

$

$

Not available

7651

7651

PULLEY ENGINE - 30`

$

$

Not available

7656

7656

REAR DECK SHAFT WLDT

$

$

Not available

7658

7658

BUSHING

$

$

Not available

7664

7664

SEAT PLATE HINGE

$

$

Not available

7673

7673

BRAKE ARM DRILLED LH

$

$

Not available

7674

7674

BRAKE ARM DRILLED RH

$

$

Not available

7680

7680

SEAT SUPPORT FRT.LH

$

$

Not available

7681

7681

SEAT SUPPORT FRT.RH

$

$

Not available

7688

7688

BRAKE CABLE

$

$

Not available

7689

7689

CONTROL LEVER SHAFT

$

$

Not available

7710

7710

BELT GUIDE

$

$

Not available

7715

7715

TANK SUPPORT BRKT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7718

7718

BELT GUIDE

$

$

Not available

7719

7719

$

$

Not available

7734

7734

IDLER 3` FLAT

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7738

7738

BODY SUPPORT CENTER

$

$

Not available

7744

7744

R/B 7099 DECK LIFT QUADRANT

$

$

Not available

7746

7746

LIFT ARM DRILLED RH

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7750

7750

BODY SUPPORT L.H.

$

$

Not available

7751

7751

BODY SUPPORT R.H.

$

$

Not available

7753

7753

HITCH

$

$

Not available

7756

7756

SPRING 3/4 X 3.5

$

$

Not available

7759

7759

$

$

Not available

7768

7768

PRESSURE SWITCH

$

$

Not available

7771

7771

R/B 3351 MUFFLER MT SCREW

$

$

Not available

7772

7772

MUFFLER MT. SCREW

$

$

Not available

7783

7783

SPACER - 1.50

$

$

Not available

7791

7791

FRONT DECK SHAFT WLT

$

$

Not available

7794

7794

IDLER PULLEY

$

$

Not available

7795

7795

BRACE

$

$

Not available

7796

7796

BRACE

$

$

Not available

7852

7852

CABLE KEEPER

$

$

Not available

7853

7853

BRACKET CABLE KEEPER

$

$

Not available

7881

7881

WLDT. MUFFLER GRD.

$

$

Not available

7882

7882

BRACKET MUFFLER MT.

$

$

Not available

7883

7883

MUFFLER 14HP KOHLER

$

$

Not available

7886

7886

IDLER SPRING

$

$

Not available

7889

7889

IDLER ARM LH PLATED

$

$

Not available

7890

7890

IDLER ARM RH PLATED

$

$

Not available

7891

7891

IDLER SPRING UPPER RH

$

$

Not available

7892

7892

BRAKE ARM WLDT

$

$

Not available

7893

7893

BRAKE HANDLE WLDT

$

$

Not available

7896

7896

LOCKING TAB PLATED

$

$

Not available

7897

7897

BRAKE SHAFT

$

$

Not available

7898

7898

CAP-CASTER TUBE

$

$

Not available

7906

7906

TUBE PLATED 5/8 X 7/8

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

7915

7915

FENDER SUPPORT

$

$

Not available

7922

7922

BRACKET CONT. TUBE

$

$

Not available

7924

7924

CONTROL TUBE WLDT.-LH

$

$

Not available

7925

Dixon 7925

CONTROL TUBE WLDT.RH

$

$

Not available

7926

7926

LEVER STOP

$

$

Not available

7927

7927

ROD

$

$

Not available

7928

7928

PLATE SUPPORT

$

$

Not available

7929

7929

SIDE FRAME LH

$

$

Not available

7930

7930

SIDE FRAME RH

$

$

Not available

7931

7931

R/B 13746 DR. CHAIN ASSY

$

$

Not available

7953

Dixon 7953

CHANNEL WLDT.

$

$

Not available

7976

7976

WLDT CONT. LEVER LH

$

$

Not available

7977

7977

WLDT CONT. LEVER RH

$

$

Not available

7982

7982

BRACKET-HITCH

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8342

8342

R/B 8342 WHEEL HUB ASM 30 36

$

$

Not available

8390

8390

FRONT RIM

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8800

8800

REAR WHEEL

$

$

Not available

8801

8801

REAR TIRE 2301

$

$

Not available

8804

8804

TRANS IDLER W/STUD

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

8957

8957

FUEL TANK PLASTIC

$

$

Not available

9333

9333

HOUR METER MOUNT

$

$

Not available

9853

9853

R/B 7271 CONTROL LEVER W/GRIP

$

$

Not available
