ZTR 1001 - Dixon Zero-Turn Mower (1998) MOWER DECK 50" Parts Diagram

Zero-Turn Mower

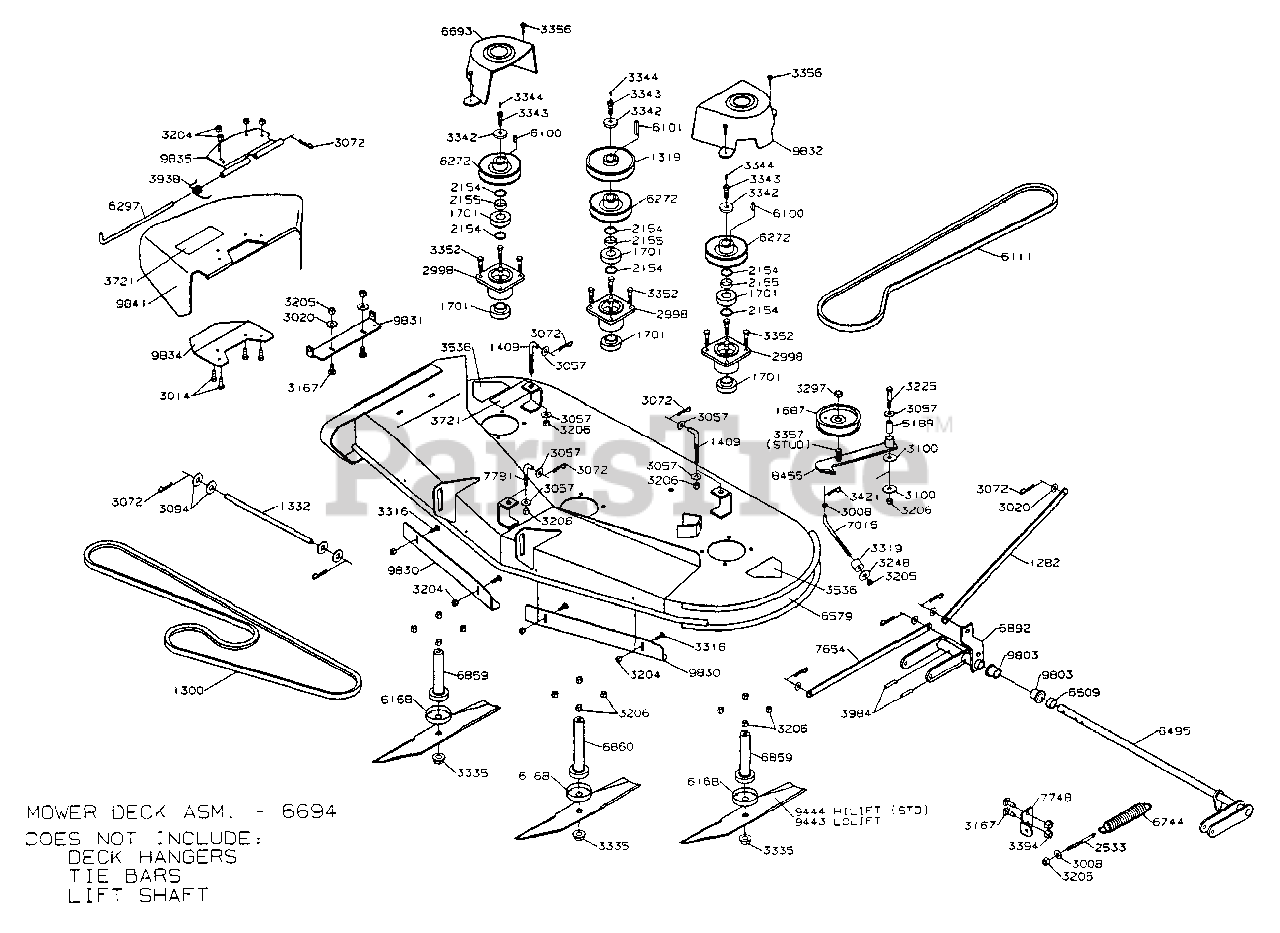

MOWER DECK 50" Parts Diagram

  • Title

1282

1282

TIE BAR

$

$

Not available

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2155

2155

HUB BEARING SPACER

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2998

2998

DECK HUB MACHINED

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3335

3335

R/B 6671 5/8-18 HEX FLANGE NU

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3984

3984

DRIVE PIN 5/16X1-1/2

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6495

6495

WLDT. REAR DK SHAFT

$

$

Not available

6509

6509

IDLER STUD SPACER

$

$

Not available

6579

6579

MOWER DECK WLDT.

$

$

Not available

6693

6693

PULLEY GUARD RH

$

$

Not available

6694

6694

50` WB DECK ASM.

$

$

Not available

6744

6744

SPRING

$

$

Not available

6859

6859

SHAFT ASM 42S

$

$

Not available

6860

6860

SHAFT ASM 42L

$

$

Not available

6892

6892

LIFT ARM WLDT RH

$

$

Not available

7015

7015

L` ROD - 7 3/4`

$

$

Not available

7654

7654

TIE BAR

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7781

7781

L-ROD - REAR

$

$

Not available

8455

8455

42 SERP IDLER W/STUD

$

$

Not available

9443

9443

BLD 50` STD. LIFT

$

$

Not available

9444

9444

HI-LIFT BLADE 50`

$

$

Not available

9803

9803

BUSHING

$

$

Not available

9830

9830

BLOW-BY BAFFLE

$

$

Not available

9831

9831

HINGE

$

$

Not available

9832

9832

PULLEY GUARD

$

$

Not available

9834

9834

DEFLECTOR BRACKET

$

$

Not available

9835

9835

DEFLECTOR MT BRKT

$

$

Not available

9841

9841

R/B 7365 DEFLECTOR W/DECAL

$

$

Not available
