ZTR 1001 - Dixon Zero-Turn Mower (1997) MOWER DECK ASSEMBLY 36" Parts Diagram

Zero-Turn Mower

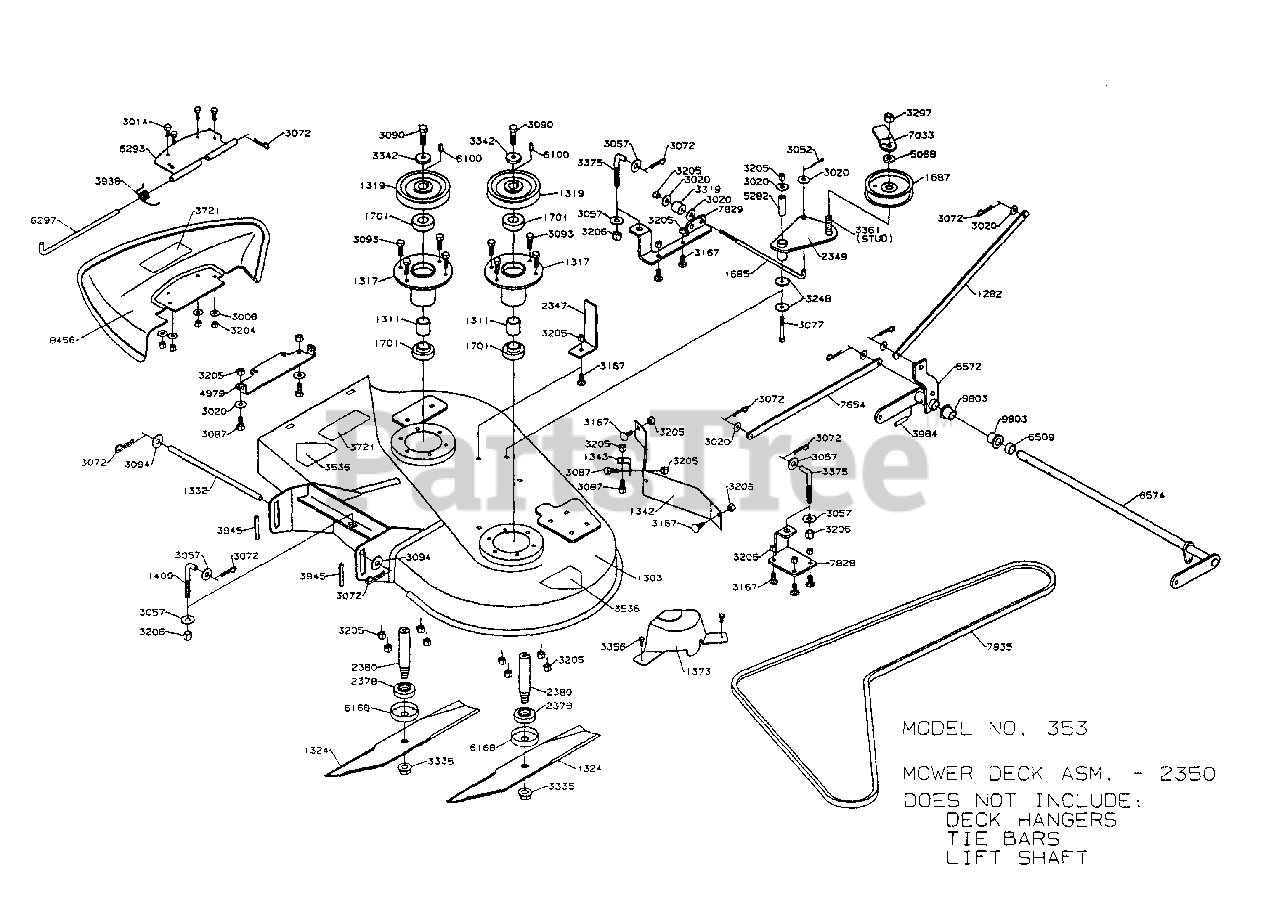

MOWER DECK ASSEMBLY 36" Parts Diagram

  • Title

1282

1282

TIE BAR

$

$

Not available

1303

1303

R/B 13114 MOWER DECK WLDT.

$

$

Not available

1311

1311

HUB SPACER

$

$

Not available

1317

1317

HUB WLDT. MACHINED

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1324

1324

BLD 36` LO LIFT(REF124121)

$

$

Not available

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1342

1342

BAFFLE

$

$

Not available

1343

1343

BRACKET

$

$

Not available

1373

1373

PULLEY GUARD

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

2347

2347

DECK STOP

$

$

Not available

2349

2349

R/B 2349 PLATE - TENSIONER

$

$

Not available

2350

2350

MOWER DECK ASM-36`R/B 5492

$

$

Not available

2378

2378

$

$

Not available

2380

2380

SHAFT 36 S

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3335

3335

R/B 6671 5/8-18 HEX FLANGE NU

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3945

3945

CLIP - 2.69

$

$

Not available

3984

3984

DRIVE PIN 5/16X1-1/2

$

$

Not available

4979

4979

HINGE

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5282

5282

BUSHING 1.90

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6293

6293

DEFLECTOR MT BRKT

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6509

6509

IDLER STUD SPACER

$

$

Not available

6572

6572

WLDT. LIFT ARM RH

$

$

Not available

6574

6574

WLDT. REAR DK SHAFT

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

7654

7654

TIE BAR

$

$

Not available

7828

7828

DECK HANGER LH

$

$

Not available

7829

7829

DECK HANGER RH

$

$

Not available

7835

7835

V-BELT DECK DRIVE

$

$

Not available

8456

Dixon 8456

36 DEFLECTOR W/DECAL

$

$

Not available

9803

9803

BUSHING

$

$

Not available
