ZTR 1001 - Dixon Zero-Turn Mower (1997) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

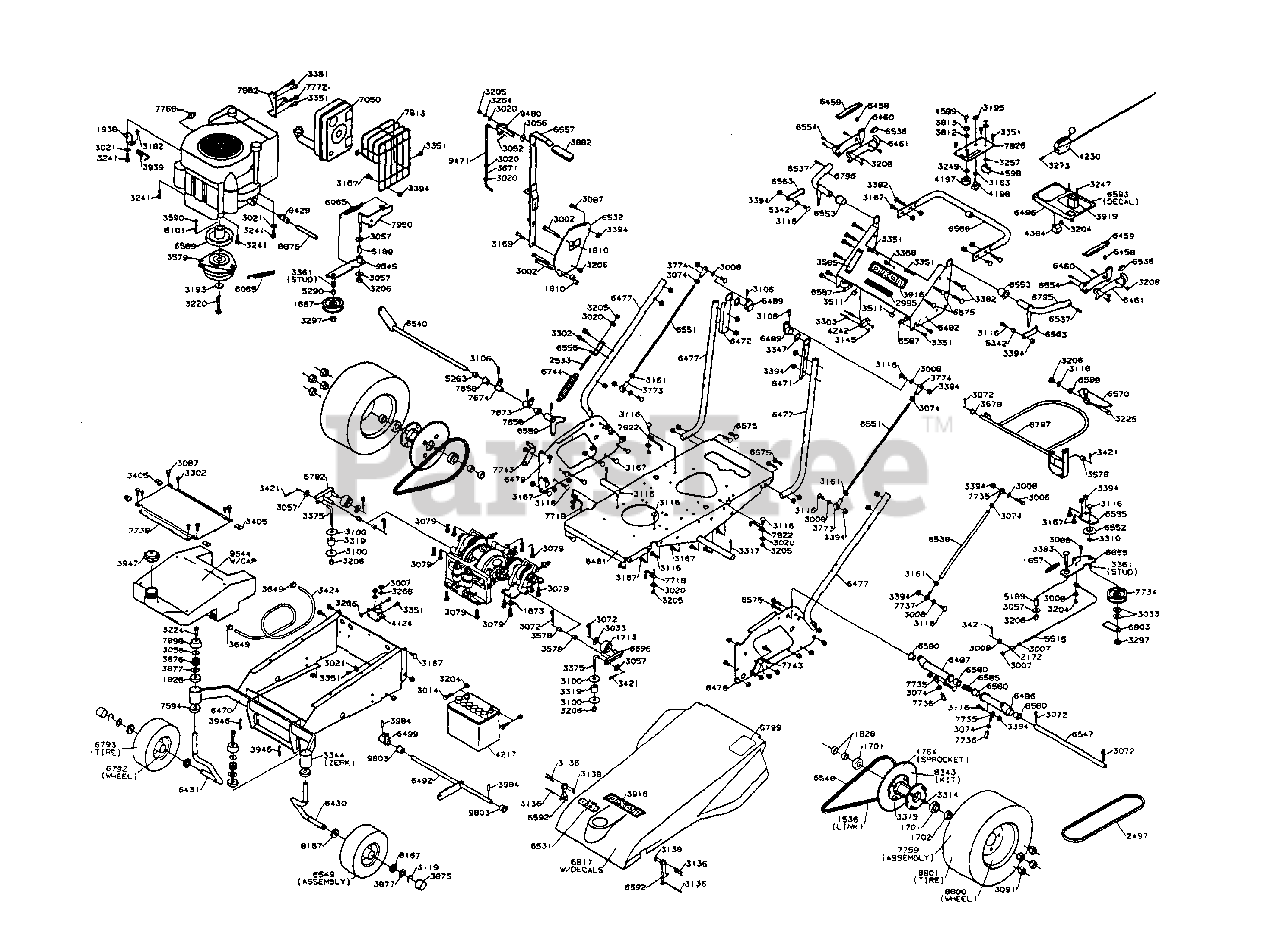

CHASSIS ASSEMBLY Parts Diagram

  • Title

1536

1536

#40 RC CONN LINK

$

$

Not available

1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1810

1810

PIVOT STOP

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1828

1828

AXLE SPACER

$

$

Not available

1938

1938

ANCHOR BRACKET

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2497

2497

V - BELT

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3136

3136

POP RIVET

$

$

Not available

3138

3138

STD.ST.BURR.103/.148

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3195

3195

FACE NUT 1/2-27

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3347

3347

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3382

3382

5/16-18X1-3/4 CAR BLT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3946

3946

CLIP - 2.06

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

3984

3984

DRIVE PIN 5/16X1-1/2

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

4384

4384

RELAY

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5263

5263

SPACER - .458

$

$

Not available

5290

5290

BUSHING

$

$

Not available

5342

5342

SPACER

$

$

Not available

5515

5515

IDLER CABLE

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6430

6430

WLDT. LH CASTER

$

$

Not available

6431

6431

WLDT. RH CASTER

$

$

Not available

6458

6458

SPRING SWITCH

$

$

Not available

6459

6459

LEVER

$

$

Not available

6460

6460

GRIP RH

$

$

Not available

6461

6461

GRIP LH

$

$

Not available

6470

6470

$

$

Not available

6471

6471

HANDLE BRKT. LH

$

$

Not available

6472

6472

HANDLE BRKT. RH

$

$

Not available

6477

6477

HANDLE SUPPORT

$

$

Not available

6478

6478

SIDE PLATE LH

$

$

Not available

6479

6479

SIDE PLATE RH

$

$

Not available

6481

6481

$

$

Not available

6482

6482

HANDLE SUPPORT BRKT.

$

$

Not available

6486

6486

WLDT. CTRL TUBE LH

$

$

Not available

6487

6487

WLDT. CTRL TUBE RH

$

$

Not available

6489

6489

WLDT. CTRL ARM

$

$

Not available

6492

6492

WLDT. FRT DECK SHAFT

$

$

Not available

6496

6496

CONTROL PANEL BRKT.

$

$

Not available

6499

6499

WLDT. ARM

$

$

Not available

6531

6531

MODEL DECAL 1001

$

$

Not available

6532

6532

QUADRANT

$

$

Not available

6536

6536

SWITCH

$

$

Not available

6537

6537

ROLL PIN

$

$

Not available

6538

6538

BRAKE ROD

$

$

Not available

6540

6540

$

$

Not available

6547

6547

SHAFT CONTROL TUBE

$

$

Not available

6548

6548

DRIVE CHAIN ASM.

$

$

Not available

6549

6549

TIRE ASSEMBLY

$

$

Not available

6551

6551

$

$

Not available

6552

6552

CABLE KEEPER

$

$

Not available

6553

6553

$

$

Not available

6554

6554

#10-24X3/4 PHIL HD.

$

$

Not available

6555

6555

CABLE KEEPER BRKT.

$

$

Not available

6556

6556

SPRING ANCHOR BRKT.

$

$

Not available

6557

6557

LEVER WLDT.

$

$

Not available

6559

6559

WLDT. L-BRKT

$

$

Not available

6563

6563

STOP BRKT.

$

$

Not available

6566

6566

WLDT. PUSH HANDLE

$

$

Not available

6570

6570

WLDT. RELEASE HDLE

$

$

Not available

6575

6575

5/16-18X1-1/2 CAR

$

$

Not available

6580

6580

PIVOT BUSHING

$

$

Not available

6585

6585

SPRING

$

$

Not available

6587

6587

MOUNT PLATE

$

$

Not available

6588

6588

SPRING

$

$

Not available

6589

6589

ENGINE PULLEY

$

$

Not available

6592

6592

LATCH

$

$

Not available

6593

6593

LABEL OPER.INSTR.

$

$

Not available

6696

6696

$

$

Not available

6744

6744

SPRING

$

$

Not available

6782

6782

IDLER ARM RH PLTD

$

$

Not available

6792

6792

FRONT WHEEL (SILVER)

$

$

Not available

6793

6793

FRONT TIRE WB

$

$

Not available

6795

6795

CONT.HDL. LHPLTD.

$

$

Not available

6796

6796

CONT.HLE. RH PLTD

$

$

Not available

6797

6797

BAIL WLDT PLTD

$

$

Not available

6799

6799

DECAL WARNING

$

$

Not available

6803

6803

BELT GUARD

$

$

Not available

6817

6817

$

$

Not available

6855

Dixon 6855

IDLER W/STUD

$

$

Not available

7050

7050

MUFFLER KOHLER

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7658

7658

BUSHING

$

$

Not available

7673

7673

BRAKE ARM DRILLED LH

$

$

Not available

7674

7674

BRAKE ARM DRILLED RH

$

$

Not available

7718

7718

BELT GUIDE

$

$

Not available

7734

7734

IDLER 3` FLAT

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7738

7738

BODY SUPPORT CENTER

$

$

Not available

7743

7743

IDLER ADJ. BRKT

$

$

Not available

7759

7759

$

$

Not available

7768

7768

PRESSURE SWITCH

$

$

Not available

7772

7772

MUFFLER MT. SCREW

$

$

Not available

7813

7813

MUFFLER GUARD

$

$

Not available

7822

7822

BELT GUIDE

$

$

Not available

7826

7826

CONTROL PANEL

$

$

Not available

7882

7882

BRACKET MUFFLER MT.

$

$

Not available

7898

7898

CAP-CASTER TUBE

$

$

Not available

7950

7950

WLDT. IDLER BRACKET

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8343

8343

R/B 8343 WHEEL HUB ASSEMBLY

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8800

8800

REAR WHEEL

$

$

Not available

8801

8801

REAR TIRE 2301

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

9471

9471

LIFT HANDLE CONTROL

$

$

Not available

9480

9480

GRIP WLDT.

$

$

Not available

9544

9544

42` Z FUEL TANK W/CAP

$

$

Not available

9545

9545

WLDT. - IDLER ARM

$

$

Not available

9803

9803

BUSHING

$

$

Not available
