ZTHQL 4218 A (968999170) - Husqvarna 42" Zero-Turn Mower (2000-10) Wiring Assembly (Kohler Only) Parts Diagram

42" Zero-Turn Mower

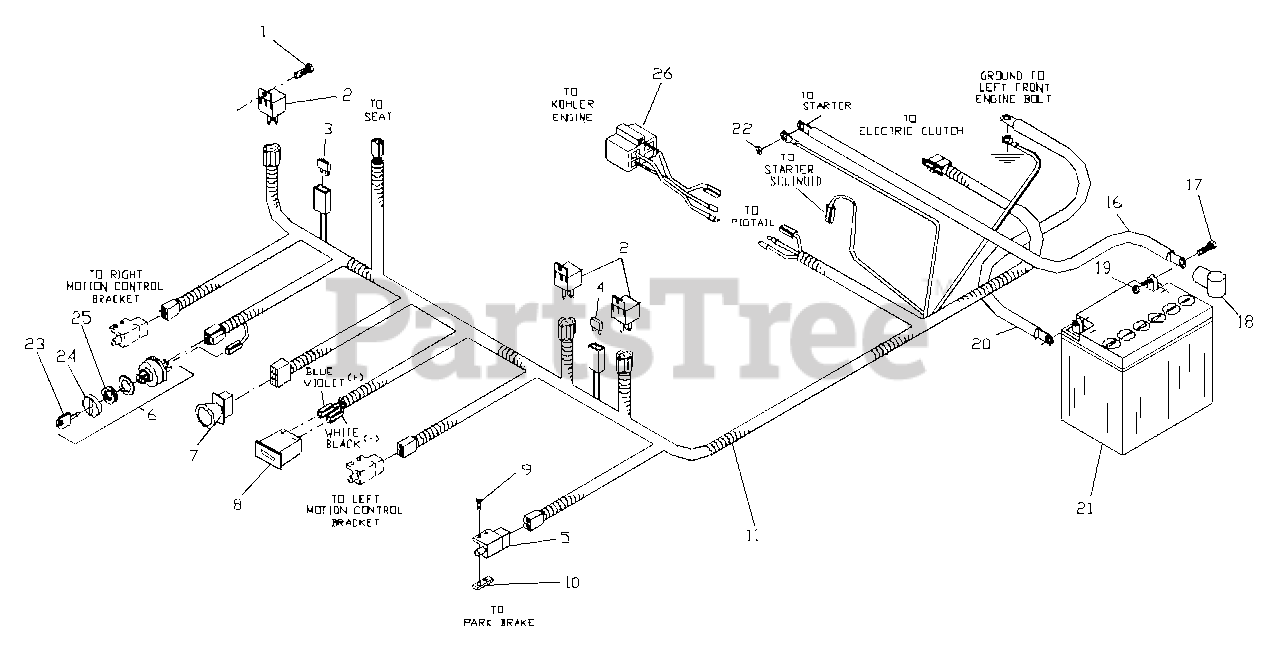

Wiring Assembly (Kohler Only) Parts Diagram

  • Title

1

Husqvarna 539991034

#10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 7

0

3

Husqvarna 539101771

7.5 AMP 32 VOLT ATO FUSE

$

$

Not available

4

Husqvarna 539102086

20 AMP 32 VOLT ATO FUSE

$

$

Not available

5

Husqvarna 539101080

INTERLOCK SWITCH

$20.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101770

IGNITION SWITCH

Note: (INCLUDES WASHER, NUT, & STD. KEY) (DOES NOT INCLUDE ITEMS 23, 24)

$

$

Not available

7

Husqvarna 539101768

BLADE SWITCH
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

9

Husqvarna 539976952

#10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 19

0

10

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

11

Husqvarna 539103276

WIRING HARNESS

$

$

Not available

12

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 1 left!

0

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 12

0

19

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102758

CABLE NEG.

$

$

Not available

21

Husqvarna 539102463

BATTERY
(Superseded to 579411601)

$

$

Not available

22

Husqvarna 539976978

NUT 1/4C NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 539104812

KEY, PADDED

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539103178

COVER

$5.99

$

In Stock, Qty 6

0

25

Husqvarna 539103177

NUT

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539105087

PIGTAIL FOR ENG. WIRING (KOHLER ONLY)

$

$

Not available
