ZTHKH 4818 A (968999157) - Husqvarna 48" Zero-Turn Mower, Kohler (2002-09) Motion Control Assembly Parts Diagram

48" Zero-Turn Mower, Kohler

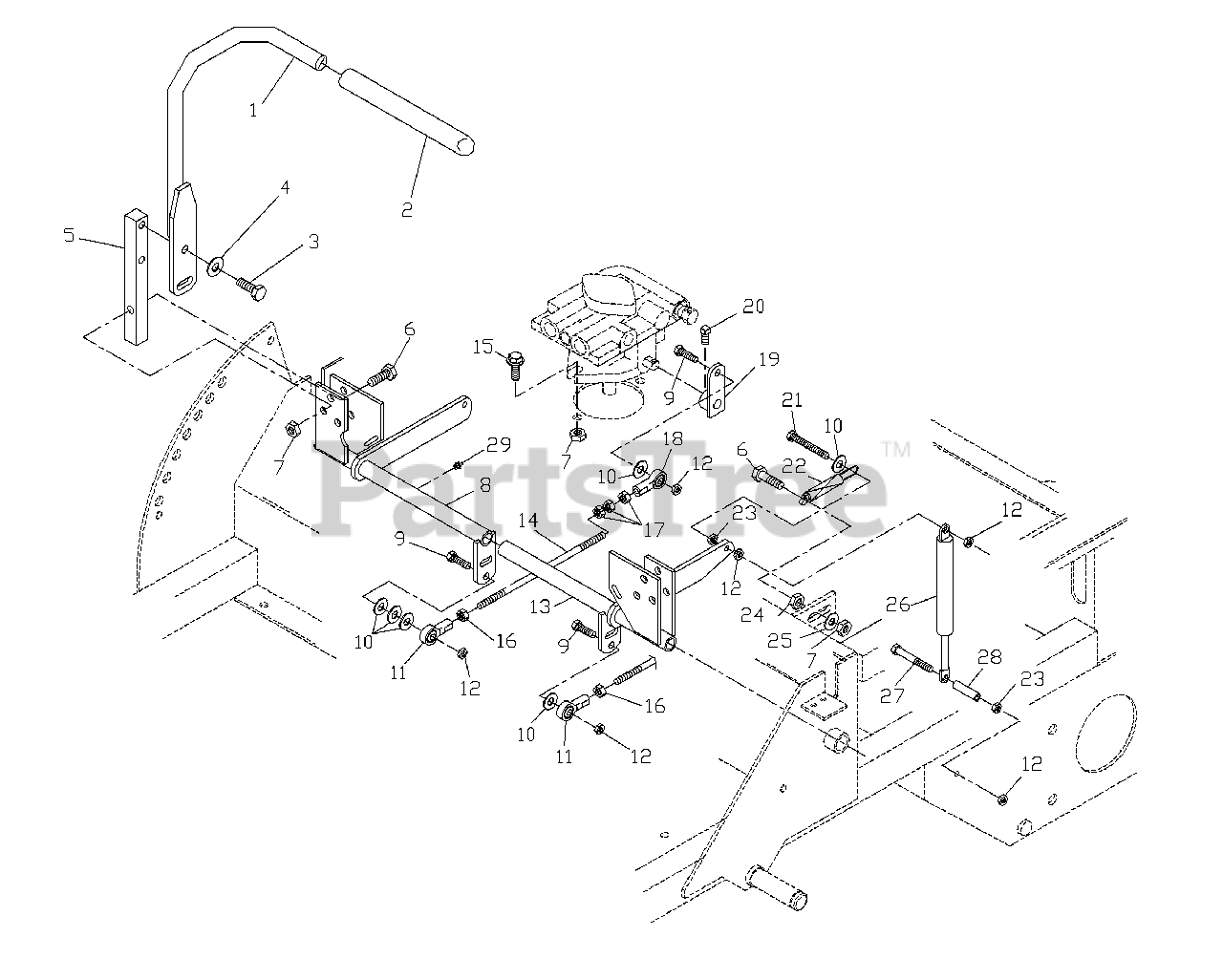

Motion Control Assembly Parts Diagram

  • Title
1

Husqvarna 539104190

CONTROL LEVER WLDMT

$

$

Not available

$

$

Not available

3

Husqvarna 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102593

3/8 DISC SPRING WASHER

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539102809

CONTROL ARM

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

8

Husqvarna 539103248

CONTROL WELDMENT, RIGHT

$145.99

$

In Stock, only 1 left!

0

9

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539102591

BALL JOINT, LEFT HANDED

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539103249

CONTROL WELDMENT, LEFT

$

$

Not available

14

Husqvarna 539103264

PUMP CONTROL LINK

$

$

Not available

15

Husqvarna 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

16

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

17

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102590

BALL JOINT, RIGHTHAND

$27.99

$

In Stock, only 1 left!

0

19

Husqvarna 539104382

CONTROL ARM, PUMP

$

$

Not available

20

Husqvarna 539102717

5/16C X 5/8 SQ. HEAD

$3.99

$

In Stock, only 4 left!

0

21

Husqvarna 539991055

TAPBOLT 5/16C X 2 1/4

$3.99

$

Usually ships in 3-10 days

0

$8.99

$

In Stock, only 2 left!

0

23

Husqvarna 539990585

5/16C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

26

$66.99

$

In Stock, only 3 left!

0

27

Husqvarna 539103468

HCS 5/16C X 2 3/4 GRADE 8

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0
