ZTHE 6125 (968999179) - Husqvarna 61" Zero-Turn Mower (2002-01) WIRING HARNESS Parts Diagram

61" Zero-Turn Mower

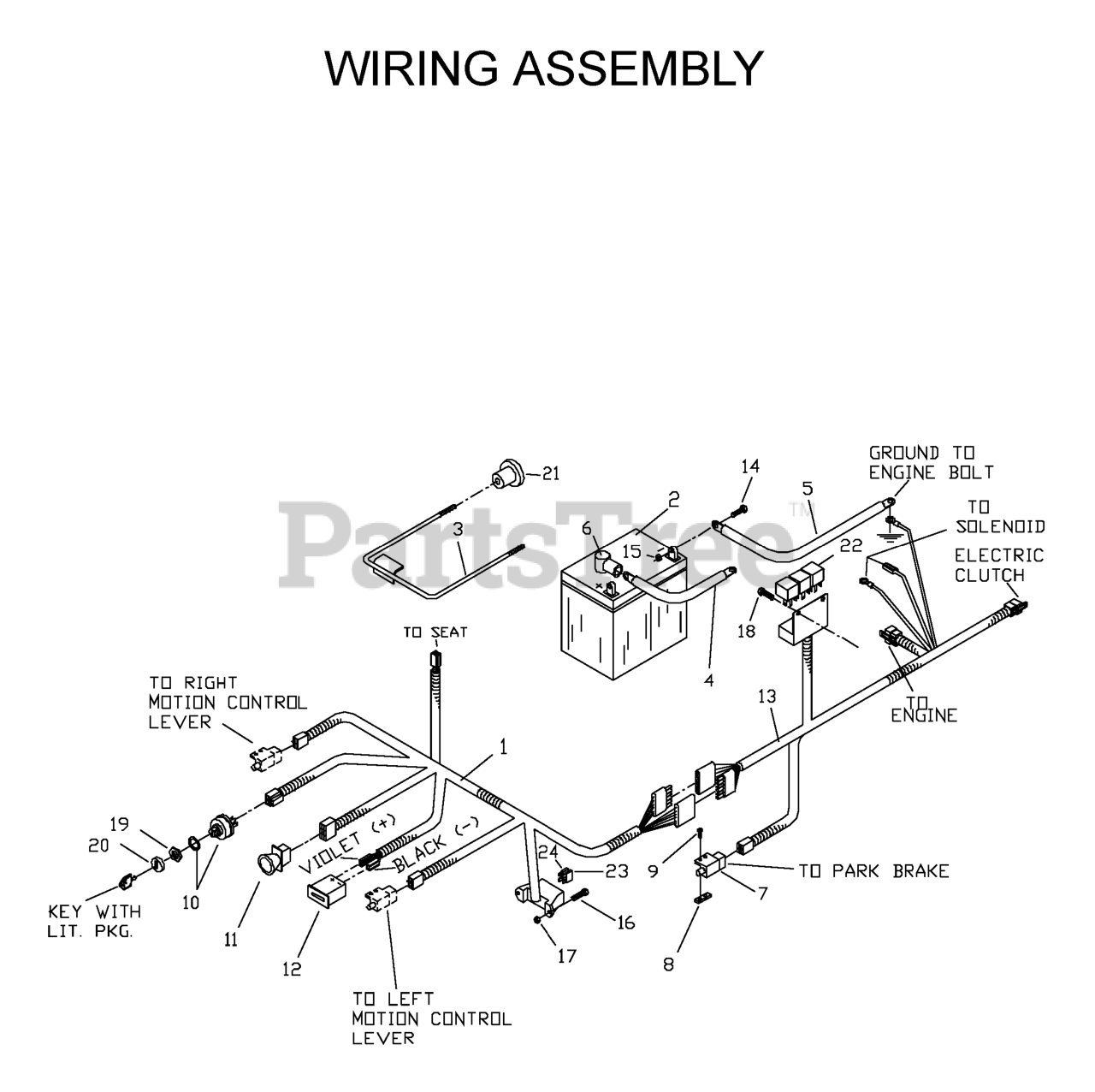

WIRING HARNESS Parts Diagram

  • Title

6

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

19

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

8

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

11

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

3

Husqvarna 539104344

BATTERY HOLD DOWN

$

$

Not available

2

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

23

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

20

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

12

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

7

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

18

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

14

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

21

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539104964

FRAMES HARNESS

$

$

Not available

24

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

1

Husqvarna 539104414

CONSOLE HARNESS

$

$

Not available
