ZTHE 6125 (968999179) - Husqvarna 61" Zero-Turn Mower (2002-01) 52"/132CM CUTTING DECK Parts Diagram

61" Zero-Turn Mower

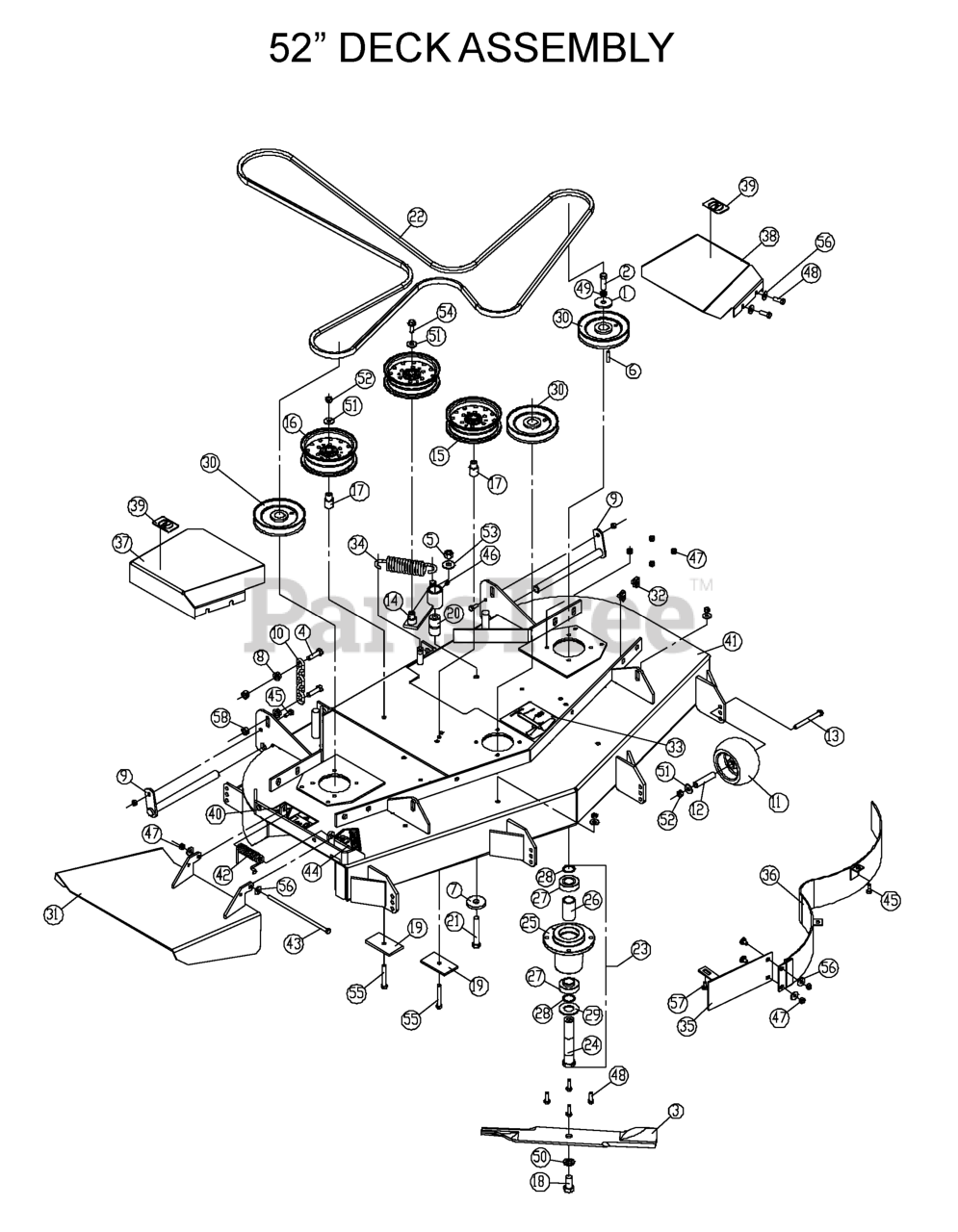

52"/132CM CUTTING DECK Parts Diagram

  • Title
12

$

$

Not available

5

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

31

Husqvarna 539104422

DISCHARGE CHUTE

$

$

Not available

29

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$10.99

$

In Stock, only 3 left!

0

46

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539105659

SHIELD, BELT 52" LT

$26.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

4

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539104421

PULLEY 52" DECK

$

$

Not available

52

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

37

Husqvarna 539105649

SHIELD, BELT 52" RT

$

$

Not available

7

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

15

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

57

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

2

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

23

Husqvarna 539104403

HOUSING ASM.
(Superseded to 539107408)

$512.99

$

In Stock, only 1 left!

0

13

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

40

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 539105822

SPRING, TORTION

$17.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

11

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

44

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

34

Husqvarna 539105192

DECK SPRING

$

$

Not available

$13.99

$

In Stock, only 4 left!

0

3

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available

39

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

14

$

$

Not available

49

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

50

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

54

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

9

$40.99

$

In Stock, only 3 left!

0

43

Husqvarna 539105827

HCS 5/16-18 X 8-1/2 GR 5 ZD

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539105012

DECAL, BELT ROUTING

$

$

Not available

56

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

48

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539105453

CENTER BAFFLE - 52"

$

$

Not available

27

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

45

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

21

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

36

Husqvarna 539105457

MAIN BAFFLE 52"

$267.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539105780

52 CE DECK WITH DECALS

$

$

Not available

19

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available
