ZTH 7227 KOB (968999225) - Husqvarna 72" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Park Brake Assembly Parts Diagram

72" Zero-Turn Mower

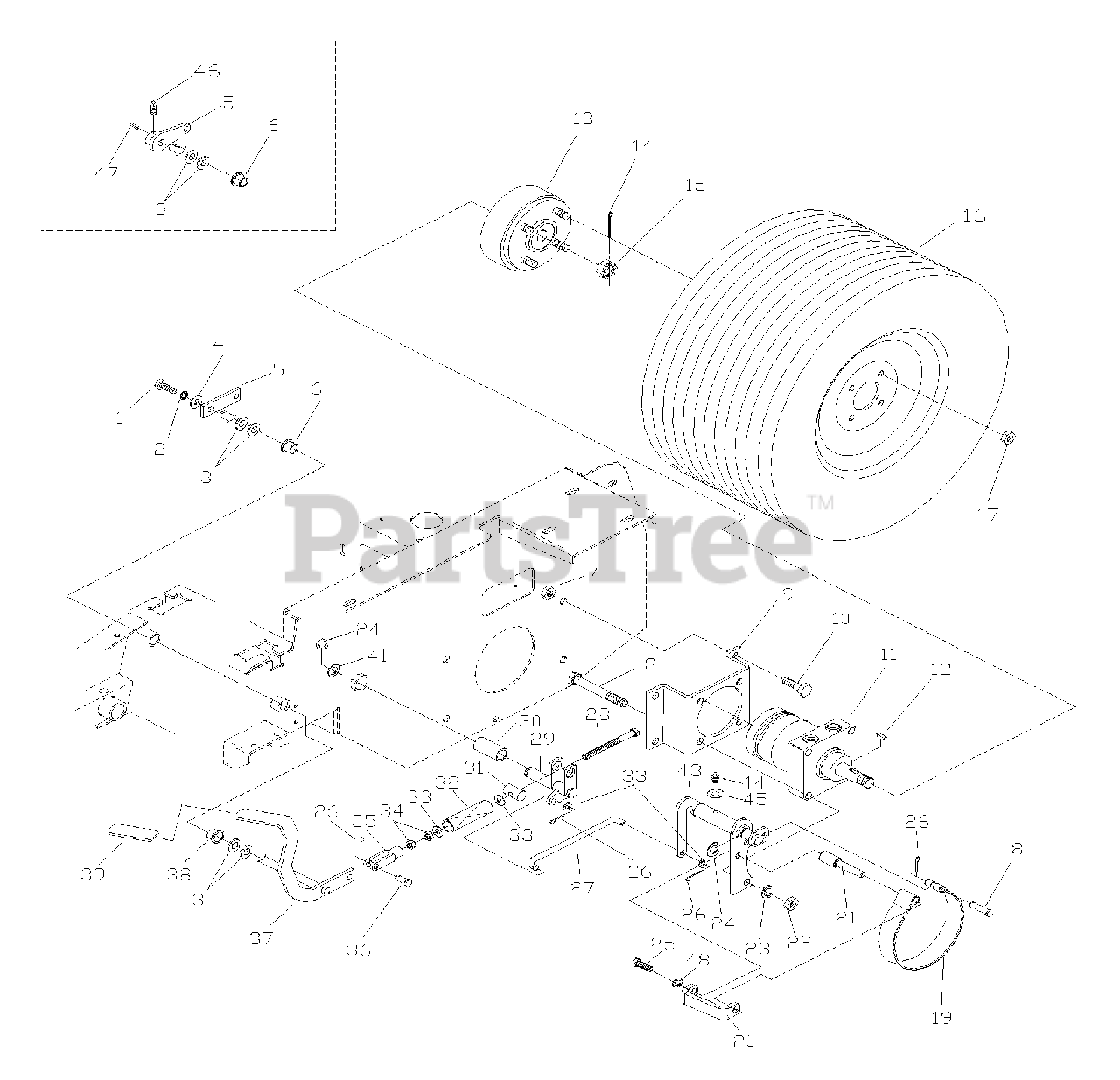

Park Brake Assembly Parts Diagram

  • Title
1

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990052

1/4 LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102843

WASHER 7/16 SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990598

1/4 FLAT WASHER

$

$

Not available

5

Husqvarna 539103576

ARM, PARK BRAKE

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106523

ARM, PARK BRAKE (NEW STYLE)

$26.99

$

Usually ships in 3-10 days

0

$

$

Not available

7

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539101332

HCS 1/2C X 2.75

$5.99

$

In Stock, only 3 left!

0

9

Husqvarna 539104327

MOTOR STANDOFF

$84.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990622

HCS 1/2C X 1.25

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104417

WHEEL MOTOR

$1092.99

$

Usually ships in 3-10 days

0

11

$424.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105278

WOODRUFF KEY

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102415

HUB W/ BRAKE DRUM

$

$

Not available

14

Husqvarna 539990297

COTTER PIN

$

$

Not available

15

Husqvarna 539105277

CASTLE NUT

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105486

REAR TIRE ASM OFFSET RIM (61" & 72" MODELS)

$433.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105978

REAR TIRE ASM

$

$

Not available

$278.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105487

RIM (OFFSET)

$182.99

$

In Stock, only 1 left!

0

16

$

$

Not available

16

$6.49

$

In Stock, Qty 20+

0

17

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

18

Husqvarna 539102455

3/8 X 1.50 CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102822

BRAKE BAND

$

$

Not available

20

Husqvarna 539106793

SUPPORT BKT. - AFTER 03/2002

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105070

HCS 3/8C X 3 GD 8

$0.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106794

BAND PIVOT - AFTER 03/2002

$46.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

22

$4.99

$

In Stock, Qty 14

0

23

Husqvarna 539990254

1/2 LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102454

E - RING 3/4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106791

HCS 3/8 X 1.0 GD 8 - AFTER 03/2002

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990546

NUT 3/8C CTR. LOCK

$

$

Not available

26

Husqvarna 539990365

COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 539105303

BRAKE LINKAGE LT.

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105302

BRAKE LINKAGE RT.

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104984

HCS 3/8F SPECIAL

$

$

Not available

29

$48.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105044

BRONZE BEARING

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539102821

TRUNION PIN

$5.99

$

Usually ships in 3-10 days

0

$13.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990122

3/8 SAE WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

34

$4.99

$

In Stock, Qty 16

0

$24.99

$

In Stock, Qty 11

0

36

Husqvarna 539977703

3/8 X 1.125

$5.99

$

In Stock, Qty 11

0

37

Husqvarna 539104351

BRAKE LEVER WLDMT.

$

$

Not available

37

Husqvarna 539106526

BRAKEARM WLDMT (NEW STYLE)

$84.99

$

Usually ships in 3-10 days

0

38

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 539991050

MACH. BUSHING 3/4

$3.99

$

In Stock, Qty 6

0

43

Husqvarna 539104346

LEFT BRAKE BKT.

$145.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104347

RIGHT BRAKE BKT.

$66.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, only 2 left!

0

46

Husqvarna 539102717

SETSCRW. 5/16 X .625

$3.99

$

In Stock, only 4 left!

0

47

Husqvarna 539106528

KEY 1/4 X .875

$

$

Not available

48

Husqvarna 539990118

WASHER 3/8 LOCK
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0
