ZTH 7226 KOA (968999175) - Husqvarna 72" Zero-Turn Mower (2001-11) EFI Fuel Assembly Parts Diagram

72" Zero-Turn Mower

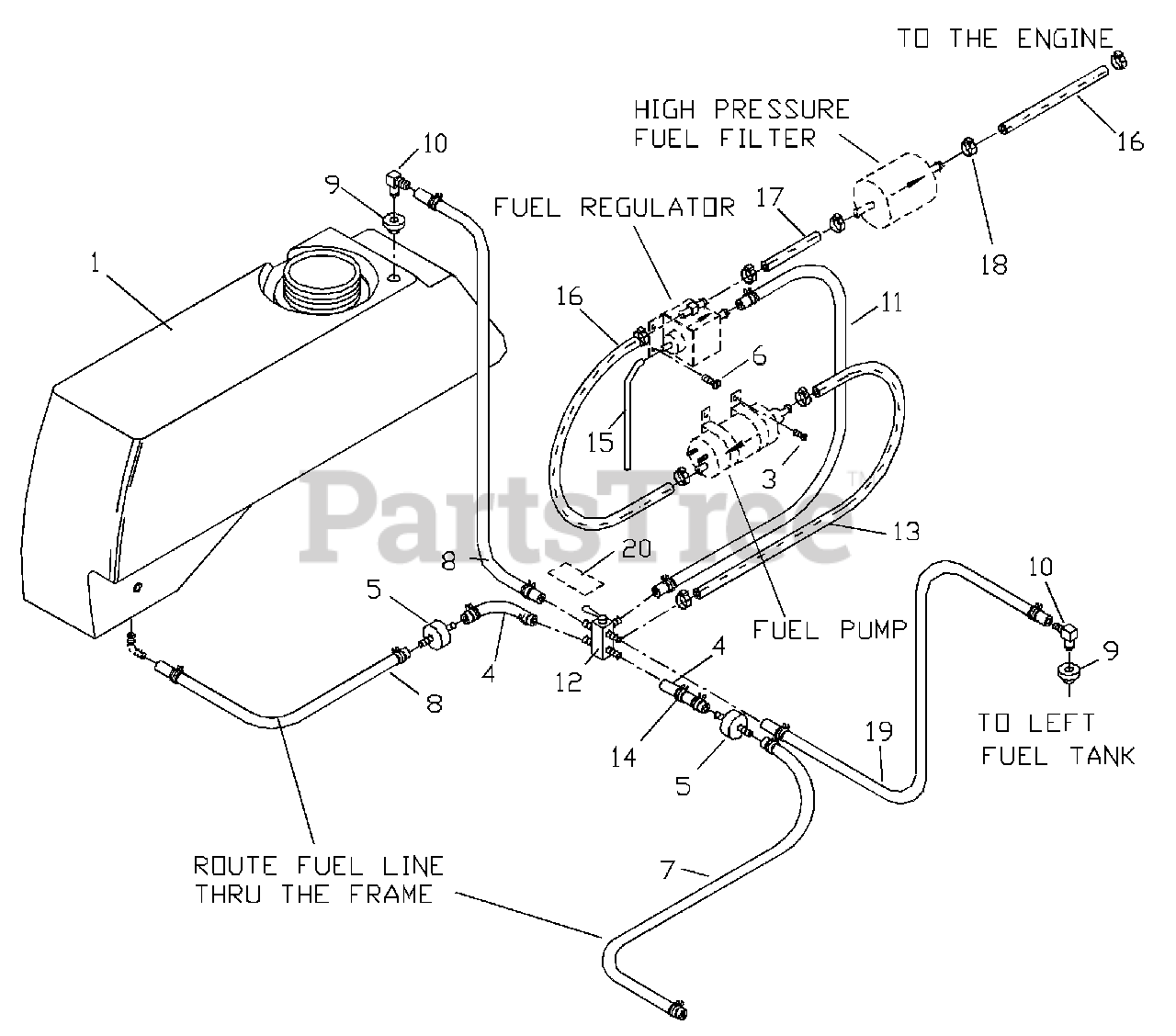

EFI Fuel Assembly Parts Diagram

  • Title

1

Husqvarna 539105330

FUEL TANK RT.

$169.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105329

FUEL TANK LT.

$205.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539991034

SCREW SELF TAP

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539977351

FUEL LINE

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539914359

FILTER

$

$

Not available

6

Husqvarna 539105532

HCS 1/4 SELF TAP

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539105531

FUEL LINE
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 539105526

FUEL LINE
(Superseded to 587044818)

$10.99

$

In Stock, only 2 left!

0

9

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 539105244

ELBOW

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539105527

FUEL LINE
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105331

FUEL VALVE

$103.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105398

EFI HOSE

Note: High pressure line.

$

$

Not available

14

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539105411

VENT HOSE

$

$

Not available

16

Husqvarna 539105399

EFI HOSE

Note: High pressure line.

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105400

EFI HOSE

Note: High pressure line.

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539105529

CLAMP

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 539105530

FUEL LINE

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105334

DECAL

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104962

FUEL CAP
(Superseded to 539130394)

Note: (NOT SHOWN)

$31.99

$

In Stock, only 1 left!

0
