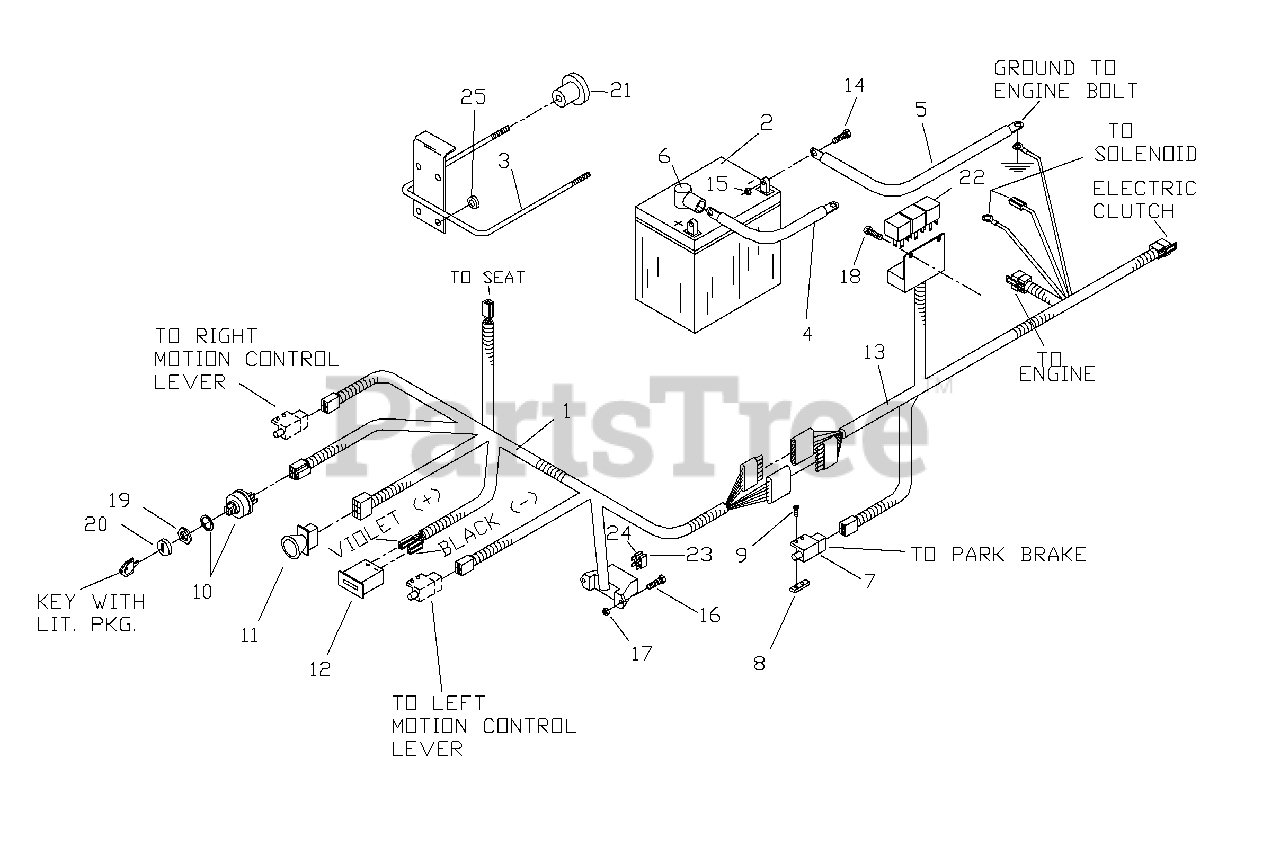

ZTH 7226 KOA (968999175) - Husqvarna 72" Zero-Turn Mower (2001-06) Wiring Assembly Parts Diagram

72" Zero-Turn Mower

Wiring Assembly Parts Diagram

  • Title

1

Husqvarna 539104414

CONSOLE HARNESS

$

$

Not available

2

Husqvarna 539102463

12V BATTERY
(Superseded to 579411601)

$

$

Not available

3

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

4

Husqvarna 539104974

POSITIVE CABLE

$

$

Not available

5

Husqvarna 539102758

NEGITIVE CABLE

$

$

Not available

6

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539101080

INTERLOCK SWITCH

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

9

Husqvarna 539976952

#10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

10

Husqvarna 539101770

IGNITION SWITCH

$

$

Not available

11

Husqvarna 539101768

BLADE SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

12

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

13

Husqvarna 539104964

FRAME HARNESS

$

$

Not available

14

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990184

NUT 5/16C CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102617

#10-24 X 7/8 SCREW

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 539976977

#10-24 HEX NYLOC NUT

$

$

Not available

18

Husqvarna 539991034

SELF TAPPING SCREW

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103177

NUT IGN. SWITCH

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 539103178

CAP, IGN. SWITCH

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

23

Husqvarna 539101771

7.5 AMP 32V ATO FUSE

$

$

Not available

24

Husqvarna 539102086

20.0 AMP 32V ATO FUSE

$

$

Not available

25

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0
