ZTH 6127 KOA (968999201) - Husqvarna 61" Zero-Turn Mower (2006-04) Main Frame Assembly Parts Diagram

61" Zero-Turn Mower

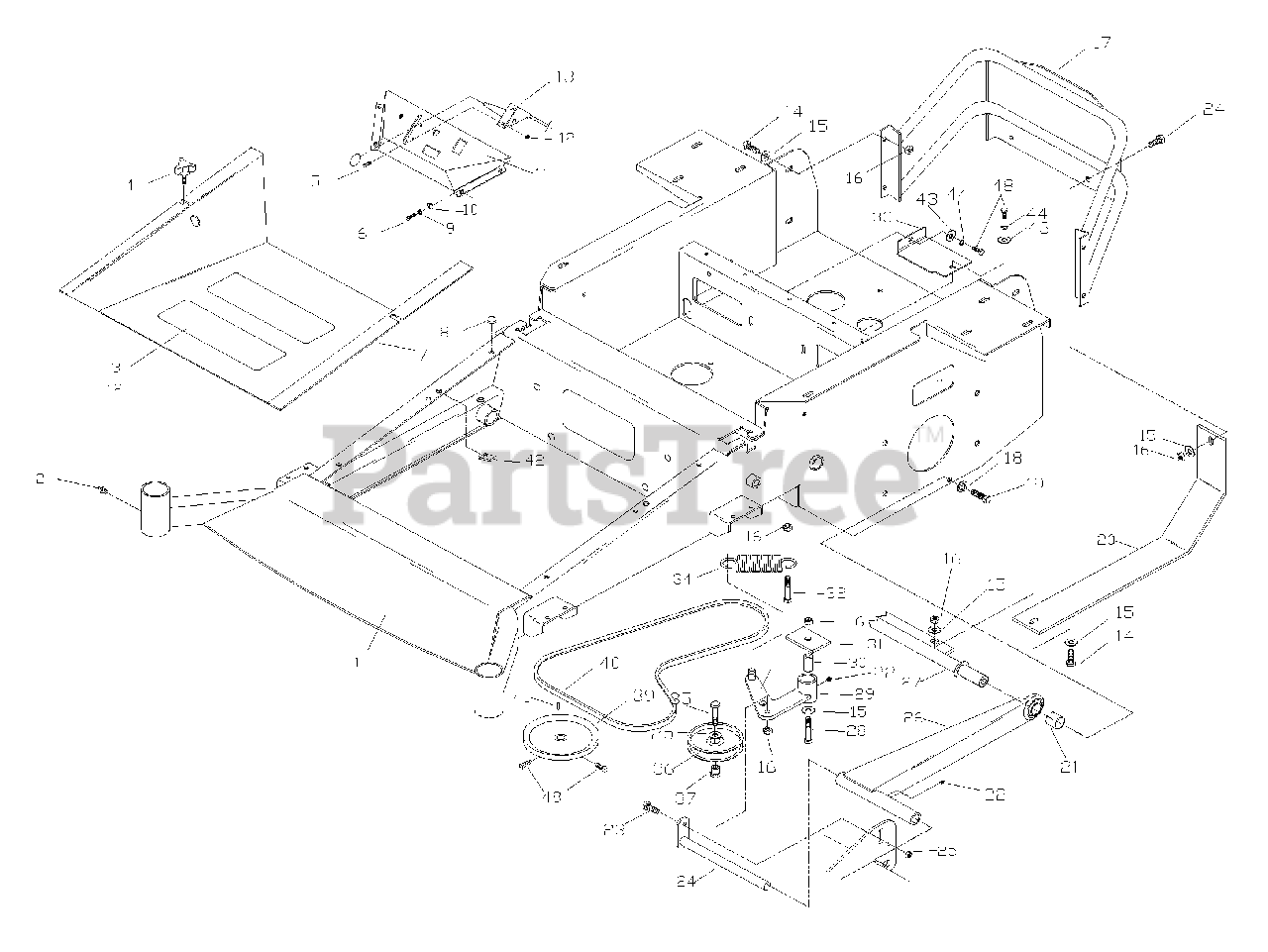

Main Frame Assembly Parts Diagram

  • Title
1

Husqvarna 539105492

FRAME 72" MODEL

$

$

Not available

1

Husqvarna 539105886

FRAME 52" & 61"

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI SKID PAD

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990411

HCS # 10 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990362

1/4 x 5/8 SELF TAP

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539104721

FOOT PLATE

$218.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, Qty 15

0

9

Husqvarna 539990052

1/4 LOCK WASHER

Note: Torque to 50ft/lbs

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990598

1/4 FLAT WASHER

$

$

Not available

11

Husqvarna 539105151

CONSOLE W DECAL

$

$

Not available

12

Husqvarna 539976977

NUT #10 NYLOC

$

$

Not available

13

Husqvarna 539102732

THROTTLE CABLE

$

$

Not available

14

Husqvarna 539990563

HCS 3/8 X 1.0

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

17

Husqvarna 539104329

ENGINE GUARD

$485.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

19

Husqvarna 539105905

HCS 7/16 X 1.0 GD 8

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105022

SKID PLATE

$36.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104521

STRUT SPACER

Note: QUANITY WILL BE 2 FOR 52" AND 61" MODELS

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976934

HCS 5/16 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102619

STRUT PIN

Note: QUANITY WILL BE 2 FOR 52" AND 61" MODELS

$40.99

$

In Stock, only 3 left!

0

25

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539104390

STRUT

Note: QUANITY WILL BE 2 FOR 52" AND 61" MODELS

$302.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105478

CROSS SHAFT 72"

$78.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104332

CROSS SHAFT 52" & 61"

$

$

Not available

28

Husqvarna 539103433

HCS 1/2 X 3.25

$6.99

$

In Stock, only 4 left!

0

29

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

31

Husqvarna 539102236

SUPPORT PLATE

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990655

HCS 3/8 X 1.5

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539105716

IDLER COVER

$

$

Not available

$12.99

$

In Stock, Qty 6

0

35

Husqvarna 539990730

HCS 3/8 X 1.75

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

37

Husqvarna 539976695

IDLER BUSHING

$

$

Not available

38

Husqvarna 539102717

5/16 X 5/8 SETSCW

$3.99

$

In Stock, only 4 left!

0

$

$

Not available

40

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 10

0

41

Husqvarna 539101177

KEY 5mm SQ

$8.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 12

0

43

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 539990187

5/16 LOCK WASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539105577

STRUT RT SIDE

Note: (NOT SHOWN); SPECIFIC TO 72" MODELS ONLY

$218.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539105481

STRUT PIN RT SIDE

Note: (NOT SHOWN); SPECIFIC TO 72" MODELS ONLY

$17.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539105484

STRUT SPACER RT SIDE

Note: (NOT SHOWN); SPECIFIC TO 72" MODELS ONLY

$

$

Not available

48

Husqvarna 539990209

HCS 5/16 X 1.0

$1.99

$

Usually ships in 3-10 days

0
