ZTH 6127 KOA (968999201) - Husqvarna 61" Zero-Turn Mower (2006-04) Deck Lift Assembly Parts Diagram

61" Zero-Turn Mower

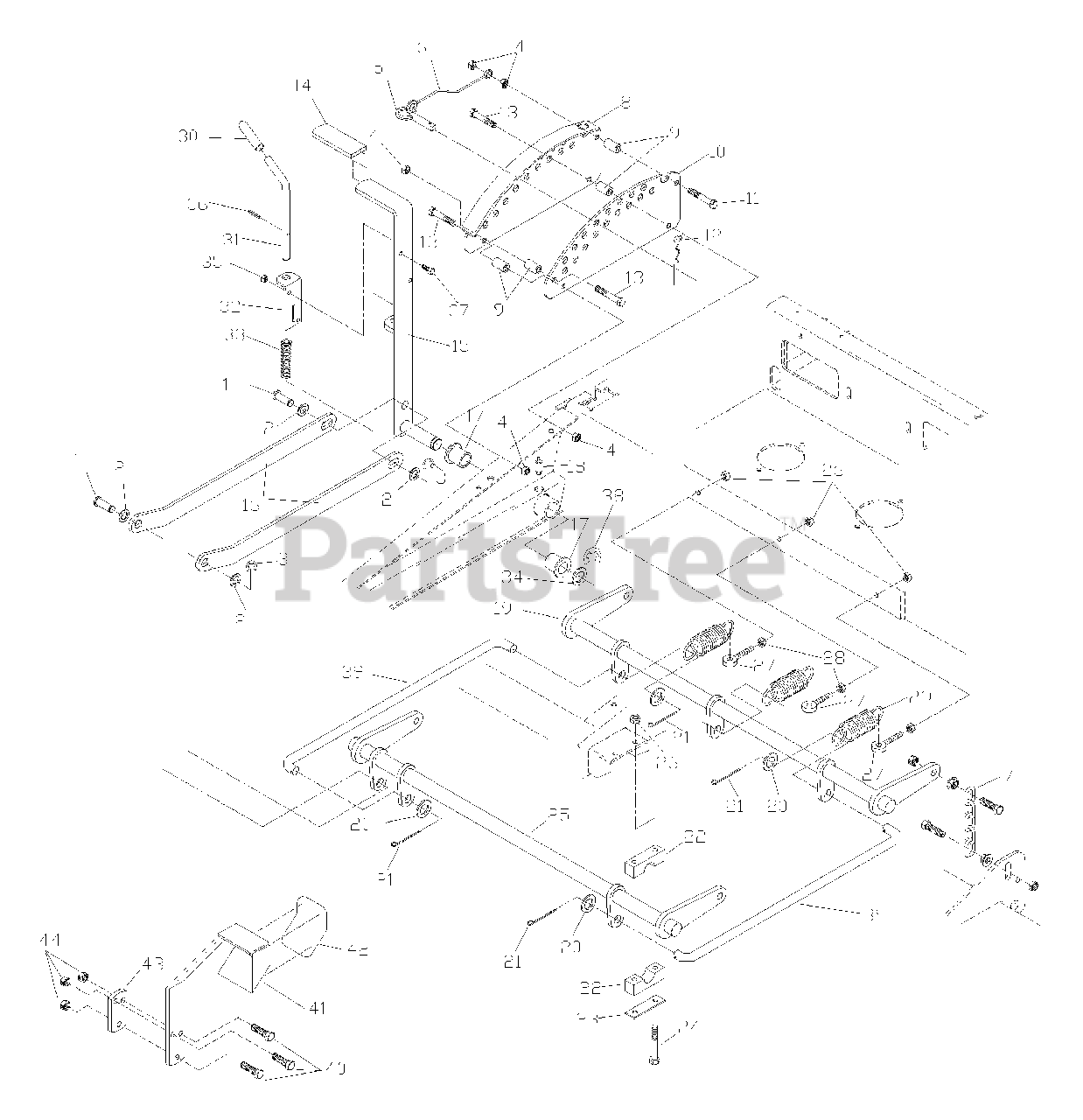

Deck Lift Assembly Parts Diagram

  • Title
1

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539991043

MACH BUSHING

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105069

5/8 E - RING

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990546

NUT 3/8C CTR LOCK

$

$

Not available

5

$21.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

7

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539104321

ADJ PLATE WLDMT

$61.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539104323

ADJ PLATE PAINTED

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990637

HCS 3/8C X 2.5

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976989

# 4 HAIR PIN

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990629

HCS 3/8C X 2.25
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

15

Husqvarna 539108322

LEVER WLDMT

$103.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105050

LIFT LINKAGE

$23.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101232

FLANGE BUSHING

$13.99

$

In Stock, Qty 7

0

18

Husqvarna 539104761

ZERK - LONG

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539108354

LIFT SHAFT, REAR

$103.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976982

5/8 SAE WASHER

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539104807

SUPPORT PLATE
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

24

Husqvarna 539991046

HCS 5/16C X 2.5

$4.99

$

In Stock, Qty 8

0

25

Husqvarna 539108355

LIFT SHAFT, FRONT

$

$

Not available

26

Husqvarna 539990184

NUT 5/16C CTR LOCK

$3.99

$

Usually ships in 3-10 days

0

27

$43.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990585

5/16C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

$3.99

$

In Stock, only 4 left!

0

$

$

Not available

32

Husqvarna 539103534

PIN MT, UPPER

$27.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539923787

MACH BUSHING

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990761

NUT 1/4C CTR LOCK

$4.99

$

In Stock, only 4 left!

0

36

Husqvarna 539101082

3/16 X 1 ROLL PIN

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101802

7/8 E - RING

$3.99

$

Usually ships in 3-10 days

0

39

$21.99

$

In Stock, only 1 left!

0

40

Husqvarna 539990655

HCS 3/8 X 1.5

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539105181

LIFT PEDAL

$

$

Not available

42

Husqvarna 539105187

ANTI-SKID PAD

$3.49

$

In Stock, only 2 left!

0

43

Husqvarna 539105184

TIGHTING PLATE

$46.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976979

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
