ZTH 6125 KA (968999166) - Husqvarna 61" Zero-Turn Mower (2000-09) Main Frame Assembly Parts Diagram

61" Zero-Turn Mower

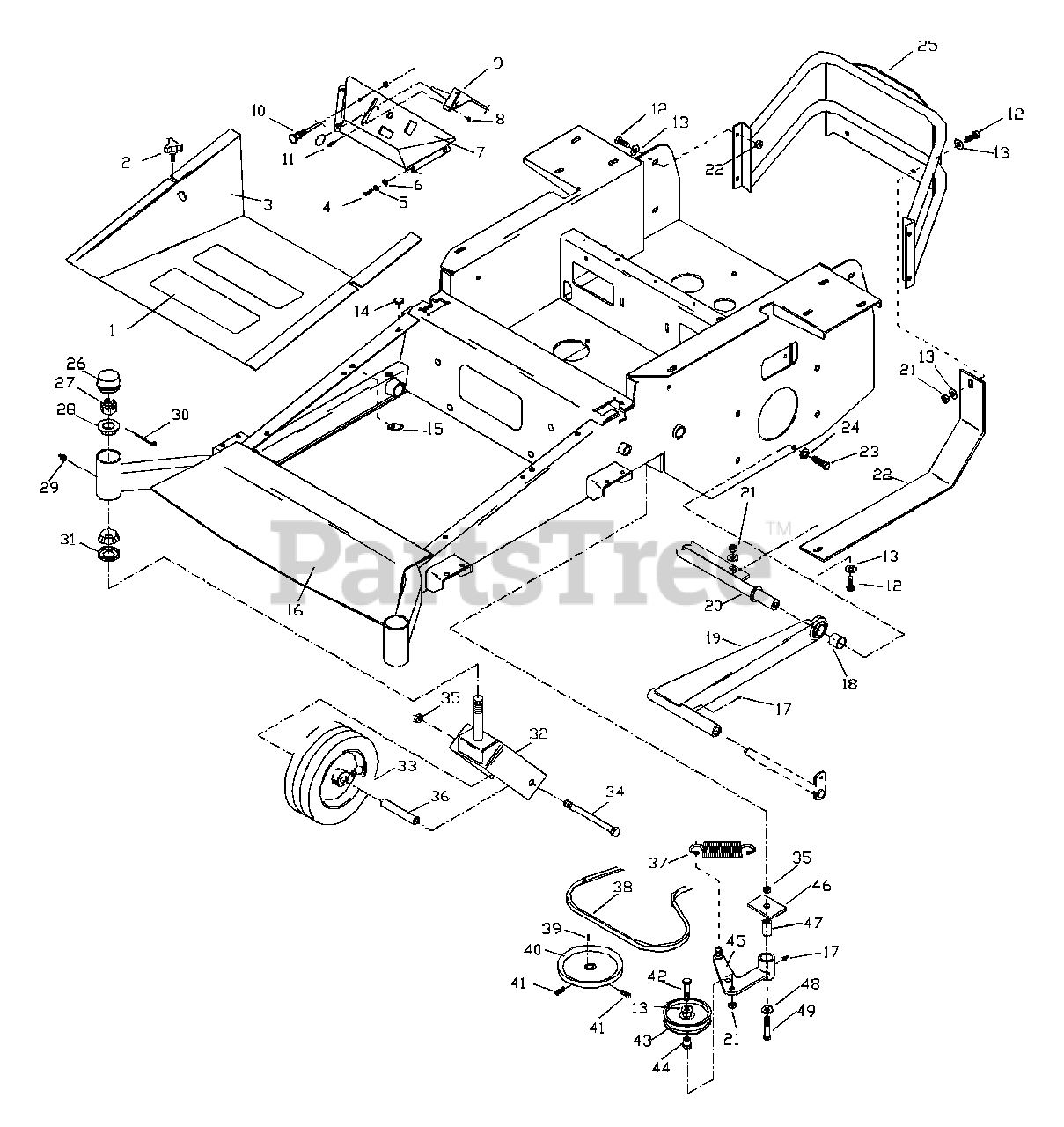

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539104411

KNOB W/ STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539104721

FOOT PLATE

$218.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990580

HCS 1/4C X 3/4"

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990052

1/4" LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990598

1/4" FLAT WASHER

$

$

Not available

7

Husqvarna 539105151

CONSOLE W/ DECAL

$

$

Not available

8

Husqvarna 539976977

# 10-24 NYLOC NUT

$

$

Not available

9

Husqvarna 539102732

THROTTLE CABLE

$

$

Not available

10

Husqvarna 539102733

CHOKE CABLE

$56.99

$

In Stock, Qty 5

0

11

Husqvarna 539990411

#10-24 X 1/2" HCS

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990563

HCS 3/8C X 1"

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

15

Husqvarna 539104763

"U" CLIP

$6.49

$

In Stock, Qty 12

0

16

Husqvarna 539105148

MAIN FRAME W/DECALS

$

$

Not available

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539104521

STRUT SPACER

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104390

STRUT

$302.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104332

CROSS SHAFT

$

$

Not available

21

Husqvarna 539990546

3/8C CENTERLOCK

$

$

Not available

22

Husqvarna 539105022

SKID PLATE

$36.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539100143

HCS 7/16C X 1"

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

25

Husqvarna 539104329

REAR GUARD

$485.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102535

CAP, GREASE
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102852

CASTLE NUT 1" C

$

$

Not available

28

Husqvarna 539102626

BEARING W/CUP

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539101474

DRIVE IN ZERK

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539102889

COTTER PIN 1/8 X 2"
(Superseded to 539124704)

$

$

Not available

31

Husqvarna 539102581

SEAL

$

$

Not available

32

Husqvarna 539104571

YOKE, CASTER

$

$

Not available

33

Husqvarna 539104572

TIRE & WHEEL ASM.

$

$

Not available

33

Husqvarna 539104573

RIM
(Superseded to 539104572)

$

$

Not available

33

Husqvarna 539102546

TIRE
(Superseded to 539104572)

$

$

Not available

33

Husqvarna 539976997

ZERK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539102484

FLANGE BEARING

$5.99

$

In Stock, only 1 left!

0

33

Husqvarna 539912234

AIR VALVE

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539102485

2.5" ROLLER BEARING

$37.99

$

In Stock, only 2 left!

0

34

Husqvarna 539102855

HCS 1/2-13 X 7.5" GD. 5

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539101331

1/2C NYLOC NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539102856

SPACER, CASTER

$18.99

$

In Stock, only 2 left!

0

37

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

38

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 10

0

39

Husqvarna 539101177

5MM X 25MM KEY SQ.

$8.99

$

In Stock, only 2 left!

0

40

Husqvarna 539101176

PULLEY

$

$

Not available

41

Husqvarna 539102717

5/16C X 5/8 SET SCREW

$3.99

$

In Stock, only 4 left!

0

42

Husqvarna 539990730

HCS 3/8C X 1.75

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

44

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

45

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102236

SUPPORT PLATE

$27.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

48

Husqvarna 539990550

1/2 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539103433

HCS 1/2C X 3.25 GD. 5

$6.99

$

In Stock, only 4 left!

0
