ZTH 6123 KOLA (968999189) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Front Deck Assembly 61" Parts Diagram

61" Zero-Turn Mower

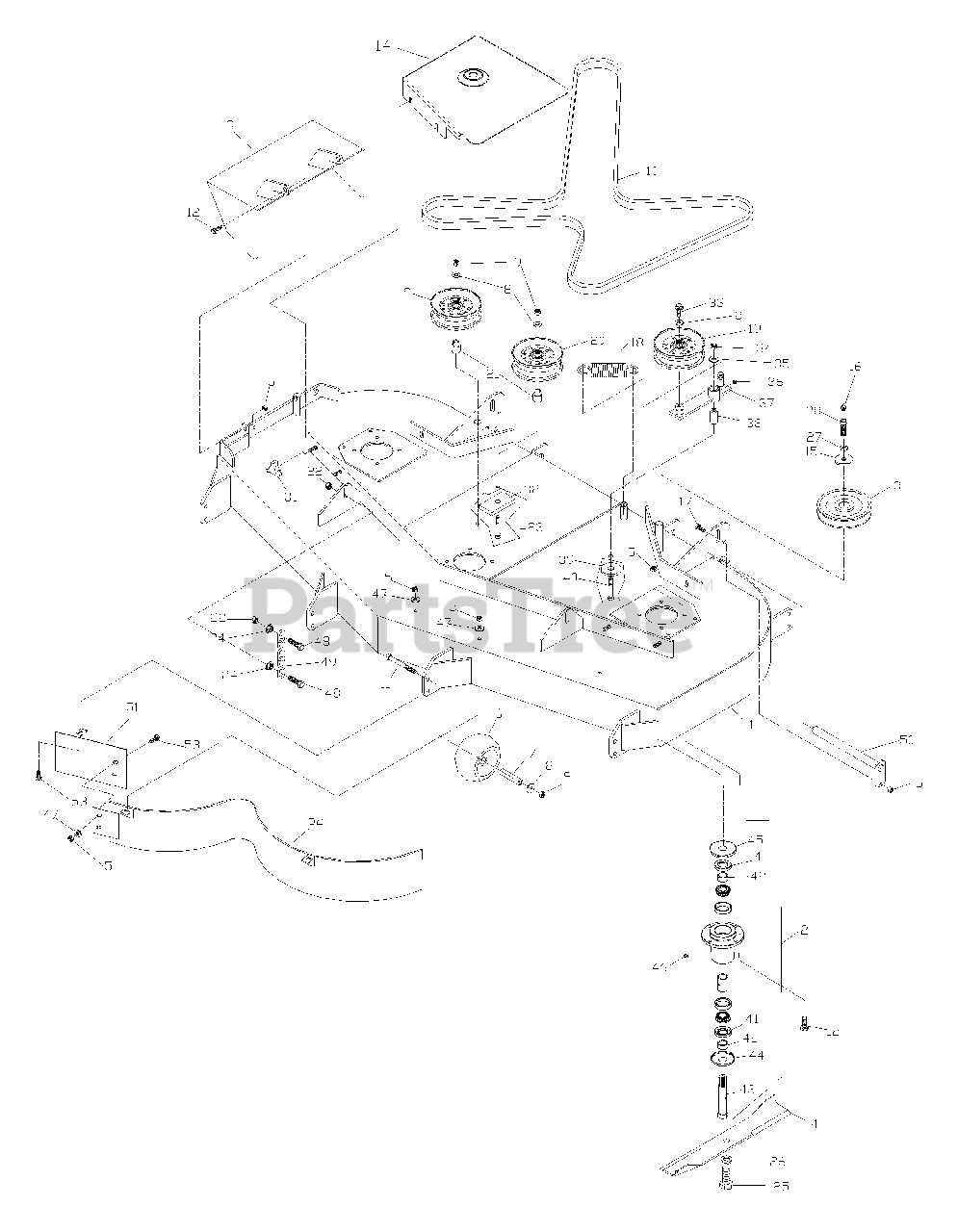

Front Deck Assembly 61" Parts Diagram

  • Title

1

Husqvarna 539105149

DECK W/DECALS
(Superseded to 539106429)

$

$

Not available

2

Husqvarna 539108773

CUTTER HOUSING ASM.
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

3

Husqvarna 539107278

PULLEY
(Superseded to 539112125)

$48.99

$

In Stock, only 2 left!

0

4

Husqvarna 539101733

BLADE

$21.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102643

ROLLER

$

$

Not available

7

Husqvarna 539102698

BUSHING

$

$

Not available

8

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

10

Husqvarna 539104336

BELT
(Superseded to 510201301)

$

$

Not available

11

Husqvarna 539102754

HCS 3/8 X 3.5

$4.99

$

In Stock, Qty 13

0

12

Husqvarna 539990627

HCS 5/16 X 1.25

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539104422

DISCHARGE CHUTE

$

$

Not available

14

Husqvarna 539108611

BELT SHIELD RT.

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539108610

BELT SHIELD LT.
(Superseded to 539108608)

Note: (NOT SHOWN)

$23.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106504

WASHER

$

$

Not available

16

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539105192

SPRING

$

$

Not available

19

Husqvarna 539103257

PULLEY 1.31

$74.99

$

In Stock, only 1 left!

0

20

Husqvarna 539103258

PULLEY 1.62

$53.99

$

In Stock, only 1 left!

0

21

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

22

Husqvarna 539990839

NUT 7/16 LOCK

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539990637

HCS 3/8 X 2.5

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102582

NUT 7/16 WHIZ

$

$

Not available

25

Husqvarna 539103299

HCS 5/8F X 1.25

$

$

Not available

26

Husqvarna 539990333

WASHER 5/8 LOCK

$1.99

$

In Stock, Qty 6

0

27

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

28

Husqvarna 539108766

HCS 7/16F X 1.5, SPECIAL
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

31

Husqvarna 539102070

KNOB

$7.49

$

In Stock, Qty 9

0

32

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

33

Husqvarna 539990582

HCS 3/8 X 1.0 SERR.

$

$

Not available

34

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539103230

IDLER ARM

$

$

Not available

38

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

39

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

40

Husqvarna 539103433

HCS 1/2 X 3.25

$6.99

$

In Stock, only 4 left!

0

41

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

42

Husqvarna 539108758

SPACER

$

$

Not available

43

Husqvarna 539108760

MINI SPINDLE
(Superseded to 539112122)

$

$

Not available

44

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

45

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

46

Husqvarna 539977326

GREASE POPET

$13.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

48

Husqvarna 539101175

HCS 7/16 X 1.5

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

51

Husqvarna 539105461

BAFFLE , CENTER

$97.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539105465

BAFFLE, MAIN

$

$

Not available

53

Husqvarna 539990799

RHSNB 5/16 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0
