ZTH 6123 KOLA (968999189) - Husqvarna 61" Zero-Turn Mower (2006-04) Motion Control Assembly Parts Diagram

61" Zero-Turn Mower

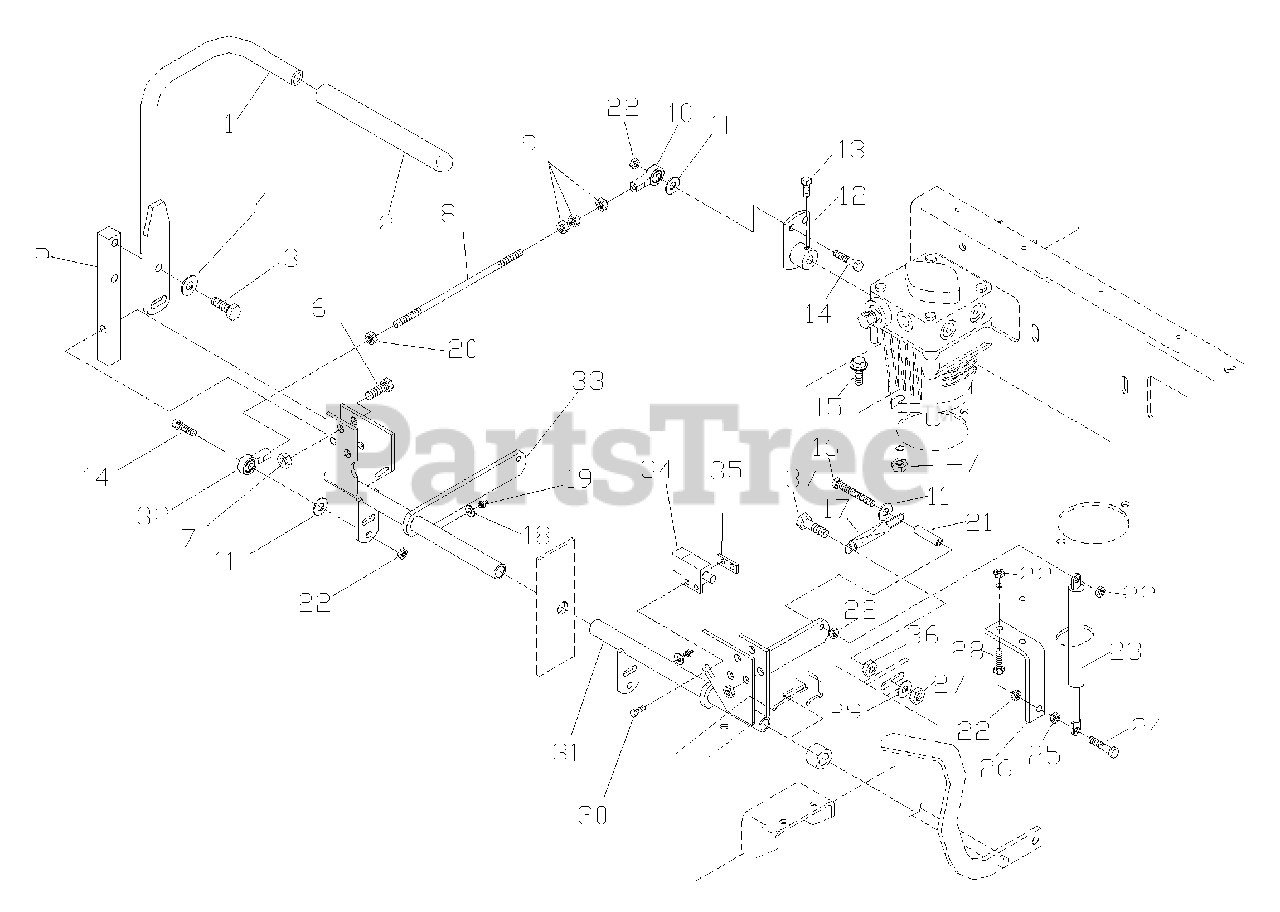

Motion Control Assembly Parts Diagram

  • Title
1

Husqvarna 539104190

CONT. LEVER

$

$

Not available

$

$

Not available

3

Husqvarna 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102593

3/8 SPRING WASHER

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539102809

ARM CONT SHAFT

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539990546

NUT 3/8C CTR LOCK

$

$

Not available

8

Husqvarna 539105279

PUMP CONTROL LINK

$21.99

$

Usually ships in 3-10 days

0

9

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102590

BALL JOINT RT

$27.99

$

In Stock, only 1 left!

0

11

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539104382

PUMP LEVER

$

$

Not available

13

Husqvarna 539105079

5/16C X 5/8 "V" POINT

$

$

Not available

14

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990582

HCS 3/8C X 1

$

$

Not available

16

Husqvarna 539991055

TAPBOLT 5/16C X 2.25

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539103297

REV DETENT SPRING

$8.99

$

In Stock, only 2 left!

0

$0.99

$

In Stock, only 2 left!

0

19

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539991073

NUT 5/16F LH

$3.99

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990184

5/16C CTR LOCK

$3.99

$

Usually ships in 3-10 days

0

23

$66.99

$

In Stock, only 3 left!

0

24

Husqvarna 539990627

HCS 5/16C X 1.25

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990585

5/16C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539105023

BRACKET "L"

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976979

3/8C NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

31

Husqvarna 539104363

CONTROL WLDMT LEFT

$145.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102591

BALL JOINT LH

$24.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539104364

CONTROL WLDMT RIGHT

$145.99

$

Usually ships in 3-10 days

0

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

36

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

38

Husqvarna 539102685

HOSE CLAMP

$4.99

$

Usually ships in 3-10 days

0
