ZTH 6123 KAA (968999203) - Husqvarna 61" Zero-Turn Mower (2006-04) Standard Seat Assembly Parts Diagram

61" Zero-Turn Mower

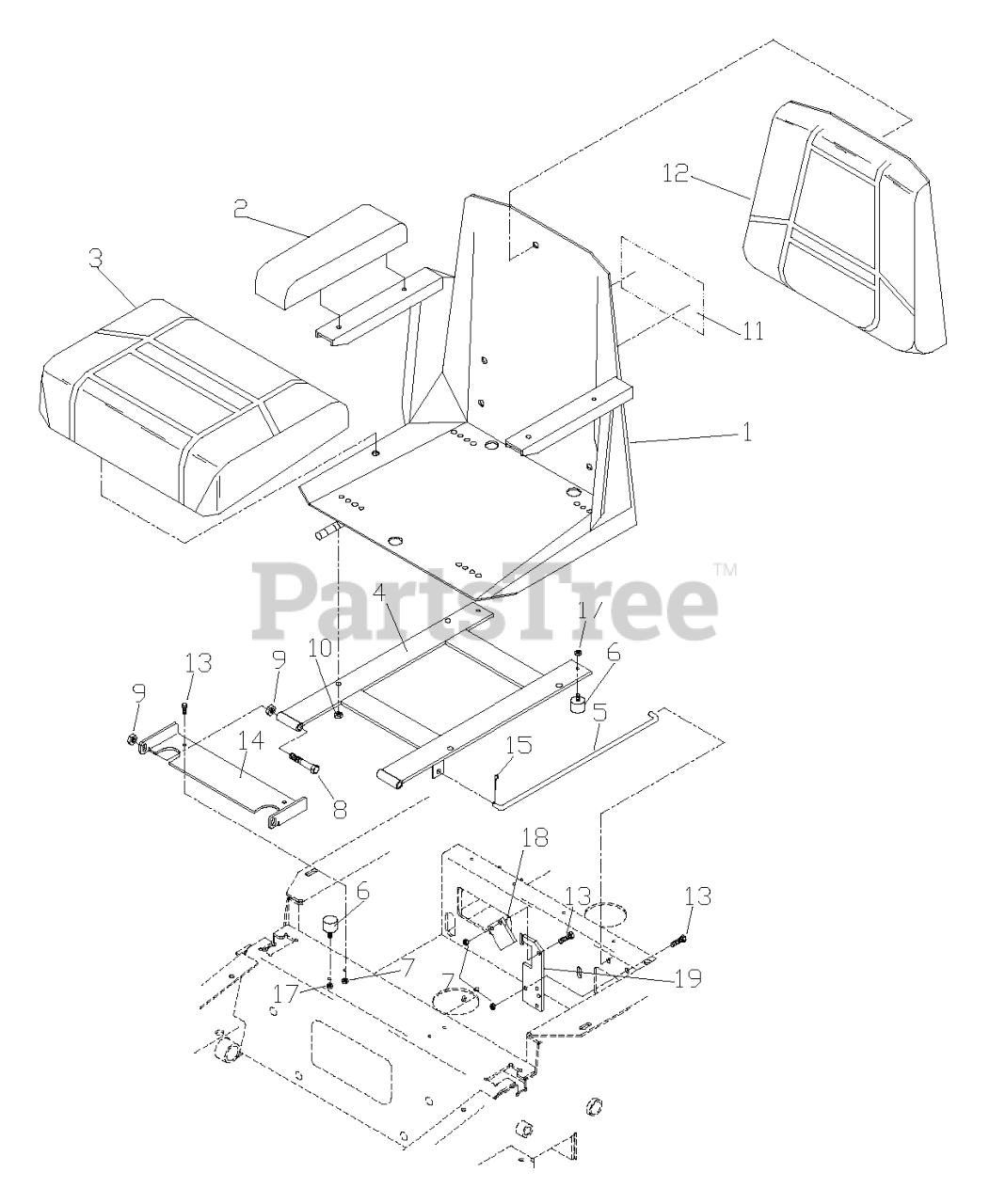

Standard Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539104584

SEAT, COMPLETE
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539105294

SEAT RAILS

Note: (NOT SHOWN)

$

$

Not available

2

Husqvarna 539102844

ARM REST CUSHIONS/PAIR

$194.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102539

SEAT CUSHION W/SWITCH

$

$

Not available

4

Husqvarna 539105283

SEAT MOUNT
(Superseded to 539105951)

$

$

Not available

5

Husqvarna 539104525

SEAT ROD

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

9

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

10

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

12

Husqvarna 539104565

SEAT, BACK CUSHION

$194.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105224

SEAT BRKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539105544

SEAT RAILS

Note: (NOT SHOWN)

$

$

Not available

17

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 539102917

SEAT LATCH

$

$

Not available

19

Husqvarna 539105962

SEAT LATCH BASE

$

$

Not available

Husqvarna 539102685

LOOM CLIP

Note: (NOT SHOWN)

$4.99

$

Usually ships in 3-10 days

0
