ZTH 6123 (968999203) - Husqvarna 61" Zero-Turn Mower (2002-10) 61"/155CM CUTTING DECK Parts Diagram

61" Zero-Turn Mower

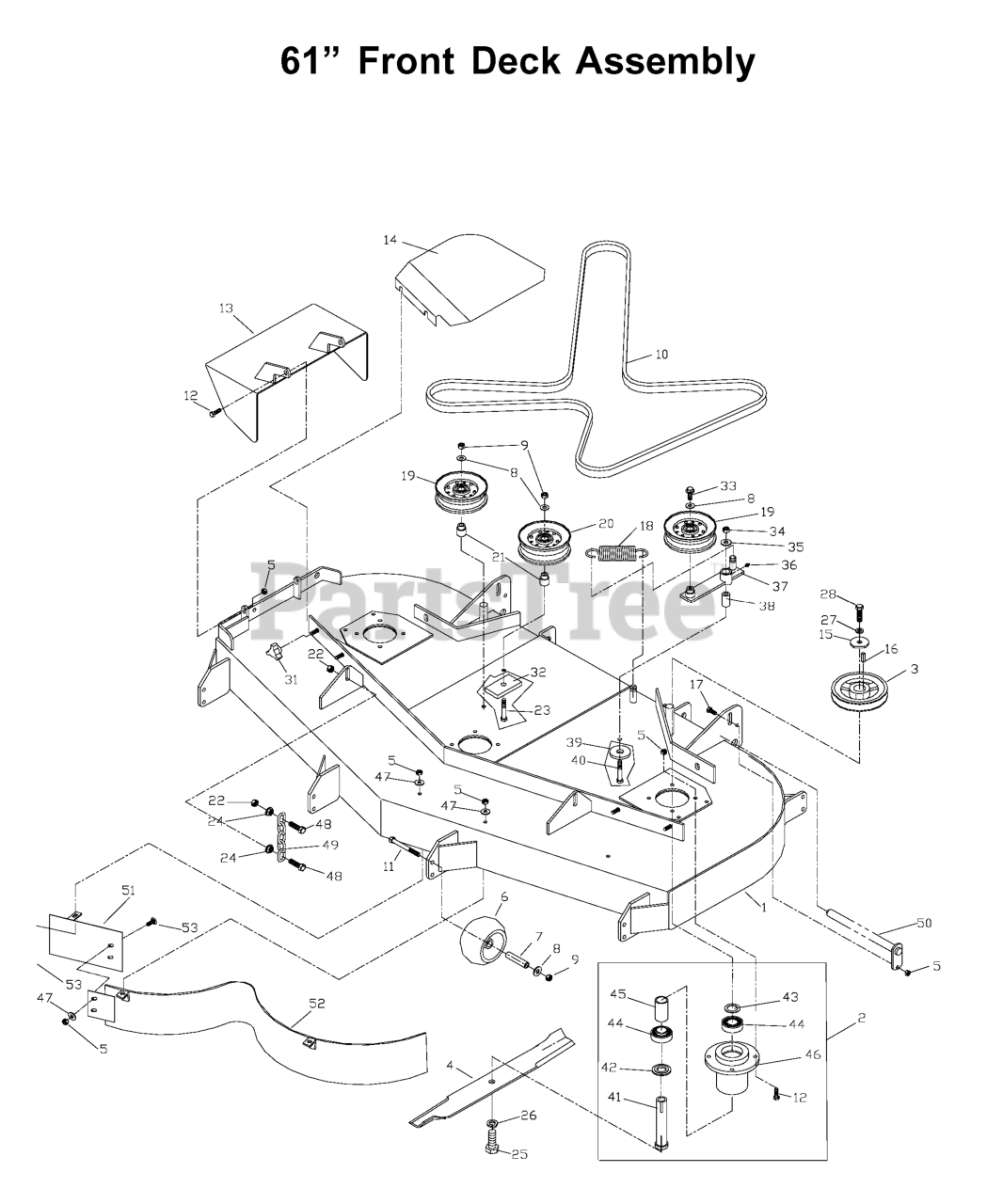

61"/155CM CUTTING DECK Parts Diagram

  • Title

28

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

1

Husqvarna 539105149

DECK W/DECALS 61" HUS
(Superseded to 539106429)

$

$

Not available

42

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$10.99

$

In Stock, only 3 left!

0

51

Husqvarna 539105461

CENTER BAFFLE - 61

$97.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

9

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

23

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539103230

IDLER ARM

$

$

Not available

7

Husqvarna 539102698

BUSHING

$

$

Not available

14

Husqvarna 539105102

61 B.S.PAINTED, RT

$193.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

21

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

5

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104420

PULLEY

$74.99

$

In Stock, Qty 5

0

32

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

49

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

20

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

6

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

40

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

45

Husqvarna 539102676

SPACER

$13.99

$

In Stock, only 4 left!

0

44

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

38

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539104402

SPINDLE

$

$

Not available

11

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

4

Husqvarna 539101733

BLADE OEM 21" (61" DECK)

$21.99

$

In Stock, Qty 20+

0

13

Husqvarna 539104422

DISCHARGE CHUTE

$

$

Not available

10

Husqvarna 539104336

DECK BELT 61
(Superseded to 510201301)

$

$

Not available

18

Husqvarna 539105192

DECK SPRING

$

$

Not available

53

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

539105103

Husqvarna 539105103

61 B.S.PAINTED, LT ORANGE

$193.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

39

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

26

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

22

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

36

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

8

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 539104403

HOUSING ASM.
(Superseded to 539107408)

$512.99

$

In Stock, only 1 left!

0

16

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

43

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$5.99

$

In Stock, only 3 left!

0

47

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 539105465

MAIN BAFFLE - 61" BLK

$

$

Not available

50

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

15

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

31

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0
