ZTH 5225 KAA (968999185) - Husqvarna 52" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Engine Assembly (Kawasaki) Parts Diagram

52" Zero-Turn Mower

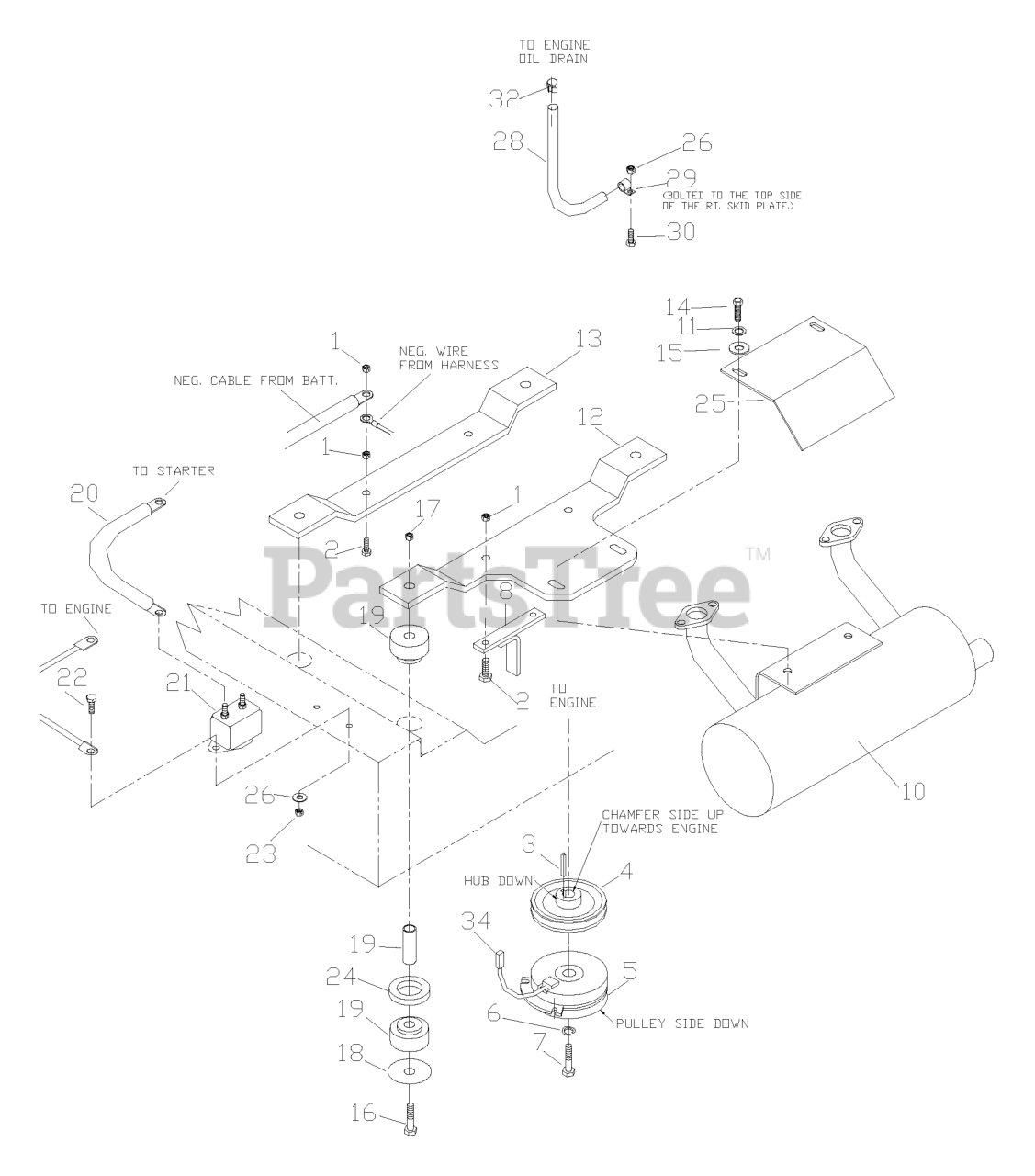

Engine Assembly (Kawasaki) Parts Diagram

  • Title
1

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 539100152

KEY 1/4" SQ X 1 7/8"

$3.99

$

In Stock, Qty 5

0

$

$

Not available

5

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

6

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

7

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

8

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

9

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539105897

MUFFLER KAWASAKI GEN II

$

$

Not available

11

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539105410

REAR ENGINE MOUNT

$61.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105025

ENGINE MOUNT

$

$

Not available

14

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

19

$

$

Not available

20

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

21

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

24

Husqvarna 539105034

ISOLATOR SPACER

$

$

Not available

25

Husqvarna 539105968

MUFFLER GUARD

$66.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

27

Husqvarna 539105409

GROUND WIRE (KAW)

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105395

OIL DRAIN HOSE (KAW)

$

$

Not available

29

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

$56.99

$

In Stock, Qty 5

0

$

$

Not available

33

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539105637

CLUTCH HARNESS

$26.99

$

In Stock, Qty 6

0
