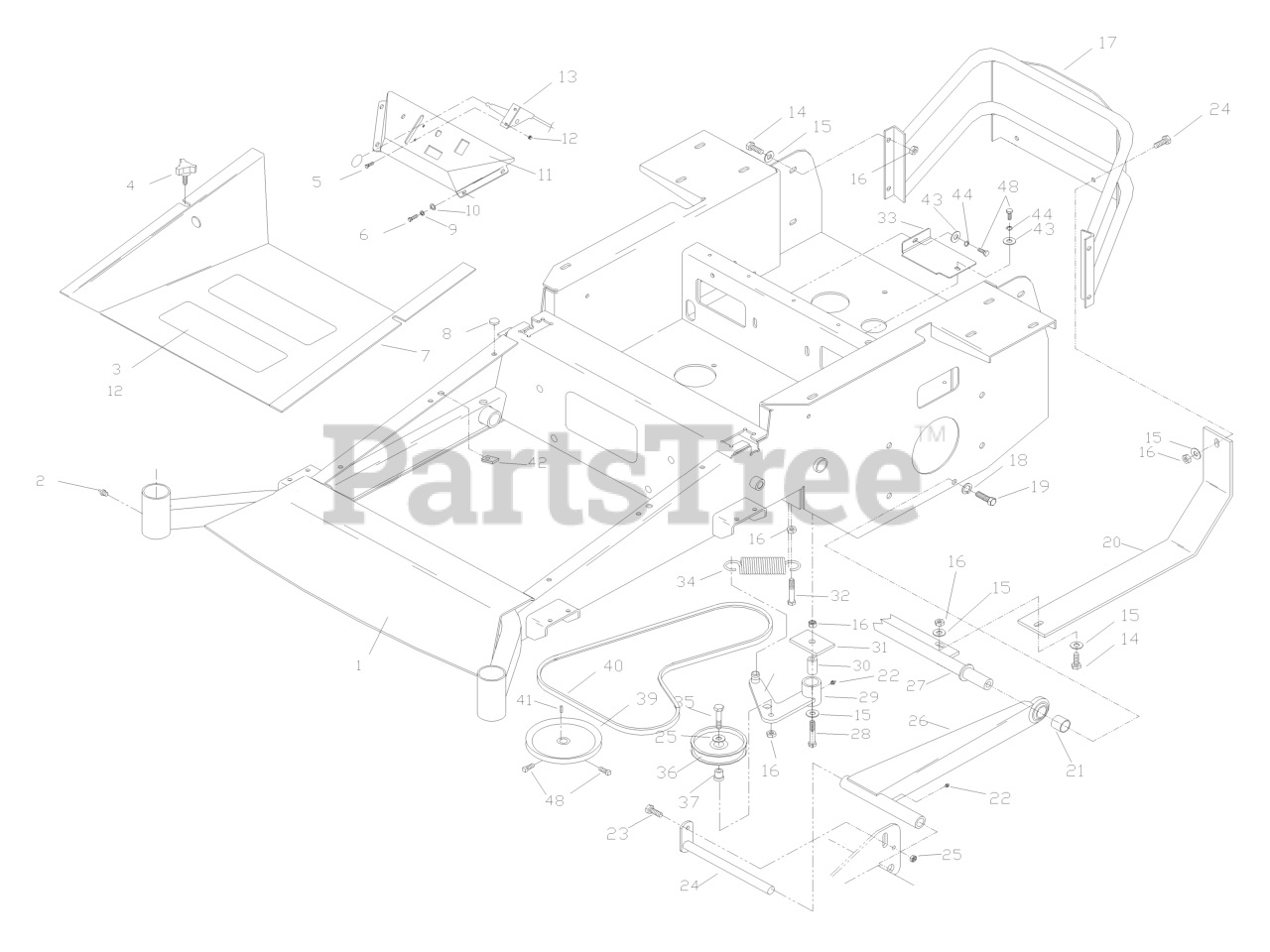

ZTH 5225 KAA (968999185) - Husqvarna 52" Zero-Turn Mower (2002-10) Main Frame Assembly Parts Diagram

52" Zero-Turn Mower

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539105492

MAIN FRAME W/DECALS

$

$

Not available

1

Husqvarna 539105886

FRAME 52" & 61"

$

$

Not available

2

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

In Stock, Qty 12

0

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539104721

FOOT PLATE WIDMT

$218.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

9

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

11

Husqvarna 539105151

CONSOLE W/DECALS

$

$

Not available

12

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

13

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

14

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

17

Husqvarna 539104329

REAR GUARD

$485.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

19

Husqvarna 539105905

HEX SCREW 7/16-14 X 1 GR8

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105022

SKID PLATE

$36.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104521

SPACER, STRUT

Note: Qty of 2 For 52" & 61 Models

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102619

PIVOT PIN

Note: Qty of 2 For 52" & 61 Models

$56.99

$

In Stock, only 3 left!

0

25

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539104390

STRUT

Note: Qty of 2 For 52" & 61 Models

$319.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105478

CROSS SHAFT WLD 72

$78.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104332

CROSS SHAFT WLDMT

$

$

Not available

28

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

31

Husqvarna 539102236

PAD

$

$

Not available

32

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539105716

IDLER COVER

$

$

Not available

34

Husqvarna 539103256

SPRING

$13.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

37

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

38

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 539101176

PULLEY

$

$

Not available

40

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 9

0

41

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 1 left!

0

42

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 17

0

43

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539105577

STRUT WELDMENT

Note: (NOT SHOWN); Specific to 72" Models Only.

$218.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539105481

STRUT PIN RH

Note: (NOT SHOWN); Specific to 72" Models Only.

$17.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539105484

STRUT SPACER - 72"

Note: (NOT SHOWN): Specific to 72" Models Only.

$

$

Not available

48

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0
