ZTH 5223 KOLA (968999183) - Husqvarna 52" Zero-Turn Mower (2001-11) Liquid Cooled Kohler Engine Assembly Parts Diagram

52" Zero-Turn Mower

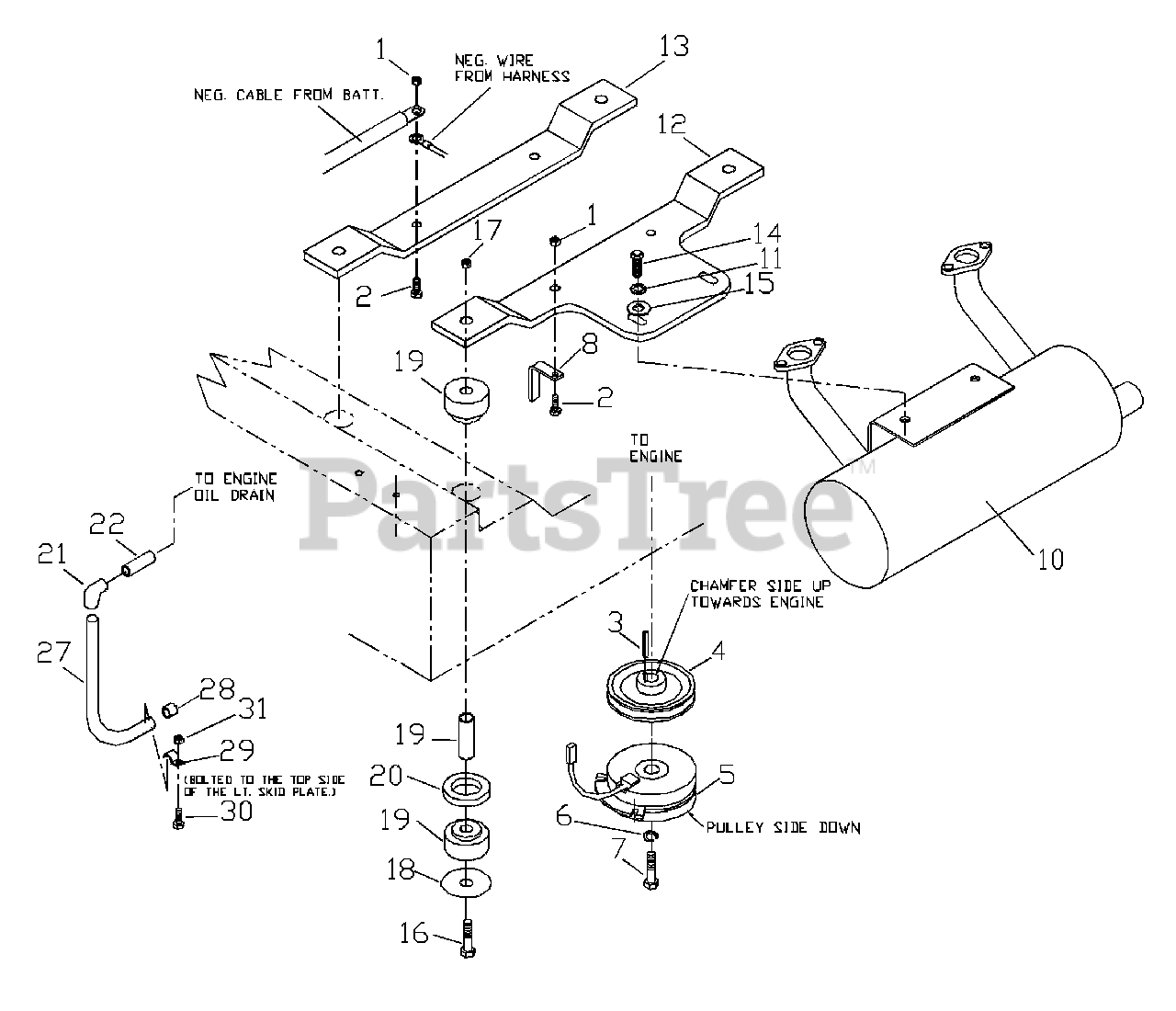

Liquid Cooled Kohler Engine Assembly Parts Diagram

  • Title

1

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990669

HCS 5/16 X 1.75
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 539100152

KEY 1/4 SQ.

$3.99

$

In Stock, Qty 5

0

4

Husqvarna 539106057

PULLEY

$

$

Not available

5

Husqvarna 539105406

CLUTCH

$

$

Not available

6

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

7

Husqvarna 539991120

HCS 7/16F X 2.5

$6.99

$

In Stock, Qty 8

0

8

Husqvarna 539103251

CLUTCH TIE DOWN

$

$

Not available

9

Husqvarna 539105300

KOHLER PIGTAIL L/C

Note: (NOT SHOWN)

$18.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539105896

MUFFLER

$

$

Not available

11

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539105410

ENGINE MOUNT

$61.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105025

ENGINE MOUNT

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539103433

HCS 1/2 X 3.25

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539104959

WASHER

$15.99

$

In Stock, only 1 left!

0

19

Husqvarna 539104958

ISOLATOR

$

$

Not available

20

Husqvarna 539105034

SPACER

$

$

Not available

21

Husqvarna 539105072

ELBOW

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105073

3/8 NPT PIPE

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539105246

WATER TEMP. GAUGE

Note: NOT SHOWN. LOCATION OF THIS ITEM ON THE UNIT IS AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$80.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539105248

GAUGE BRACKET

Note: NOT SHOWN. LOCATION OF THIS ITEM ON THE UNIT IS AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$

$

Not available

25

Husqvarna 539105247

GAUGE HARNESS

Note: NOT SHOWN. LOCATION OF THIS ITEM ON THE UNIT IS AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$

$

Not available

26

Husqvarna 539976937

HCS 5/16 X 2.0

Note: NOT SHOWN. LOCATION OF THIS ITEM ON THE UNIT IS AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 539990580

HCS 1/4 X .750

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990761

NUT 1/4 CTR. LOCK

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 539102733

CHOKE CONTROL

Note: (NOT SHOWN)

$56.99

$

In Stock, Qty 5

0

33

Husqvarna 539102685

LOOM CLIP

Note: NOT SHOWN. LOCATION OF THIS ITEM ON THE UNIT IS AT THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME

$4.99

$

Usually ships in 3-10 days

0
