ZTH 5223 KAA (968999181) - Husqvarna 52" Zero-Turn Mower (2002-10) EFI Fuel Assembly Parts Diagram

52" Zero-Turn Mower

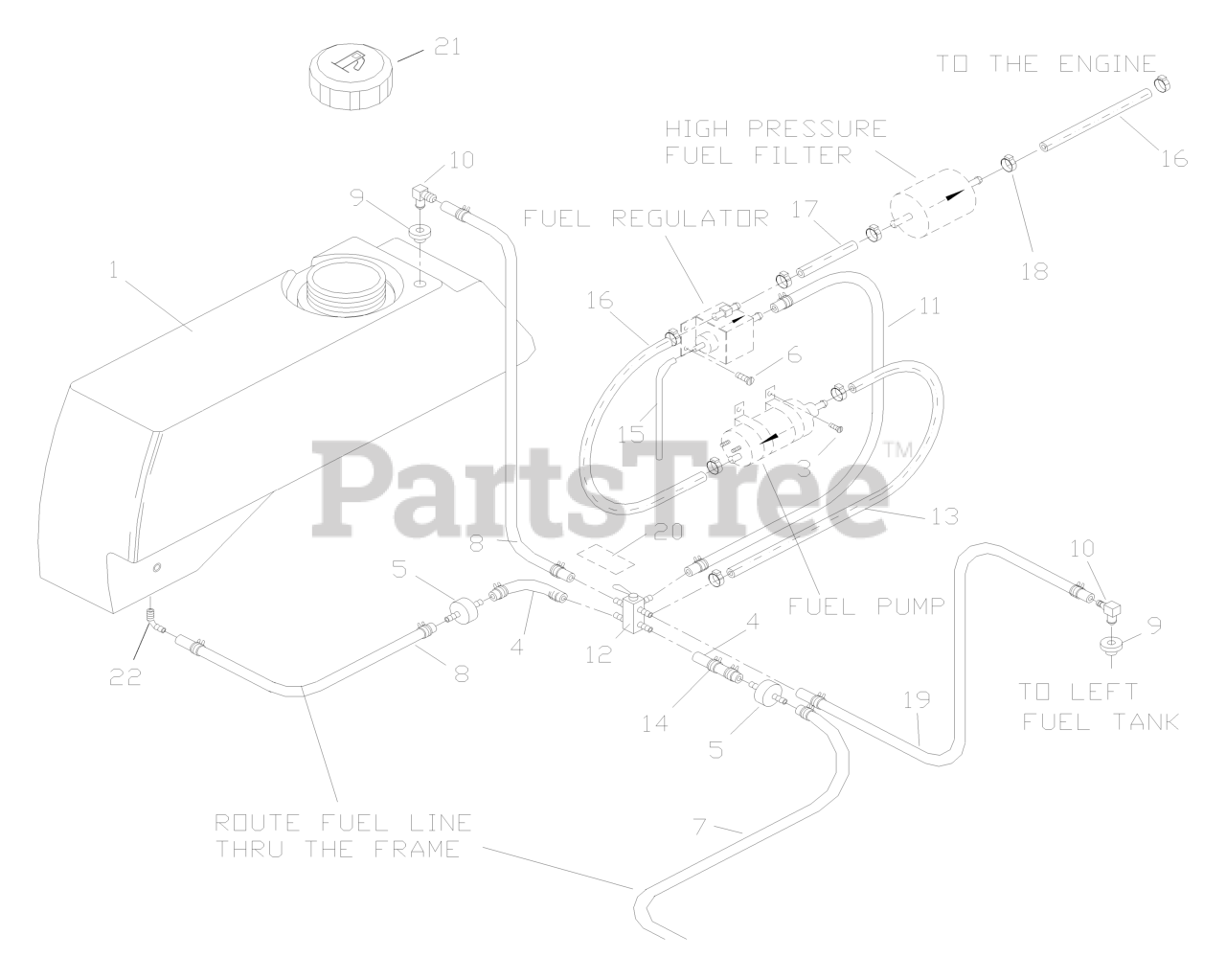

EFI Fuel Assembly Parts Diagram

  • Title
1

Husqvarna 539105330

FUEL TANK DIESEL RT

$169.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105329

FUEL TANK DIESEL LT

$205.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539977351

GAS LINE 3 1/2"

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539914359

FUEL FILTER

$

$

Not available

6

Husqvarna 539105532

HEX CAP SCREW 1/4

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539105531

FUEL LINE 29.5"
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 539105526

FUEL LINE 18"
(Superseded to 587044818)

$10.99

$

In Stock, only 2 left!

0

9

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105331

FUEL VALVE

$103.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105398

EFI HOSE - 18"

$

$

Not available

14

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

15

$

$

Not available

16

Husqvarna 539105399

EFI HOSE - 8"

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105400

EFI HOSE - 4"

$26.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 539105530

FUEL LINE 34"

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105334

FUEL VALVE DECAL

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 539102650

HOSE BARB 90 DEGREE

Note: Items 13, 16, and 17 are high pressure lines.

$

$

Not available
