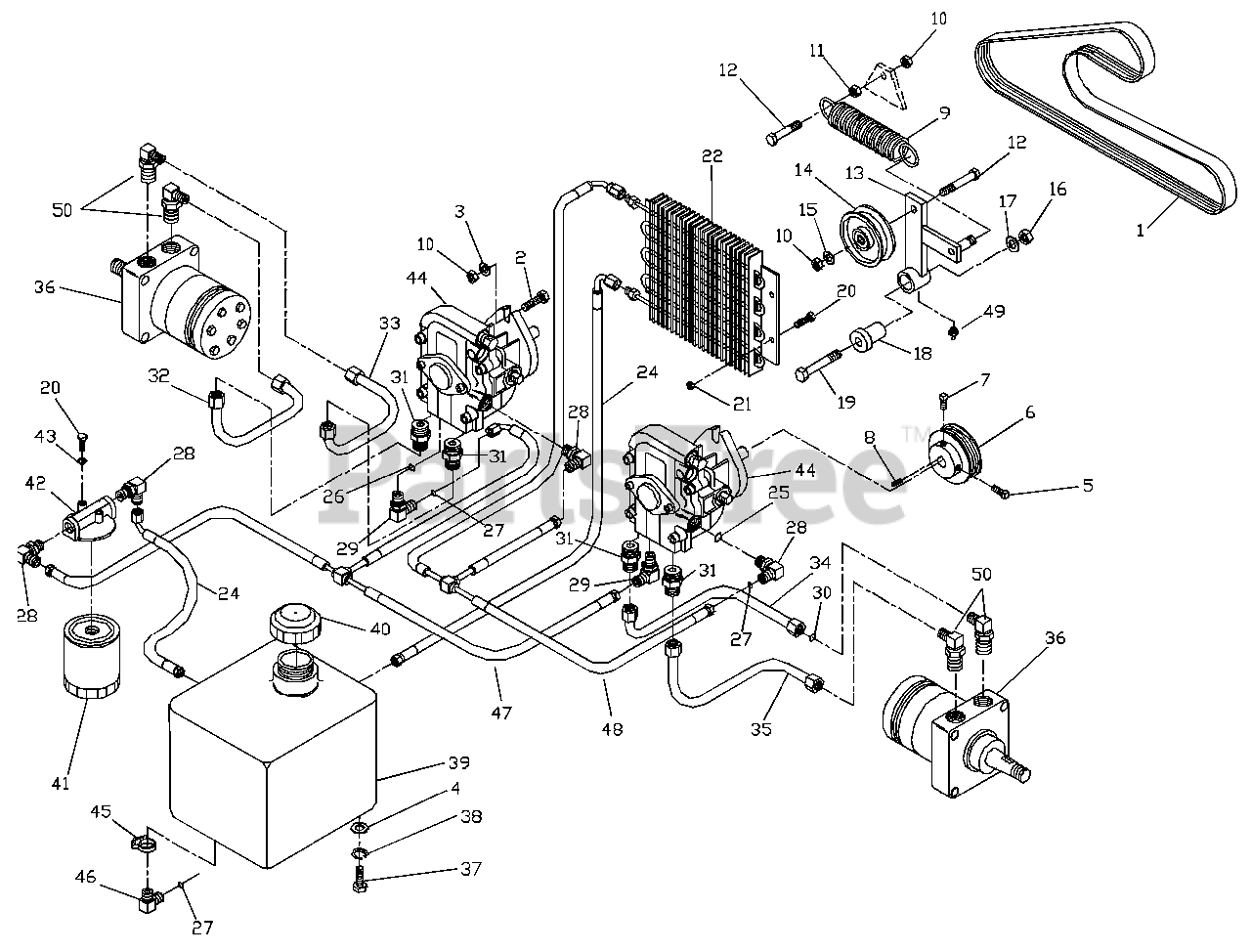

ZTH 5223 A (968999153) - Husqvarna 52" Zero-Turn Mower (2000-06) Hydraulic Assembly Parts Diagram

52" Zero-Turn Mower

Hydraulic Assembly Parts Diagram

  • Title

1

Husqvarna 539102442

PUMP DRIVE BELT

$

$

Not available

2

Husqvarna 539976941

3/8C X 1 1/4 HEX CAP SCREW

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539102716

5/16C X 1 SQ HEAD SET SCREW

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 539102437

PUMP PULLEY

$

$

Not available

7

Husqvarna 539102749

5/16C X 3/4 SQ HEAD SET SCREW

$0.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101177

KEY, 5MM SQ X 25MM

$8.99

$

In Stock, only 2 left!

0

9

Husqvarna 539102666

SPRING

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990546

3/8C CENTERLOCK NUT

$

$

Not available

11

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990730

3/8C X 1 3/4 HEX CAP SCREW

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102662

IDLER ARM

$

$

Not available

14

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 4 left!

0

15

Husqvarna 539990122

3/8 SAE FLAT WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539101331

1/2C NYLOC NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990550

1/2 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101231

IDLER BUSHING

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101572

1/2C X 3 HEX CAP SCREW

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 539990072

1/4C X 5/8 HEX CAP SCREW

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 539990761

1/4C CENTERLOCK NUT

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 539101163

COOLER

$

$

Not available

23

Husqvarna 539103115

'O' RING

$

$

Not available

24

Husqvarna 539101244

3/8 HYDRAULIC HOSE 15 1/2" 90

$

$

Not available

25

Husqvarna 539103116

'O' RING

$

$

Not available

26

Husqvarna 539103117

'O' RING

$

$

Not available

27

Husqvarna 539103118

'O' RING

$

$

Not available

28

Husqvarna 539101238

90 ELBOW

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539101234

90 ELBOW

$

$

Not available

30

Husqvarna 539103119

'O' RING

$4.99

$

In Stock, only 3 left!

0

31

Husqvarna 539101237

STRAIGHT FITTING

$12.99

$

In Stock, only 2 left!

0

32

Husqvarna 539103521

#1 TUBE

$23.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539103522

#2 TUBE

$

$

Not available

34

Husqvarna 539103523

#3 TUBE

$

$

Not available

35

Husqvarna 539103524

#4 TUBE

$

$

Not available

36

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

37

Husqvarna 539976934

5/16C X 3/4 HEX CAP SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 539990187

5/16 LOCK WASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

39

Husqvarna 539102870

HYDRAULIC TANK W/FITTINGS

$207.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101202

HYDRAULIC TANK CAP

$24.99

$

In Stock, only 1 left!

0

41

Husqvarna 539102606

HYDRAULIC OIL FILTER

$44.99

$

In Stock, Qty 8

0

42

Husqvarna 539101165

FILTER HEAD

$

$

Not available

43

Husqvarna 539990052

1/4 LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539101111

HYDRAULIC PUMP

$1821.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539102877

CLAMP

$

$

Not available

46

Husqvarna 539102881

90 DEG. FITTING

$

$

Not available

47

Husqvarna 539102476

TEE HOSE ASSY

$

$

Not available

48

Husqvarna 539102475

TEE HOSE ASSY

$

$

Not available

49

Husqvarna 539976998

1/4-28 ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

50

Husqvarna 539103526

FITTING, 90 DEGREE

$37.99

$

Usually ships in 3-10 days

0
