ZTH 5221 KAA (968999180) - Husqvarna 52" Zero-Turn Mower (2006-04) Park Brake Assembly Parts Diagram

52" Zero-Turn Mower

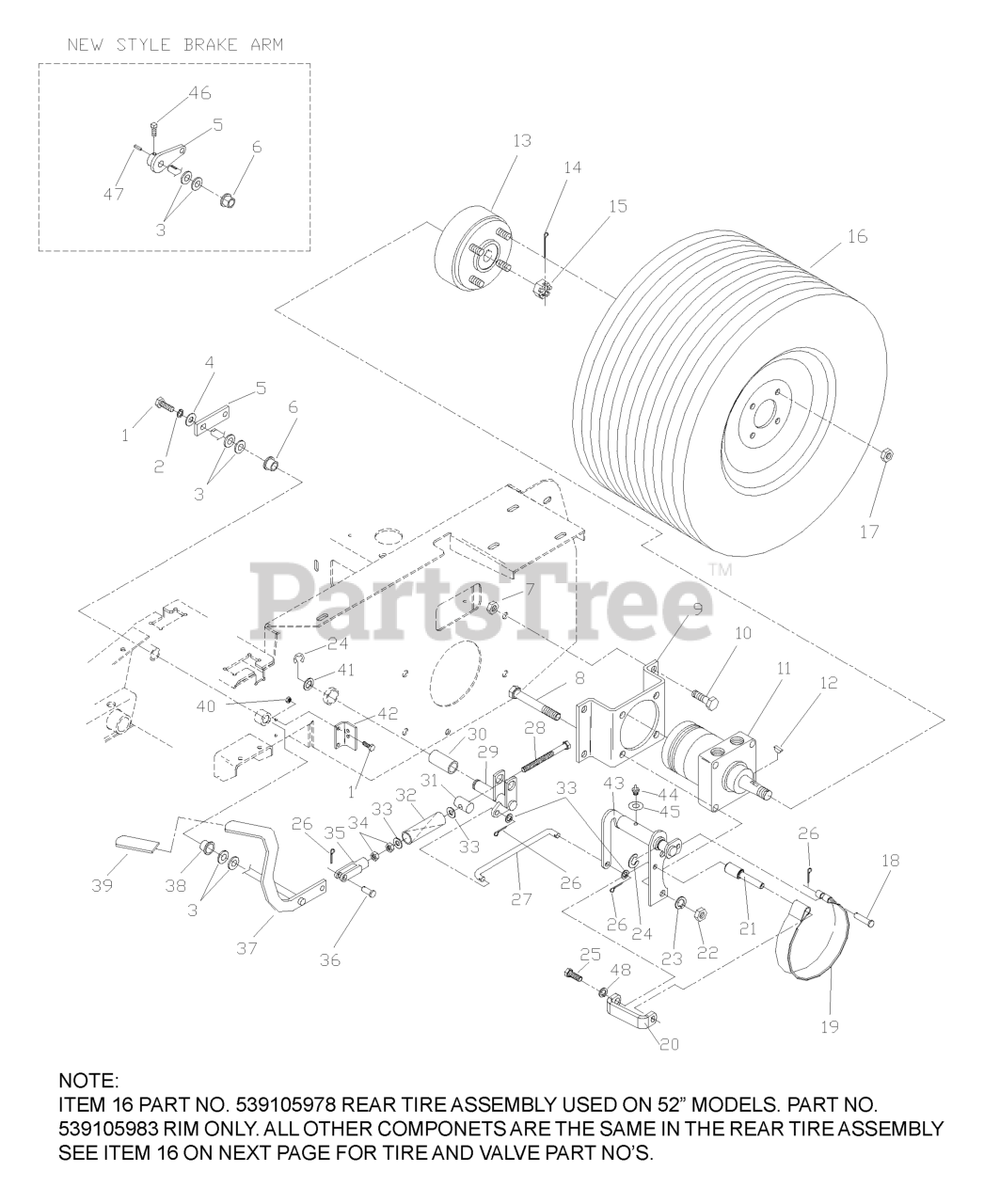

Park Brake Assembly Parts Diagram

  • Title
1

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

5

Husqvarna 539103576

ARM, PARK BRAKE

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106523

BRAKE ARM WELDMENT

Note: (NEW STYLE)

$26.99

$

Usually ships in 3-10 days

0

$

$

Not available

7

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

9

Husqvarna 539104327

MOTOR STANDOFF - PAINTED

$84.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104417

MB WHEEL MOTOR

$1092.99

$

Usually ships in 3-10 days

0

11

$424.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105278

WOODRUFF KEY

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102415

HUB W/BRAKE DRUM

$

$

Not available

14

Husqvarna 539990297

COTTER PIN

$

$

Not available

15

Husqvarna 539105277

CASTLE-NUT

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105486

WHEEL/TIRE.ASM.24X12-12.SILVER

Note: (61" & 72" MODELS)

$433.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105978

REAR TIRE/WHEEL ASM

$

$

Not available

16

Husqvarna 539105152

TIRE.24X12-12.TURF.MASTER

$278.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$182.99

$

In Stock, only 1 left!

0

16

Husqvarna 539105983

RIM 0 OFFSET 8.5" WIDE

$

$

Not available

16

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

17

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

18

Husqvarna 539102455

CLEVIS PIN, 3/8 X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102822

BRAKE BAND

$

$

Not available

20

Husqvarna 539106793

BRAKE SUPPORT BRACKET

Note: AFTER 03/2002

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105070

HCS 3/8 X 3 GD.8

$0.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106794

BRAKE BAND PIVOT

Note: AFTER 03/2002

$46.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

23

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106791

HEX BOLT 3/8 X 1"

Note: AFTER 03/2002 TORQUE TO 46 FT. LBS.

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

26

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 539105303

BRAKE LINKAGE, LT.

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105302

BRAKE LINKAGE, RT.

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104984

HCS 3/8F X SPECIAL

$

$

Not available

29

$48.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105044

BRONZE BEARING

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539102821

TRUNION PIN

$5.99

$

Usually ships in 3-10 days

0

$13.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

34

$4.99

$

In Stock, Qty 16

0

35

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

36

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

37

Husqvarna 539104351

BRAKE LEVER WIDMT

$

$

Not available

37

Husqvarna 539106526

BRAKE ARM

Note: (NEW STYLE)

$84.99

$

Usually ships in 3-10 days

0

38

$

$

Not available

39

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

40

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

Note: (FOR OLDER UNITS)

$4.99

$

In Stock, only 4 left!

0

41

$3.99

$

In Stock, Qty 6

0

42

Husqvarna 539105029

BRACKET

Note: (FOR OLDER UNITS)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104346

LT.BRAKE WLDMT

$145.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104347

RT.BRAKE WLDMT

$66.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, only 2 left!

0

46

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

Note: 5/16 X 625

$3.99

$

In Stock, only 4 left!

0

$

$

Not available

48

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0
